(18) Lavex 12-Gallon, 500 PSI Carpet Extractor Lavex 12-Gallon, 500 PSI Carpet Extractor (7)
2.0 Grounding Instructions
DANGER: IMPROPER INSTALLATION OF THE
GROUNDING PLUG CAN RESULT IN A RISK OF
ELECTRIC SHOCK!
This product must be grounded. In the event of an
electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire with
an appropriate grounding plug. The plug must be
plugged into an outlet that is installed properly and
grounded in accordance with all local codes and ordinances.
Check with a qualied electrician or serviceman if the grounding instructions are not completely
understood, or if in doubt as to whether the product is grounded properly. DO NOT modify
the plug provided. If it will not t into the outlet, have a proper outlet installed by a qualied
electrician.

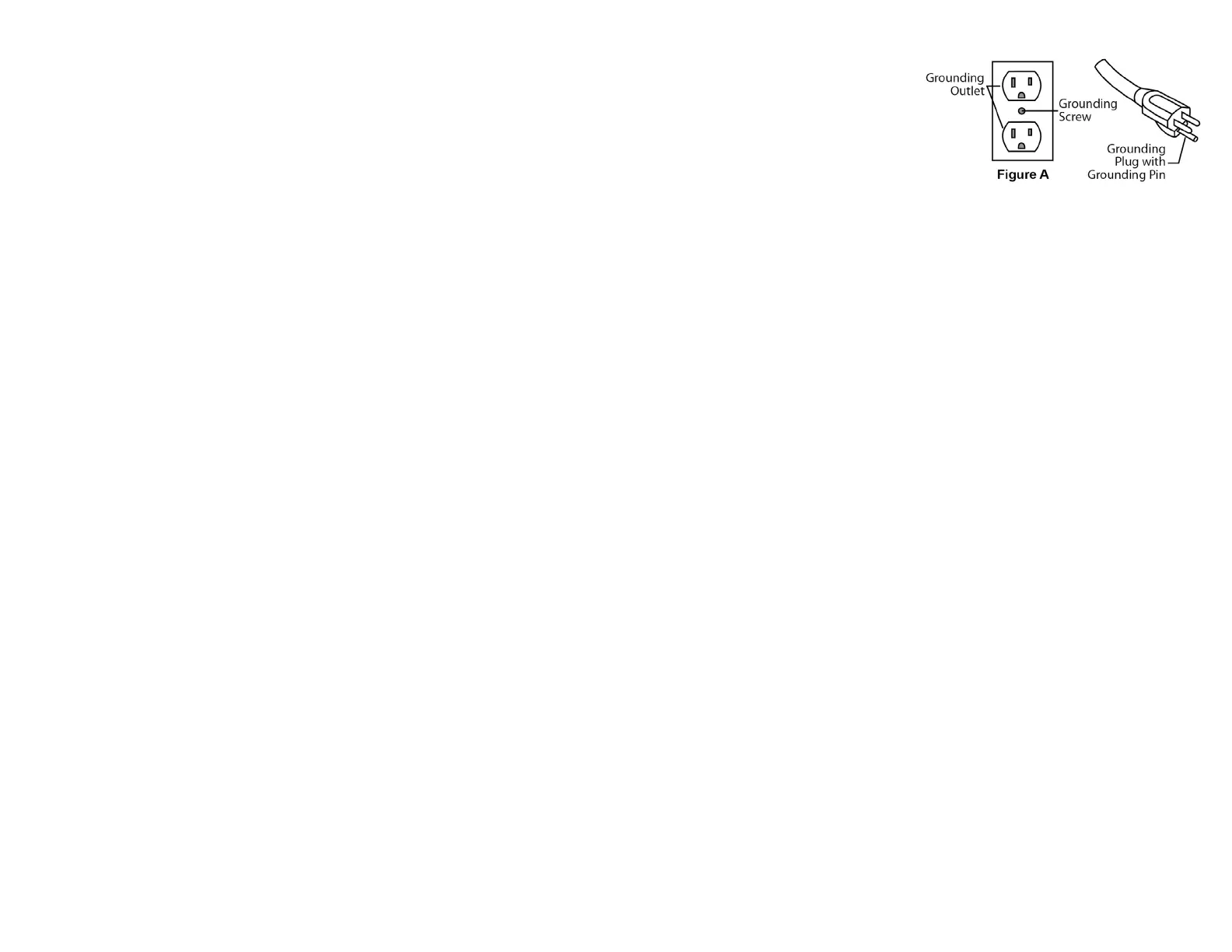

This electric equipment is for use on a normal 120 volt circuit. It has a grounded plug that looks like
the plug illustrated in (Fig A). The use of a temporary adaptor is NOT recommended.
NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.
3.0 Care of your Carpet Extractor
Treat your machine as you would any other high grade, precision made product. Dropping,
unreasonable bumping across thresholds and other misuses may result in a damaged unit
which will not be covered under warranty.
After each use, wipe the extractor body, accessories and power cord with a slightly damp
cloth. When not in use, the remove the power cord and hoses. Stored in a dry area.
4.0 Set-Up and Operation
DO NOT USE ON WET SURFACES. DO NOT EXPOSE TO RAIN. STORE INDOORS.
All carpet extractors, no matter what the time of year, are shipped with antifreeze in the
solution lines. Prior to rst use, ll the tank with one quart of warm water. Attach the hose and
using the hand tool wand, ush out the system by spraying the one quart of water through
the pump.
• Attach the 1-1/2 inch vacuum hose and the brass quick disconnect.
• Fill the recovery tank with warm water (less than 100 degrees Fahrenheit). Fill to
approximately 4 inches from the top. Pre-spray a liquid detergent made for carpet
cleaning or upholstery on carpet and agitate carpet. Next, use clean water from solution
tank to extract – this procedure is highly recommended. Note: read and mix your pre-spray
solution to the dilution ratios as directed.
• Be sure to replace any lters back into the machine prior to use.
• DO NOT use citrus acid, buterol or harsh degreasers inside the machine.
• DO NOT use powdered detergents in this machine – will VOID warranty.
12.0 Machine Parts List – No Heater Continued
Drawing No. Item ID Item Description Qty.
50 10-0835-N Nut for Pump Bolt on Extractor 8.00
51 10-0808 Caster 2.00
52 10-0816 Caster Bolt 1/4-20 x 1/2 Hex Bolt 12.00
53 10-0843-COM 1/2” x 54” Clear Hose for Extractor Pump
Includes Fittings and Filter
1.00
54 80-0040-C 46” of Blue 3000 PSI Hose for Extractor
Complete with Fittings and Clamps
1.00
55 80-0044-S 30” Black Hose with Fittings and Clamps 1.00
56 10-0835-N Nut for Pump Bolt on Extractor 4.00
57 Hose Fitting Part of 80-0044-S 1.00
58 Hose Fitting Part of 80-0040-C 1.00
59 80-0015 500 PSI Pump Mount Plate 1.00
60 10-0833 Motor Manifold Bolts 4.00
61 80-0044-L 67” Black Hose with Fittings and Clamps 1.00
62 Hose Fitting Part of 80-0044-L 1.00
63 Hose Fitting Part of 80-0044-S 1.00
64 10-0881 1/4” MNPT x 3/8” JIC 90 Degree
Part of 80-0044-S
1.00
65 80-0016 500 PSI Pump 1.00
67 10-0400-D Keeper for Extractor Latch 1.00
68 10-0832 S/R Strap Bolts 4.00
69 10-0040 3000 PSI Blue Hose - Part of 80-0040-C 6.00
70 80-0026 Part of 80-0040-C 1.00
71 80-0017 Bulk Head tting 3.00
72 10-0379 8-32 x 3/8 Screw 8.00
73 10-0400-C Latch 1.00
74 10-0868 1/4” Female QD 1.00
75 10-0831 S/R Bracket 2.00
Not Shown 80-0200-B-3100 Extractor Wiring Harness 1.00
