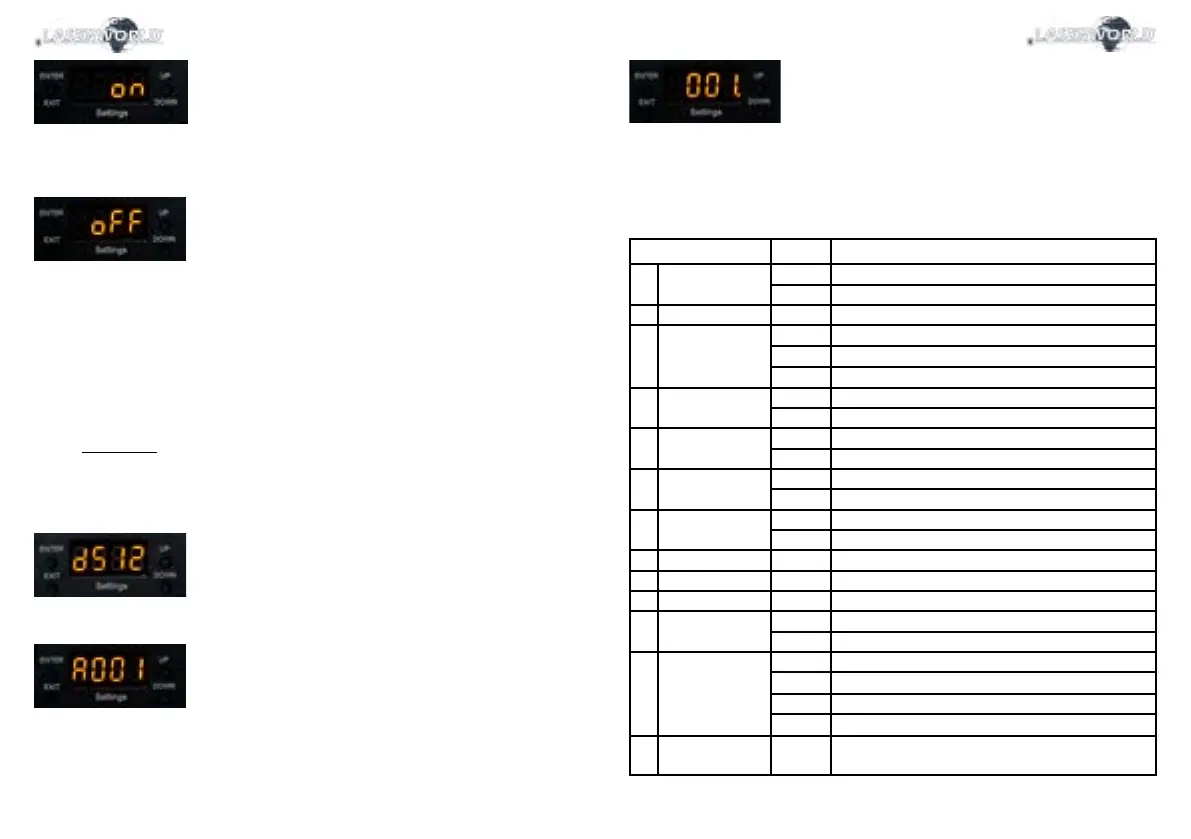

Laserworld CS-1000RGB MK4 Laserworld CS-1000RGB MK4
10 / 45 11 / 45
C: Deactivate Master setting on Slave lasers
As soon as the Master option is set to „on“, the laser sends out the control signal for the Slave
units. Make sure that all Slave units have the Master setting set to „o“:
D: Set Sound-to-Light or Auto mode on Master laser
To use the Master-Slave operation: Set the Master to either Sound-to-Light mode (8.2.1) or Auto
mode (8.2.2.).
E: Establish link to Slave lasers
The Slave units must be set to DMX („d512“) mode and must be assigned address 001 (see 8.2.4.
DMX 512)
8.2.4. DMX 512
The DMX mode requires a DMX controller or a Master laser (see 8.2.3. Master-Slave operation) to
be connected to the laser.
To switch to DMX mode, select „d512“ by navigating with the „Up“ / „Down“ buttons and conrm
with „Enter“:
The submenu for setting the DMX address loads:
Press „Enter“ and the „Up“ / „Down“ buttons to set the desired DMX address.
Conrm with „enter“ and press „Exit“ to return to the main menu.
DMX Chart
The laser uses 18 DMX channels, so make sure that the next device uses an address that doesn’t overlap
with this range.
Channel Value Function
1 Intensity 0 Laser o, CH 2 - 18 not available
1 - 255 RGB intensity 0~100% (also aects sound and auto mode)
2 Pattern select 0 - 255 Pattern selection
3 Rotation (Z-axis) 0 - 127 Rotation angle selection
128 - 191 Rotation counter-clockwise speed
192 - 255 Rotation clockwise speed
4 X-axis Rotation 0 - 127 Rotation X position steps
128 - 255 Rotation X speed
5 Y-axis Rotation 0 - 127 Rotation Y position steps
128 - 255 Rotation Y speed
6 X-axis Movement 0 - 127 X-axis movement position
128 - 255 X-axis movement speed
7 Y-axis Movement 0 - 127 Y-axis movement position
128 - 255 Y-axis movement speed
8 Size X 0 - 255 Size X from big to small
9 Size Y 0 - 255 Size Y from big to small
10 Pattern gradient 0 - 255 Gradient speed
11 Scan speed / Points 0 - 127 Scan speed
128 - 255 Point speed
12 Color change 0 - 24 Original color
25 - 199 Color selection
200 - 224 Automatic color change eect
225 - 255 Rainbow color change eect
13 Color speed 0 - 255 Speed adjustment for automatic color change eect and multi
color step through
