Lantronix ION C3110 User Guide
33417 Rev. B https://www.lantronix.com Page 7 of 62
Section 2: Installation
CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the
jumper, the 6-position switch, and installing the C3110 SIC into the ION chassis. Failure to observe this
caution could result in damage to the SIC.
PCB Layout

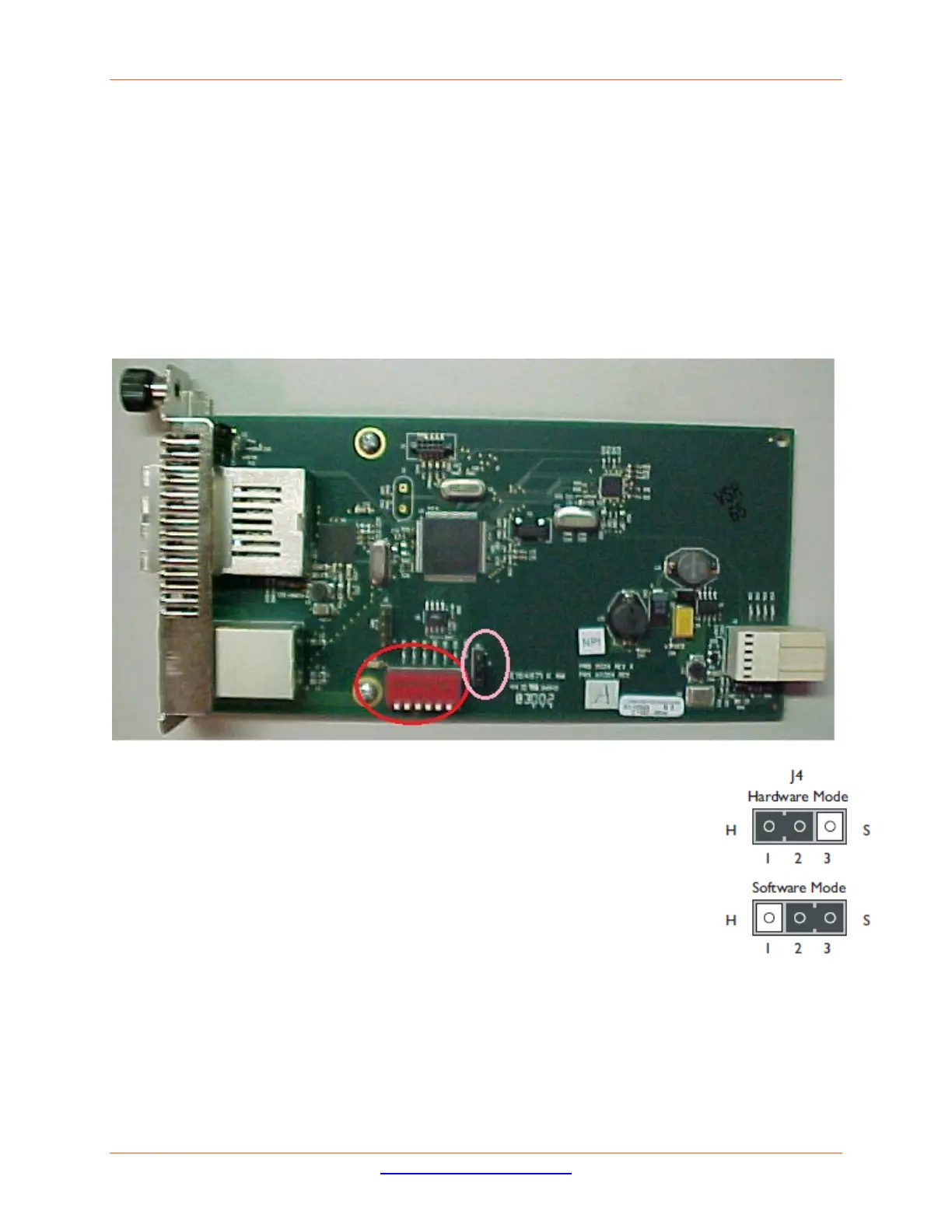

The C3110 PCB layout is shown below. Two-position Jumper J4 is circled in pink. Six-position DIP Switch
SW1 is circled in red. Note that PCB layouts and labeling may vary by revision.
Set the Two-position Jumper J4
• The jumper is located on the SIC circuit board, connector J4.
• Use a small needle-nosed pliers or similar device to set the jumper.
• Refer to the illustration on the right for hardware/software jumper
positioning.
Hardware: The ION mode of operation is determined by the six-position switch
settings. The default setting is Hardware Mode.
Software: The ION mode of operation is determined by the most recently saved on-
board microprocessor settings.
