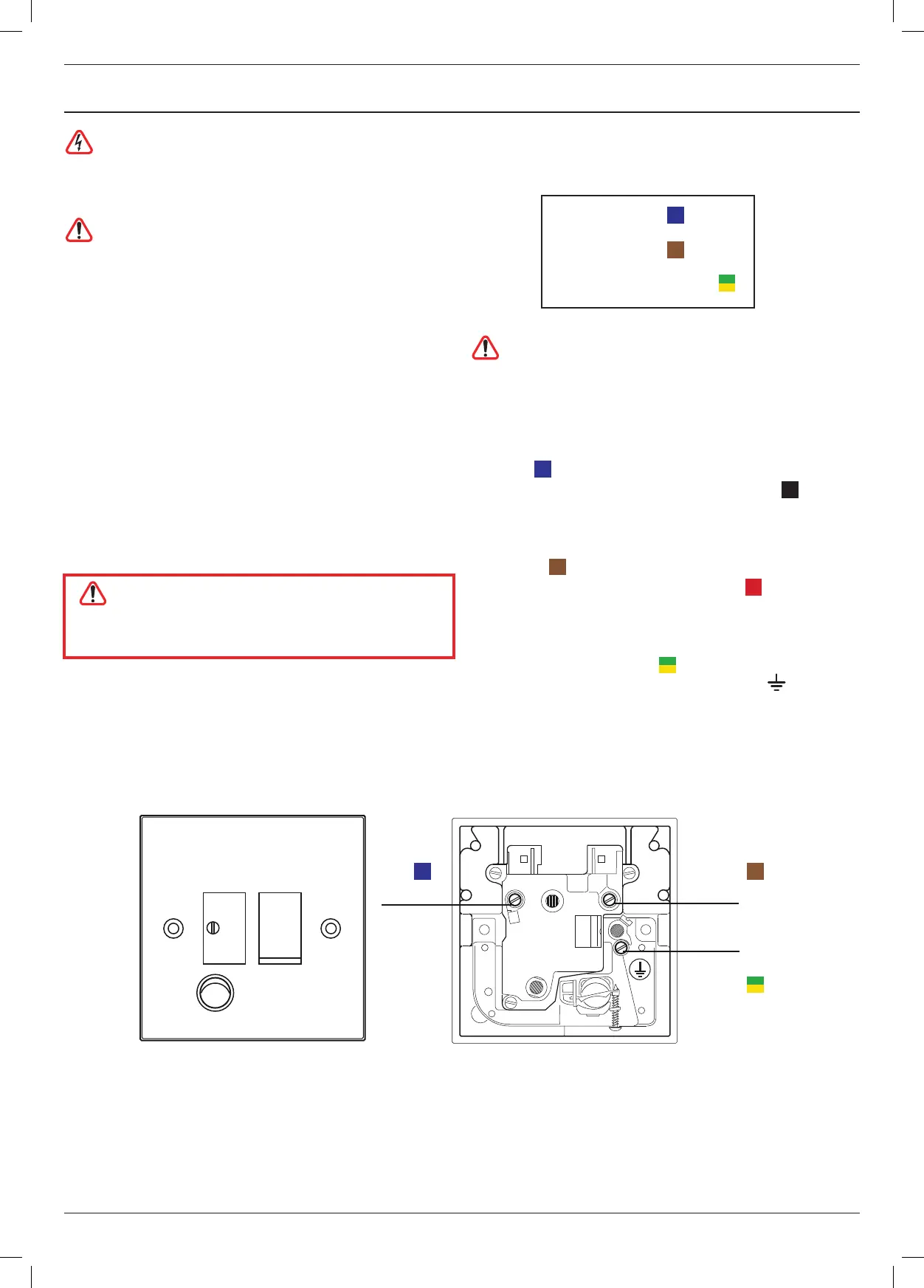

Electrical connections
Important: Ensure that the electricity supply is
switched off before connecting.
When fitting in recirculation mode (with carbon
filters), ensure the cable is shortened and securely
held in place; or a cable grid is fitted to prevent the
loose cable from falling back into the motor cavity.
Your appliance must be connected to fixed wiring via
the use of a double pole switched fused spur outlet
with at least 3mm contact separation, the isolation
switch must be accessible after installation. (See
technical data for fuse rating).
The appliance should be connected by a suitably
qualified person. The product must be installed in
accordance with all local regulations.
• The terminations labelled SUPPLY are the
connections for the internal house wiring.
• The terminations labelled LOAD are for connection to
the appliance.
IMPORTANT: The wires in the mains lead are coloured
in accordance with the following code:
As the colours of the wires in the mains lead of
this appliance may not correspond with the coloured
markings identifying the terminals in your spur box,
proceed as follows;
The blue wire must be connected to the terminal which
is marked with the letter ‘N’ or coloured BLACK .
The brown wire must be connected to the terminal
marked with the letter ‘L’ or coloured RED .
The green and Yellow wire must be connected to the
terminal which is marked with the letter ‘E’ or symbol.
Blue - Neutral
Brown - Live
Green / Yellow - Earth
The terminology DOUBLE POLE -/+ means that
both the live and neutral supplies are switched and
disconnected at the same time.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
13A 250V~
FUSE
ON
Blue
(Neutral)
Brown
(Live)
Green & Yellow
(Earth)
