Kramer Electronics Ltd.
VS-8FDxl - Using the Embedded Web Pages
18
To set a port to Single or dual operation mode:
Click D next to an input or an output button to enter the dual mode.
The adjacent port is also set to dual mode.
For example clicking D on Input 1 immediately turns Input 2 to Dual mode, see Figure 13.

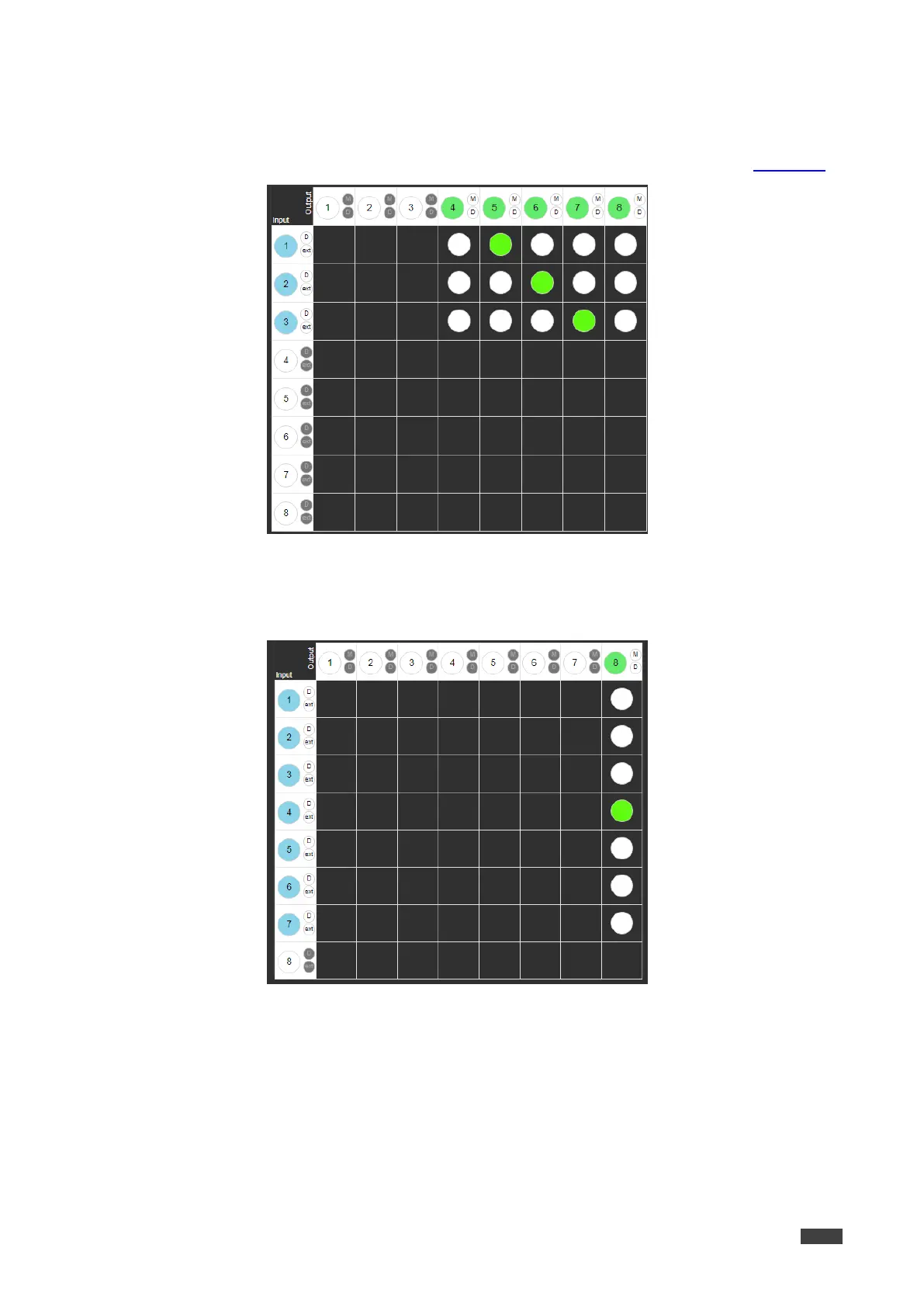

Figure 11: Video Switching Page – The Switching Matrix
Switching configurations can be set with a click of a button. For example, ports 1 to 7 are set
as inputs and port 8 is set as an output:
Figure 12: Video Switching Page – 7x1 Switcher Configuration Example
Other Port Settings
To mute an output:
Click M next to an output button to mute the output.
M turns green.
Click ext next to an input button to extend the input reach.
ext turns green
