KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher
16
6.5 Controlling via the RS-485 Port
To cascade up to eight individual VS-48HDxl units, via RS-485 (with control
via a Master Programmable Remote Control system such as the Kramer
RC-3000), as Figure 6 illustrates, do the following:
1. Connect the “A” (+) and “B” (-) PINS on the RS-485 terminal block port of
the RC-3000 to the “A” (+) and “B” (-) PINS, respectively, on each of the
eight VS-48HDxl units. (If using shielded twisted pair cable, the shield is
usually connected to the “G” (Ground) PIN of the first unit).
2. Set the first VS-48HDxl unit as MACHINE # 1 and the following seven
VS-48HDxl units as MACHINE # 2 to MACHINE # 8, according to
Table 3.
MACHINE # 1
MACHINE # 8
KEYBOARD EXTENSION REMOTE CONTACT
RS-485
RS-232 IN RS-232 OUT
12 VDC
1 2
1 2 3 4 5 6 7 8 G
4 6 8 103 5 7 9 11 12 14 16
OUT
13 15
IN
RS-485 PINOUT
B
G
A
_
+

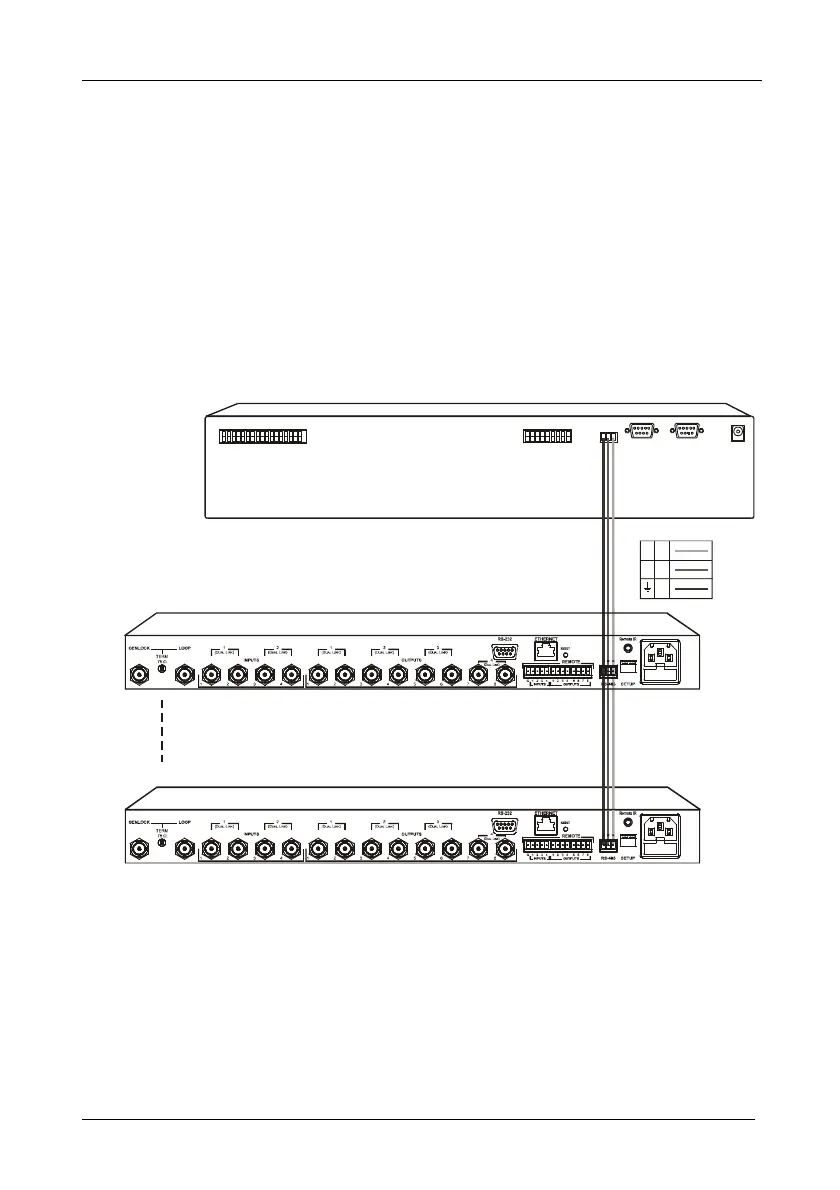

Figure 6: Controlling via RS-485 (for example, using an RC-3000)
6.6 Factory Reset
Press and hold the input buttons 1, 2 and 3 simultaneously for 3 seconds until
the three buttons flash to reset the machine to its default values.
