KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher
14
6.3 Dipswitch Settings
By default, all dipswitches are set to OFF.

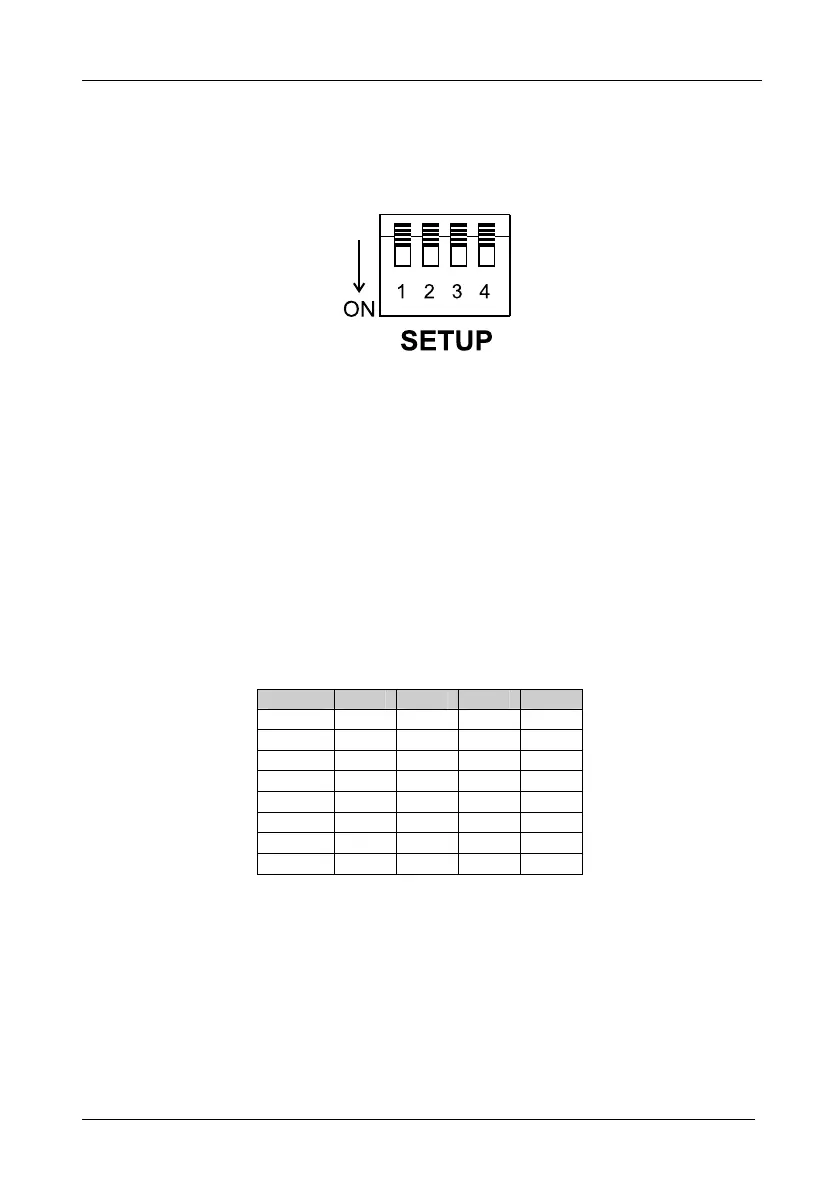

Figure 4 illustrates the VS-48HDxl dipswitches:
Figure 4: VS-48HDxl SETUP Dipswitches
6.3.1 Setting the Setup Dipswitches
The setup dipswitches determine the address of each VS-48HDxl unit when
several VS-48HDxl units are connected to a PC or serial controller. Set the
address of the unit using the SETUP dipswitches 1, 2, 3 and 4, according to
Table 3.
When using a standalone VS-48HDxl unit, set the address to 1.
When connecting more than one VS-48HDxl unit, set the address of the first
machine (the Master) that is closest to the PC, to 1 (dipswitches are set to
OFF). Each additional VS-48HDxl unit must have a unique address.
Table 3: Machine # Dipswitch Settings
Address DIP 1 DIP 2 DIP 3 DIP 4
1 (default)
OFF OFF OFF OFF
2 OFF OFF OFF ON
3 OFF OFF ON OFF
4 OFF OFF ON ON
5 OFF ON OFF OFF
6 OFF ON OFF ON
7 OFF ON ON OFF
8 OFF ON ON ON
