10 VS-1616D – Overview

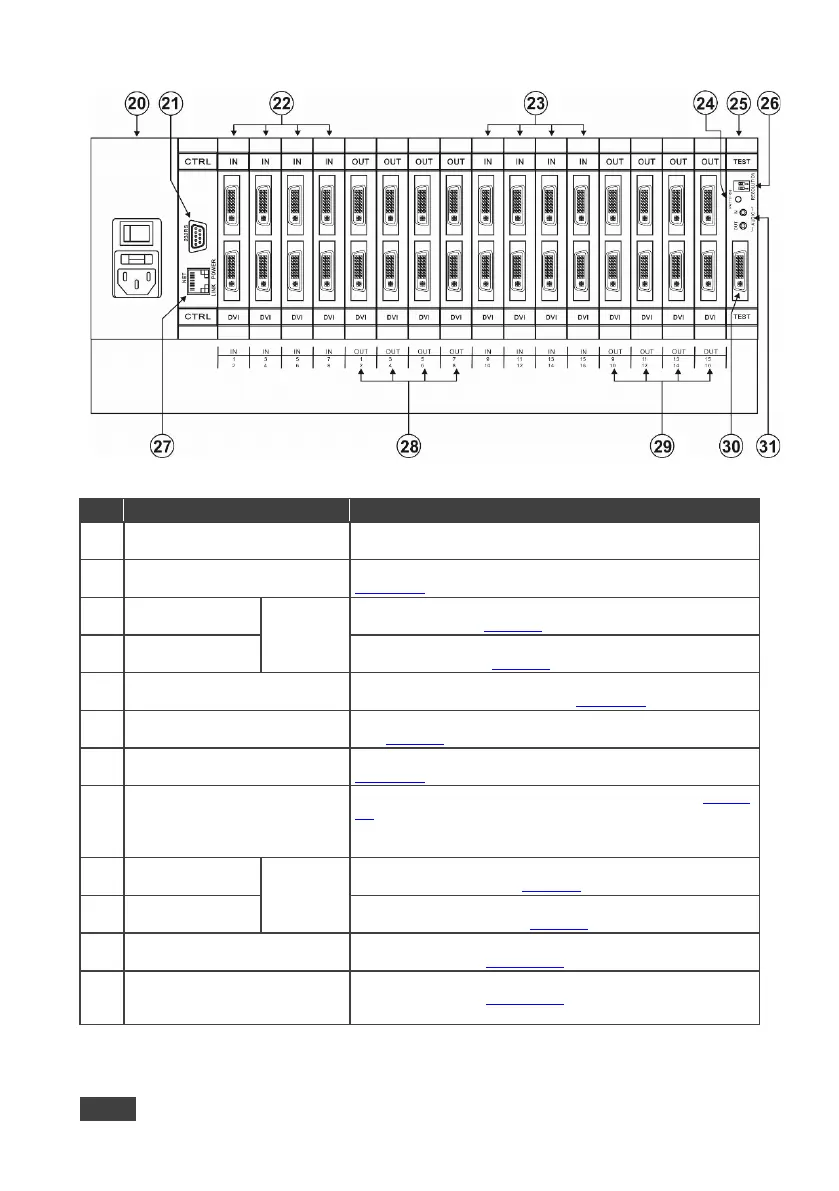

Figure 3: VS-1616D Rear Panel Showing DVI cards
#
Feature
Function
20
AC Mains Power Module
Fuse holder and power cord socket. Connect to the AC mains
supply
21 RS-232 9-pin D-sub Port
Connects to the remote operation PC or remote controller (see
Section 5.2).
22
IN 1~4, 5~8
Connectors
INPUTS
Connect to the relevant video sources, depending on the cards
installed (1 to 8, see Section 5)
23
IN 9~12, 13~16
Connectors
Connect to the relevant video sources, depending on the cards
installed (9 to 16, see Section 5)
24 PATTERN Button
Press the button repeatedly to change the video pattern
generated by the Test module (see Section 9.3)
25
TEST Module
Signal generator module for testing video and audio outputs
(see Section 9)
26
RESOLUTION DIP-switches
Set the resolution for video generated by the Test module (see
Section 9.2)
27 NET Ethernet RJ-45 Connector
Connect to a PC or controller via the Ethernet LAN (see Section
5.3).
LINK LED flashes when communication is active. POWER LED
lights when the interface receives power.
28
OUT 1~4, 5~8
Connectors
OUTPUTS
Connect to the relevant video acceptors, depending on the
cards installed (1 to 8, see Section 5
)
29
OUT 9~12, 13~16
Connectors
Connect to the relevant video acceptors, depending on the
cards installed (9 to 16, see Section 5)
30
Test Module DVI Molex 24-pin
Video Connector
Connect to one of the relevant video inputs/outputs to aid in
troubleshooting (see Section 11.1)
31
Test Module 3.5mm Mini Jack
Unbalanced Analog Audio
Connector
Connect to one of the relevant audio inputs/outputs to aid in
troubleshooting (see Section 11.2)
