Kramer Electronics Ltd.
MTX3-88-HSA – Using Embedded Web Pages
28

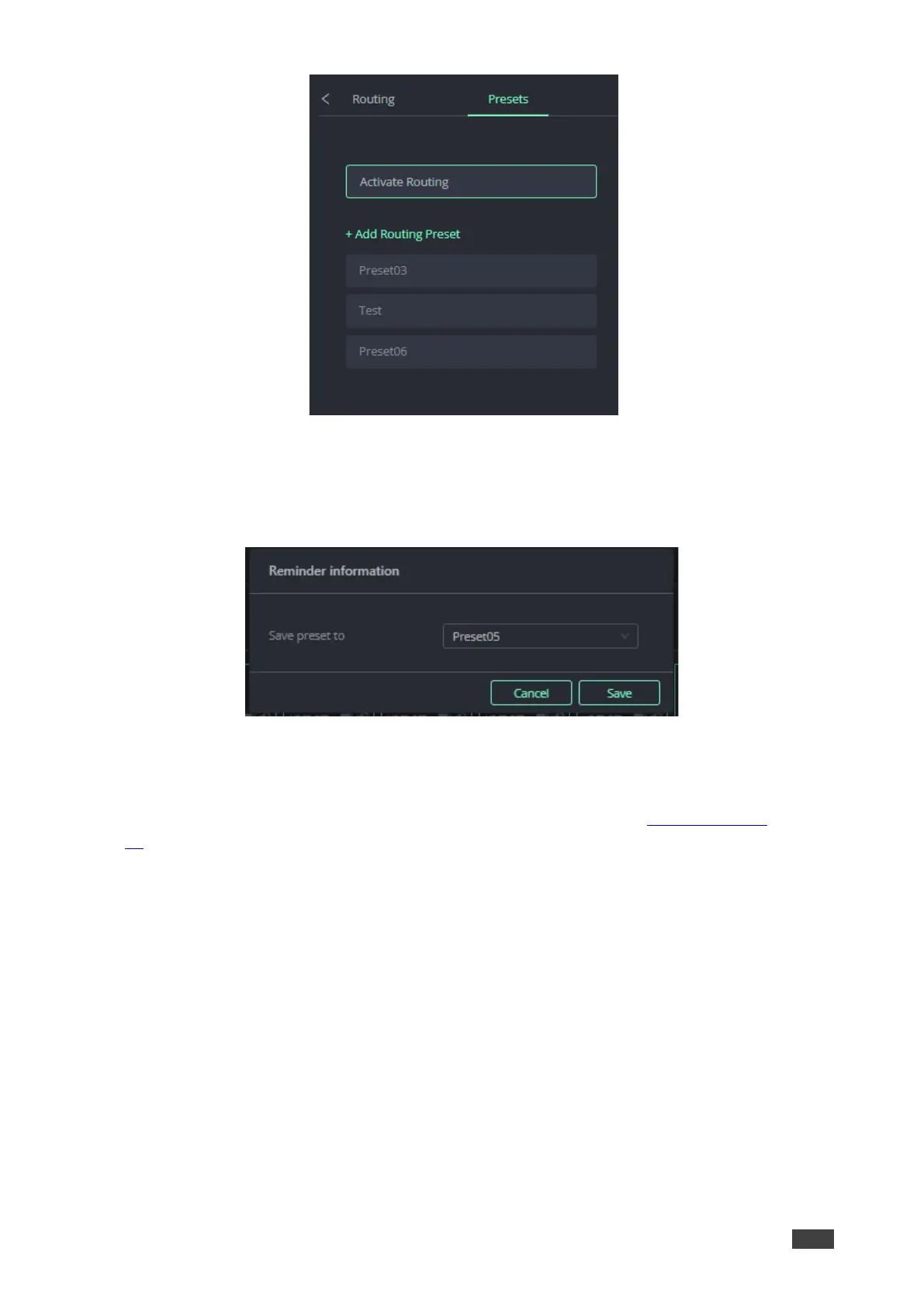

Figure 19: Select +Add Routing Preset
3. In the Reminder information dialog box, select from the Save preset to drop-down box
(Preset 01-08) and click Save.
The preset is saved and appears in the left hand pane.
Figure 20: Save a New Routing Preset
Saving a Preset
The user can save up to 8 presets for AV. For further details, refer to Saving a Preset in Page
26.
Displaying a Preset
To display a saved preset:
1. In the left-hand pane, select the desired saved preset.
2. In the right-hand pane, the saved preset is displayed.
Managing the Saved Presets
To activate a saved preset:
1. In the left-hand pane, select the desired saved preset. The saved presets are displayed on
the matrix grid.
