MTX3-88-HSA – Connecting MTX3-88-HSA
8
OUTPUT 4 to active speakers.
5. If required, connect:
The ETHERNET port to a control device (in Figure 3, KC-VB 1/5).
The RS-232 port to a controlled device (in Figure 3, TV monitor).
6. Connect the power cord to the power connector and to the mains electricity (not
shown in Figure 3).
We recommend that you use only the power cord that is supplied with this machine.
Connecting a Balanced/Unbalanced Stereo Audio
Source to the Balanced Input
The following are the pinouts for connecting the output to a balanced or unbalanced stereo
audio acceptor:

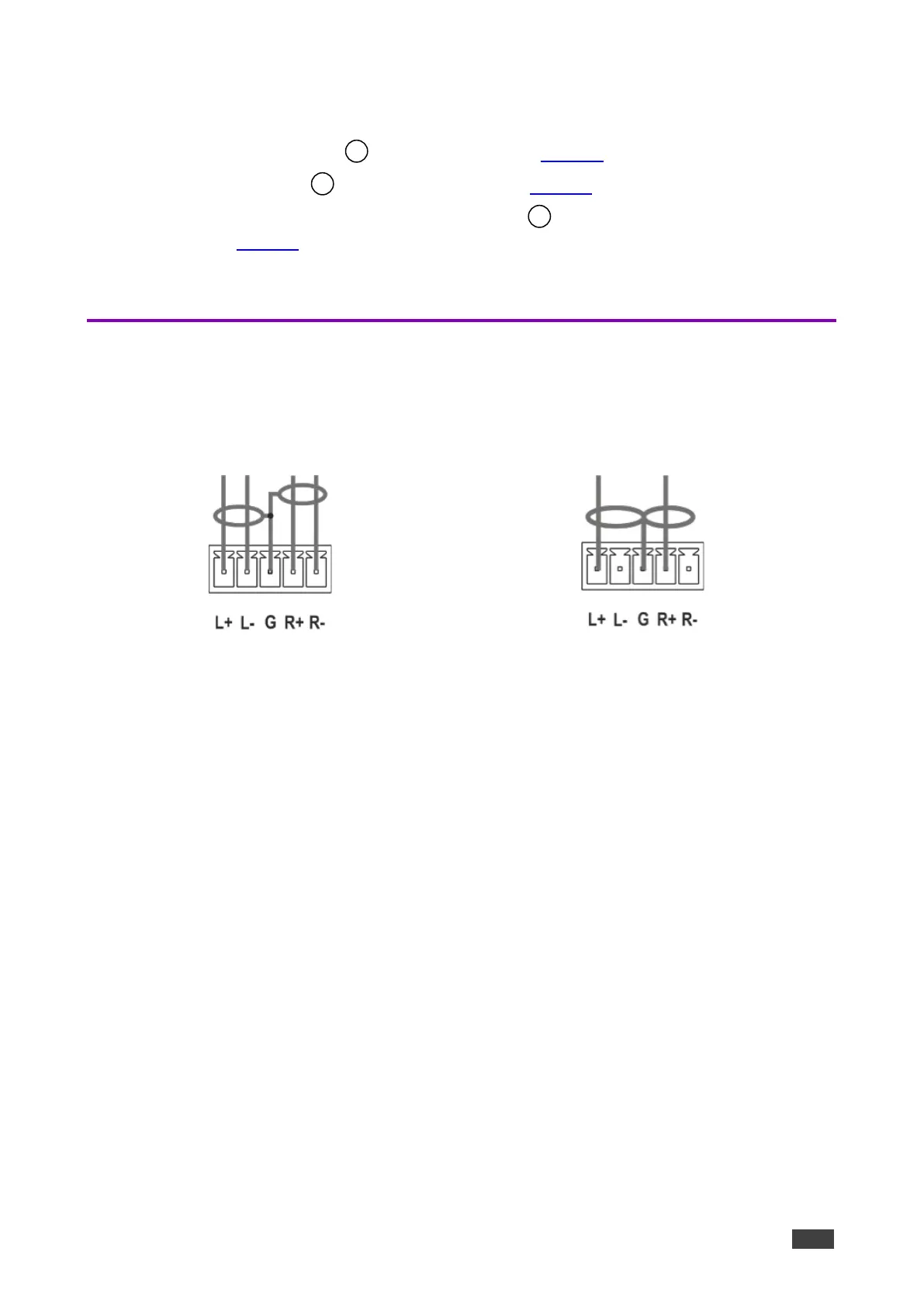

Figure 4: Connecting to a Balanced Stereo Audio
Acceptor
Figure 5: Connecting to an Unbalanced Stereo Audio
Acceptor
