Kramer Electronics Ltd.
KT-2015 / KT-2015WM – Mounting the KT-2015 / KT-2015WM
11
Mounting KT-2015WM on a Wall
Install KT-2015WM safely on a wall using a standard single Gang in-wall junction box. The cables
are passed inside the wall and then connected to the rear side of the on-wall mount unit.

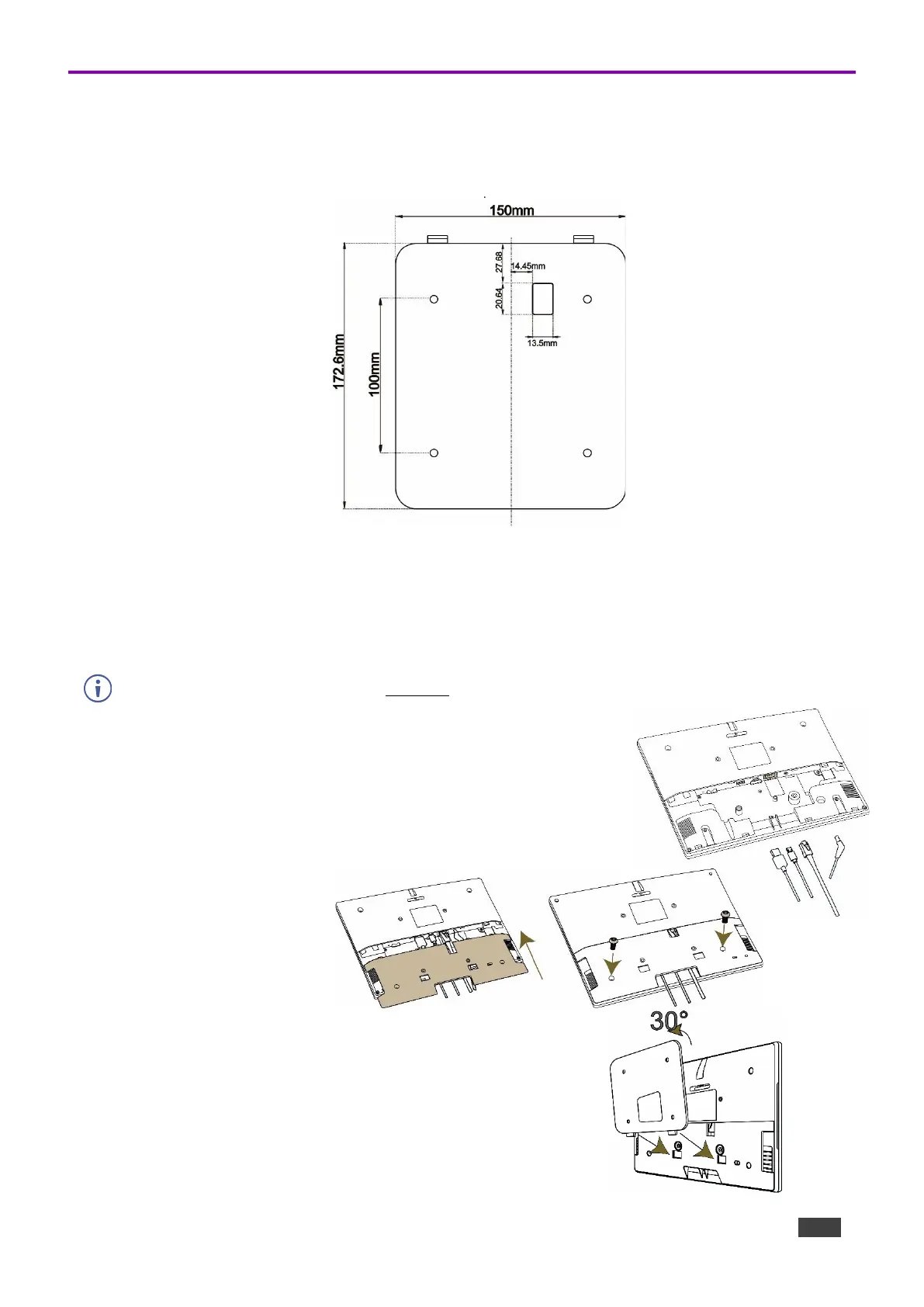

Figure 4: The on-wall mount’s measurements.
Inserting the On-Wall Mount Unit
To mount the device on a one-gang box:
Important! Cables must be connected BEFORE mounting the touch pad on the wall.
1. Connect any cables.
▪ Device will power on when PoE or DC is connected.
2. Install the I/O cover.
▪ Close with the M2*8 (qty 2)
screws.
3. Click the wall bracket onto the back of the I/O cover.
▪ Push the bracket into place while holding its top slightly outward.
Note: The bracket looks slightly different and has additional screw holes.
