User's Manual 2. Getting Started
Version 2.2 11 RX-PANEL
2.4 Cabling

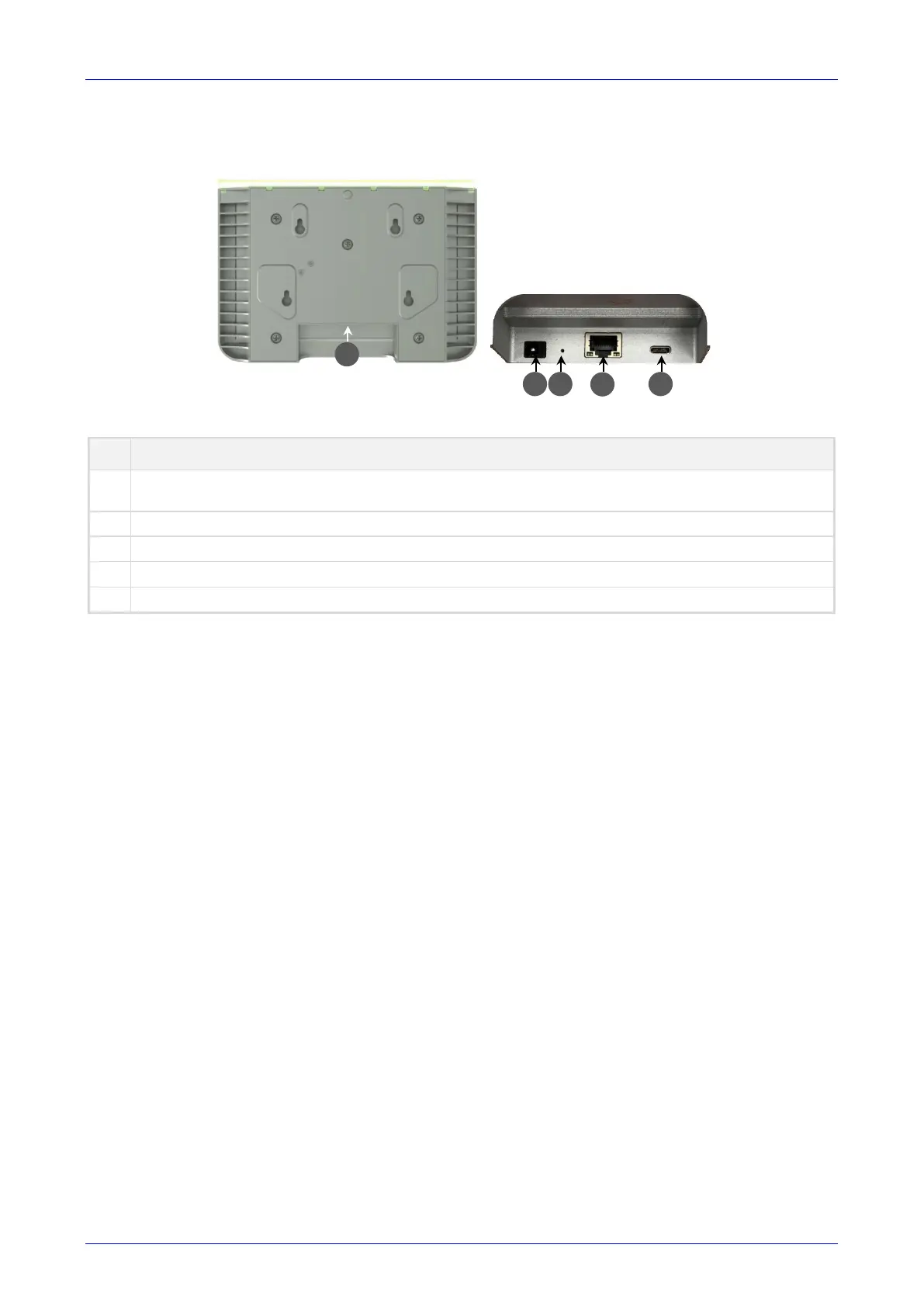

The figures below show the RX-PANEL rear connector ports.
# Description
1
•
The figure above left shows the ports’ location (concealed view).
•
The figure above right shows the exposed view.
2
DC jack for 12V power supply
3
Reset (Insert pin, unplug PoE, keep pin inserted, plug in PoE, keep pressing for 10 seconds)
4
Ethernet LAN/PoE GbE, RJ-45
5
USB Type C connector (for maintenance purposes) (see the User’s & Administrator’s Manual)
2.5 Powering up
Connect the RX-PANEL LAN/PoE to any PoE Ethernet switch; the unit powers up.
2.6 Managing RX-PANEL
RX-PANEL is managed by AudioCodes’ One Voice Operations Center | Device Manager.
Management includes:
Firmware management / upgrade
Alarm management
APK upgrade
1
2
4
5
3
