72
© 2021 KOSTAL Solar Electric GmbH
Installation

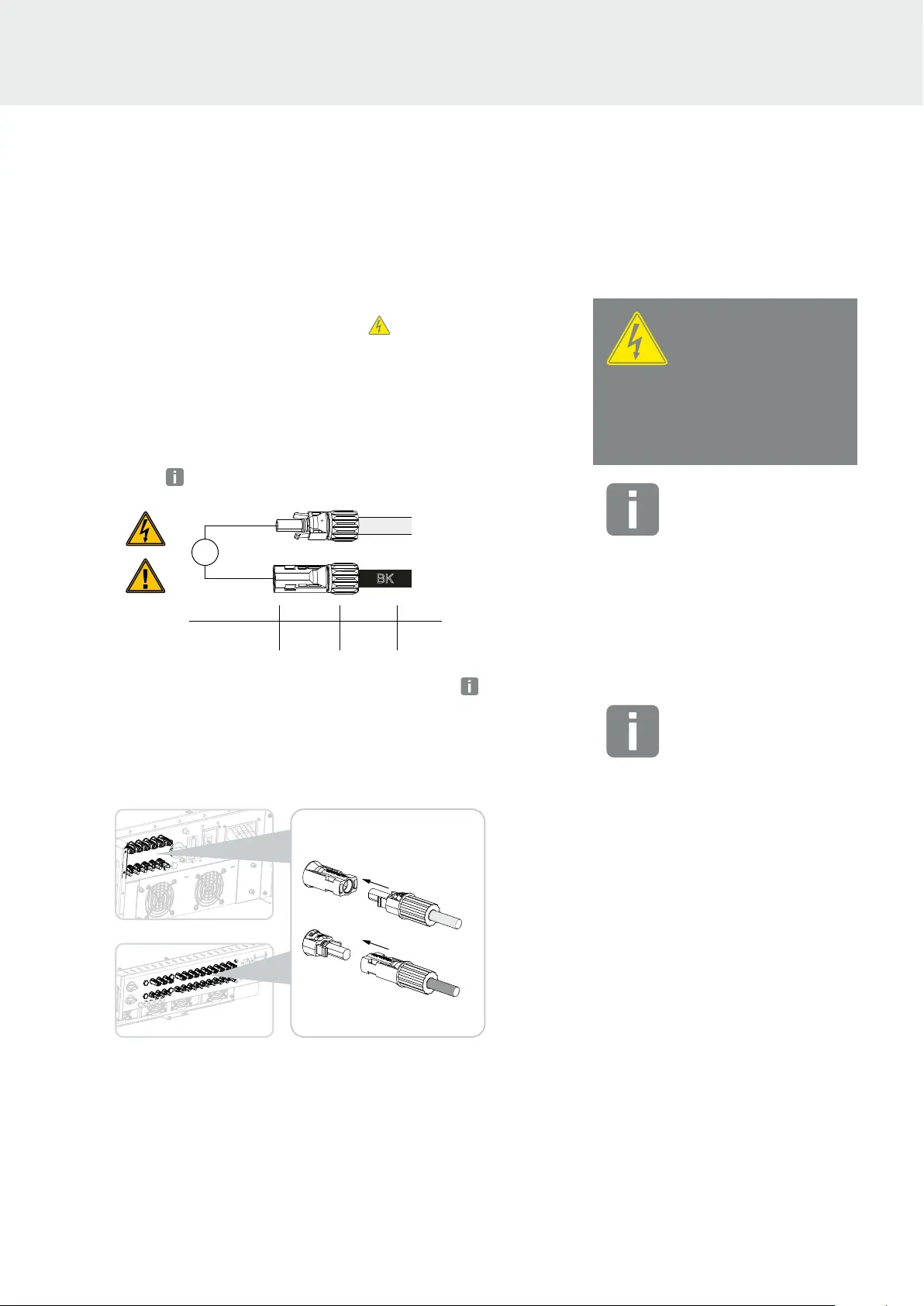

Connecting PV modules to the inverter
The DC cables of the solar modules must not be
connected to the inverter under load
.
1. Unlock the AC connection of the inverter by
switching o the circuit breaker.
2. Turn the DC switch on the inverter to “OFF”.
3. Check polarity of DC cables before connecting
them
.
BK
RD
V
+
+
–
–
PIKO CI 30
PIKO CI 50/60
≤ 1000 V
≤ 1100 V
U
DC,max
≤ 37,5 A
≤ 33,0 A
I
MPP,max
≤ 14 A
≤ 14 A
I
string,max
4. Remove protective caps from input terminals .
5. Fit plug connectors of the individual PV strings into
the DC inputs PV+ and PV- in pairs until they engage
tangibly and audibly.
PV.. +
PV.. –
PIKO CI 30
PIKO CI 50/60
+
–
H
The PV modules are connected.
DANGER
RISK OF DEATH DUE TO ELECTRI-
CAL SHOCK AND DISCHARGE!
Switch o the inverter on both the
AC and DC sides.
INFO
Observe national regulations! In
France, in particular, the inverter and
the supply lines must be labelled, for
example.
The installer is responsible for ob-
taining and axing the prescribed
markings.
INFO
Keep the protective caps of the PV
connections for future use.
3
2
3
4
5
6
7
8
9
10
1
