Handleiding
Je bekijkt pagina 54 van 137
54
© 2021 KOSTAL Solar Electric GmbH
Installation
1
Inverter
2
LAN interface for inverter
3
KOSTAL Smart Energy Meter
4
LAN interface for KOSTAL Smart Energy Meter
5
Feed meter
6
Public grid
7
Read the operating manual for the KOSTAL Smart
Energy Meter.
8
Use a current transformer for currents above 63 A.
Read the operating manual for the KOSTAL Smart
Energy Meter
Connecting the KOSTAL Smart Energy Meter
1. De-energise the mains cable.
2. Install the KOSTAL Smart Energy Meter as shown at
the grid connection point in the house grid.

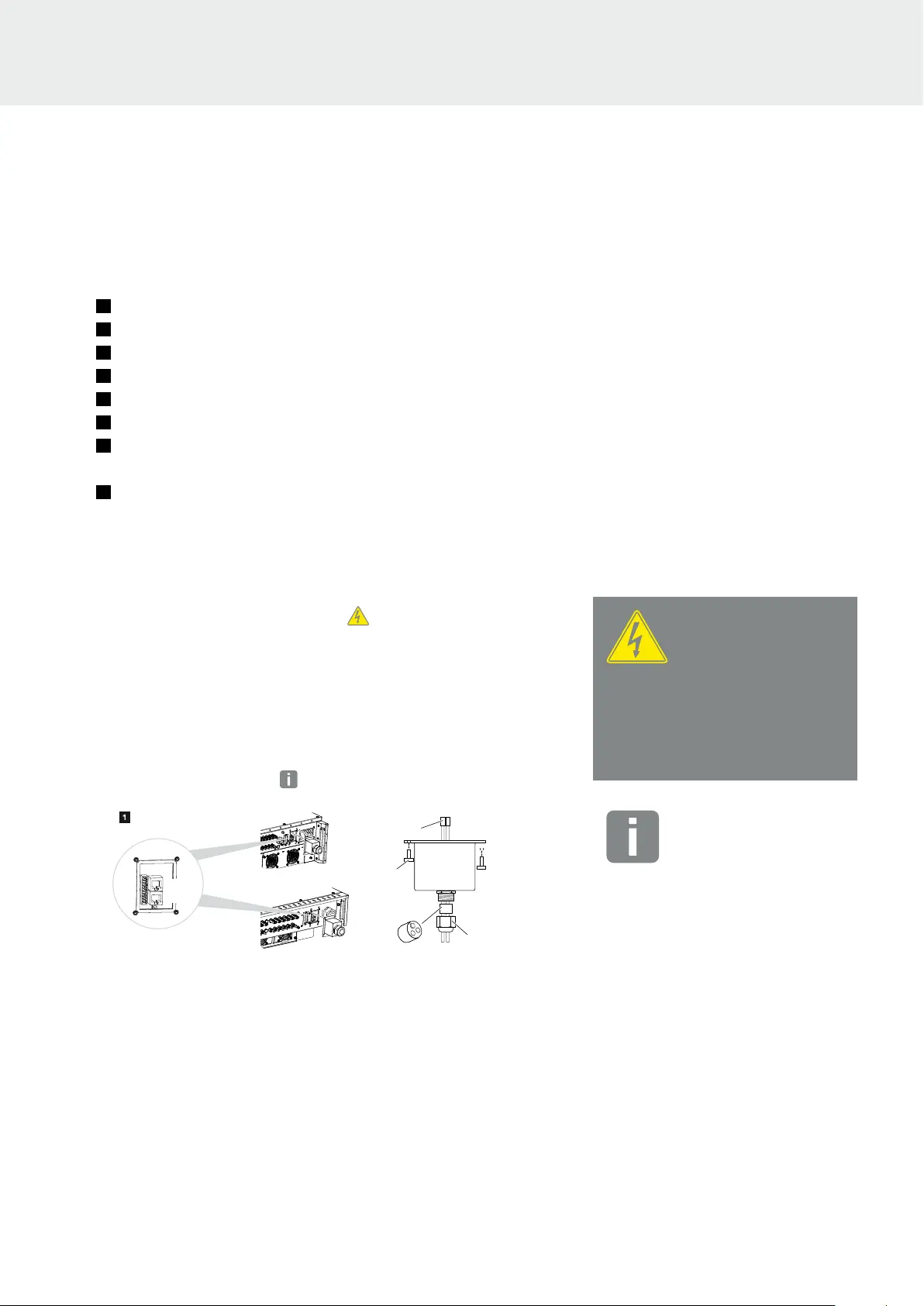

3. Feed the Ethernet cable on the inverter through the
COM2 cover and seal it with sealing ring and union
nut. Tighten union nut to the prescribed torque.
Torque: 8 Nm (M25).
8 Nm
1,5 Nm
RJ45
COM
PIKO CI 50/60
PIKO CI 30
LAN
LAN
4. Connect Ethernet cable to one of the LAN sockets
in the COM2 connection panel. The second LAN
socket is used to continue the network connection to
further inverters.
5. Mount COM2 cover cap.
Torque: 1.5 Nm
6. Connect the other end of the Ethernet cable to the
router.
DANGER
RISK OF DEATH DUE TO ELECTRI-
CAL SHOCK AND DISCHARGE!
De-energise all devices and secure
them against being switched on
again.
INFO
LAN cable requirements:
n CAT7
n Length max. 100
3
2
3
4
5
6
7
8
9
10
1
