2. Using the insulation tape wrap the refrigerant pipes, connecting wires and

drainage hose together tightly.

Step 8: Mount Indoor Unit

1. Slowly pass the refrigerant pipes, connecting wires and drainage hose wrapped

bundle through the wall hole.

2. Hook the top of the indoor unit on the mounting plate.

3. Apply slight pressure to the left and right sides of the indoor unit, make sure the

indoor unit is hooked firmly.

4. Push down the bottom of the indoor unit until it snaps onto the hooks of the

mounting plate ensuring it is securely in place.

If the refrigerant pipes were already embedded in the wall or if you intend to connect the

pipes and wires on the wall, follow the steps below:

1. Grab both ends of the bottom plate, apply a little outward force to remove the bottom

plate.

2. Hook the top of the indoor unit on the mounting plate without piping and wiring.

3. Lift the indoor unit opposite the wall, unfold the bracket on the mounting plate and

use this bracket to prop up the indoor unit, this will allow for more space for operation.

4. Connect the refrigerant piping, wiring, drainage hose and wrap them as shown in Step

4 to 7.

5. Replace the bracket on the mounting plate.

1. Push down the bottom of the indoor unit until it snaps onto the hooks of the mounting

plate ensuring it is securely in place.

2. Replace the bottom plate of the indoor unit.

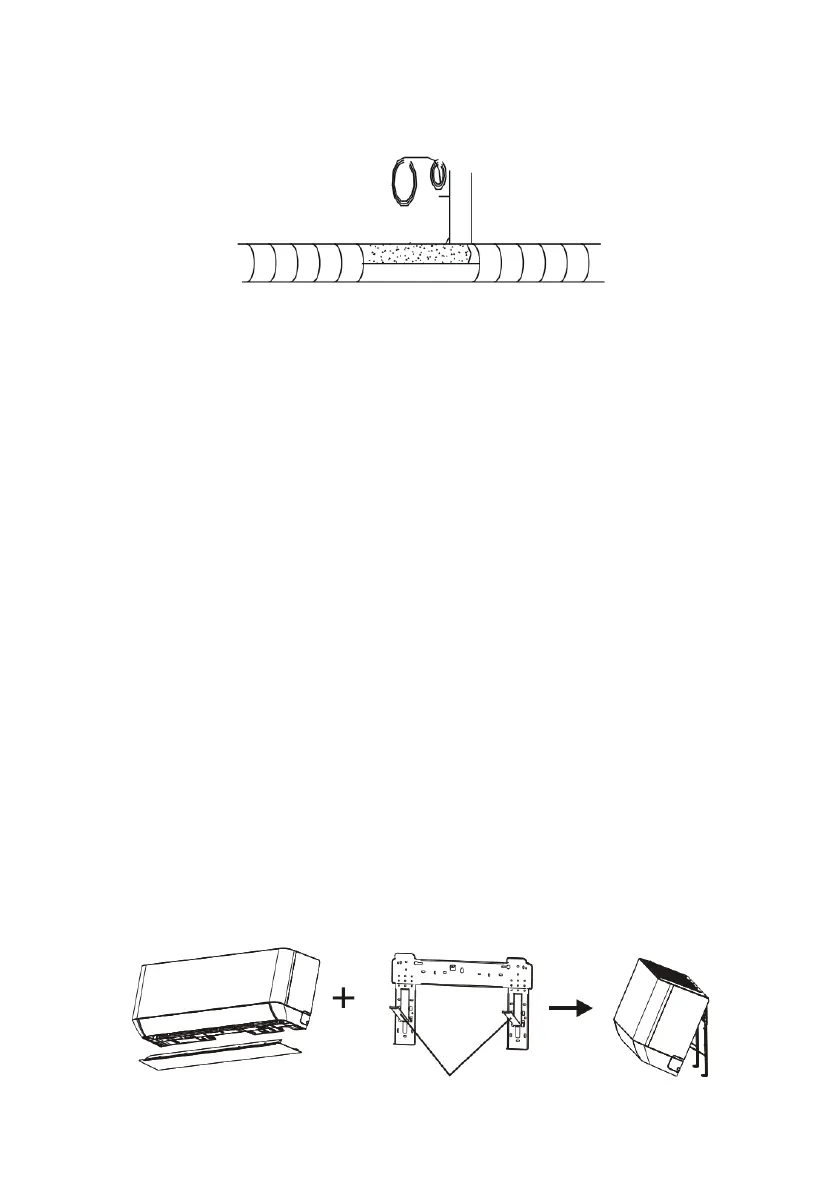

Unfold the bracket on the mounting plate

Take off the bottom plate
