Step 6: Connect Wiring

Choose the right cables size determined by the maximum operating current on the

nameplate (refer to Dedicated Distribution Device and Wire for Air Conditioner table).

1. Open the front panel of indoor unit.

2. Use a screwdriver, open the electric control box cover, to reveal the terminal block.

3. Unscrew the cable clamp.

4. Insert one end of the cable into the position of control box from the back of the

right end of the indoor unit.

5. Connect the wires to the corresponding terminal according to the wiring diagram

on the electric control box cover. Ensure that the wires are well connected.

6. Screw the cable clamp to fasten the cables.

7. Reinstall the electric control box cover and front panel.

Step 7: Wrap Piping and Cable

After the refrigerant pipes, connecting wires and drainage hose are all installed, to save

space, protect and insulate them, it must be bundle with insulation tape before passing

them through the wall hole.

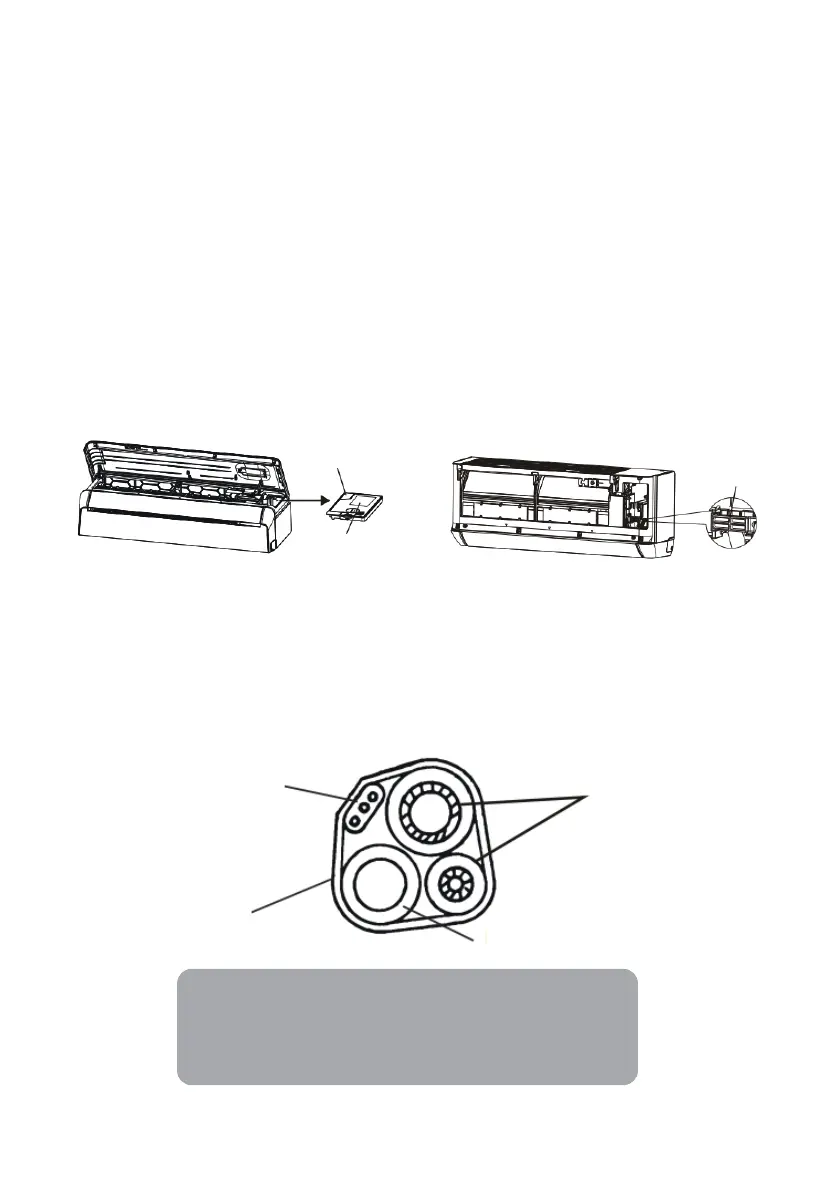

1. Arrange the pipes, cables and drainage hose according to the illustration below.

Cable clamp

Wiring diagram

Control box cover

Connecting wiring

Insulation tape

Drainage hose

Refrigerant piping

Note:

• Ensure the drainage hose is at the bottom.

• Avoid crossing and bending of parts.
