Step 4: Install Wiring
1. Use a Phillips head screwdriver to unscrew the wiring cover, then gently grasp and
press it down to remove it.
2. Unscrew the cable clamp and remove it.
3. According to the wiring diagram inside the wiring cover, connect the wires to the
corresponding terminals and ensure all connections are firm and secure.
4. Reinstall the cable clamp and wiring cover.

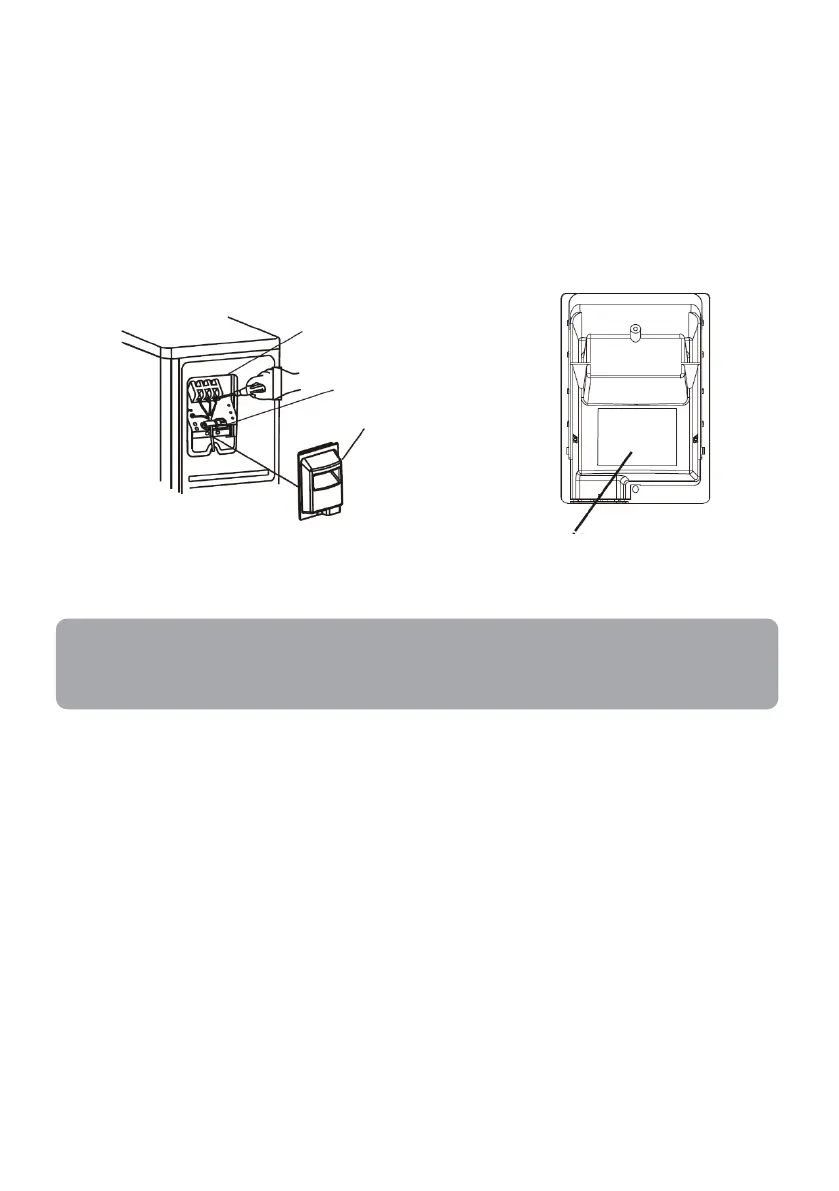

Terminal block
Cable clamp
Wiri
ng cover
Wiring diagram
Note:
When connecting the wires of indoor and outdoor units, the power must be cut off.
