23
If the refrigerant pipes were already embedded in the wall or if you want to connect the
pipes and wires on the wall, follow these steps:
1. Hook the top of the indoor unit onto the mounting plate without piping and wiring.
2. Lift the indoor unit away from the wall, unfold the bracket on the mounting plate,
and use this bracket to prop up the indoor unit, creating a larger space for
operation.
3. Complete the refrigerant piping, wiring, and drainage hose connection, then wrap
them as described in Steps 4 to 7.
Outdoor Unit Installation
Attention: Remove the paperboard from the outdoor unit before installation.
Step 1: Select Installation Location
• Do not install the outdoor unit near sources of heat, steam or flammable gas.
• Do not install the unit in windy or dusty places.
• Do not install the unit where people often pass. Select a place where the air discharge
and operating sound will not disturb the neighbours.
• Avoid installing the unit where it will be exposed to direct sunlight (otherwise use a
protection, if necessary, that will not interfere with the air flow).

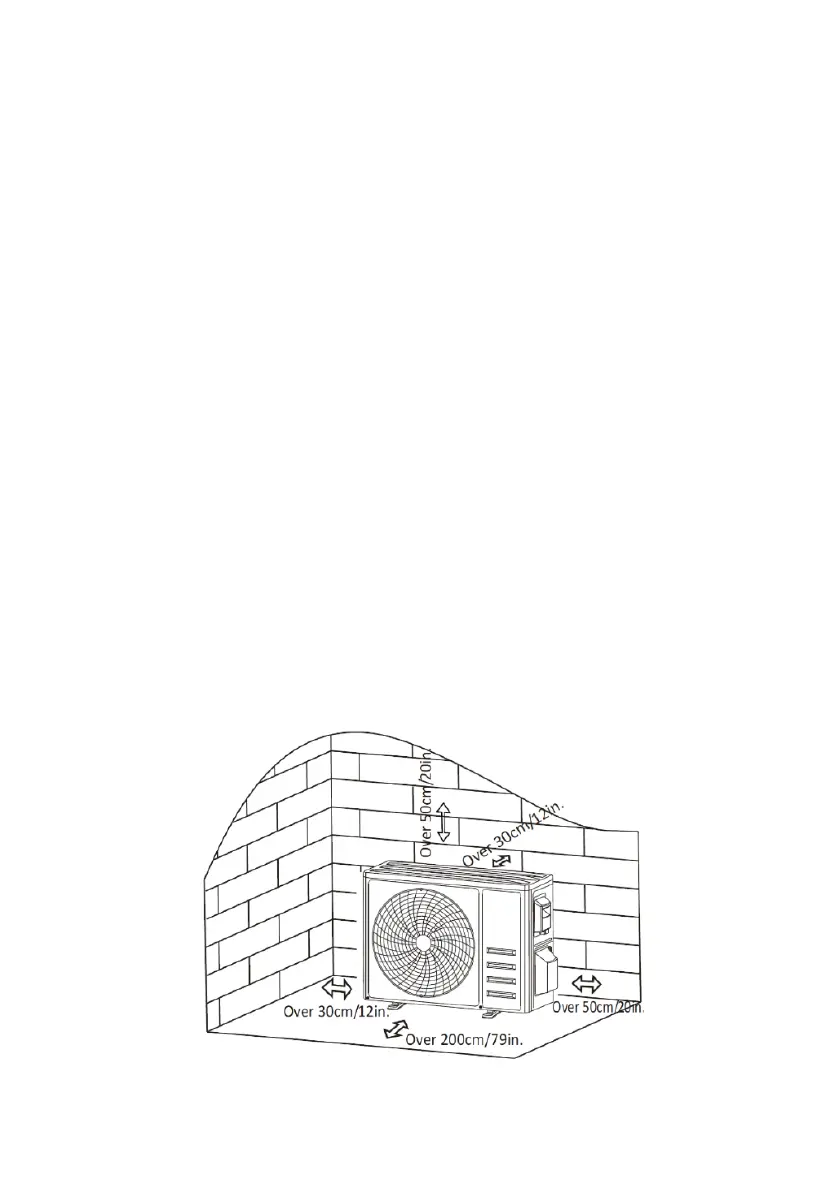

• Reserve the spaces as shown in the figure below for the air to circulate freely.
• Install the outdoor unit in a safe and solid place.
• If the unit is subject to vibration, place rubber covers onto the feet of the unit.
