Step 7: Wrap Piping and Cable
After the refrigerant pipes, connecting wires, and drainage hose are all installed, they must
be bundled with insulating tape before passing them through the wall hole. This will save
space, protect, and insulate them.

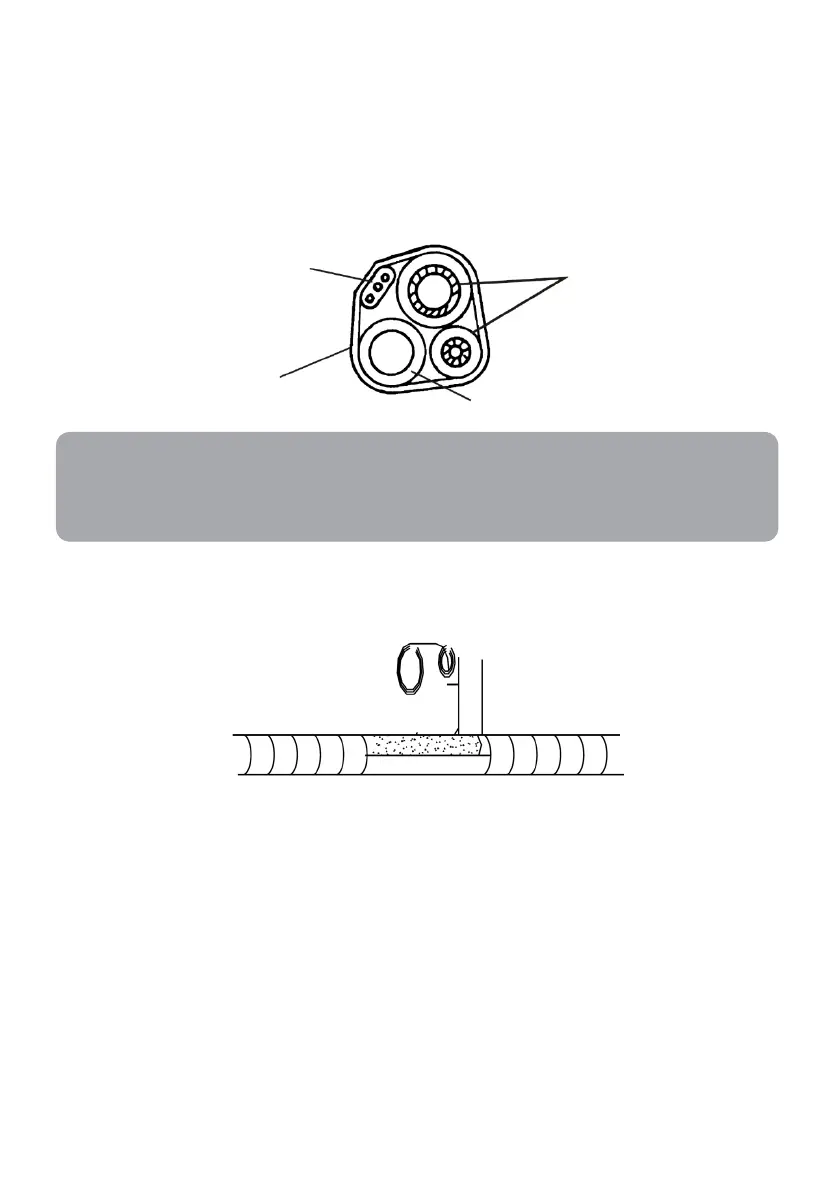

1. Arrange the pipes, cables, and drainage hose as shown in the following figure.
2. Wrap the refrigerant pipes, connecting wires, and drainage hose tightly together
using insulating tape.
Step 8: Mount the Indoor Unit
1. Slowly pass the bundled refrigerant pipes, connecting wires, and drainage hose
through the wall hole.
2. Hook the top of the indoor unit onto the mounting plate.
3. Apply slight pressure to the left and right sides of the indoor unit to ensure it is
hooked firmly.
4. Push down the bottom of the indoor unit to secure the snaps onto the hooks of the
mounting plate, ensuring it is hooked firmly.
Connecting wiring
Insulation tape
Refrigerant piping
Drainage hose
Notes:
• Ensure the drainage hose is at the bottom.
• Avoid crossing and bending the parts.
