17

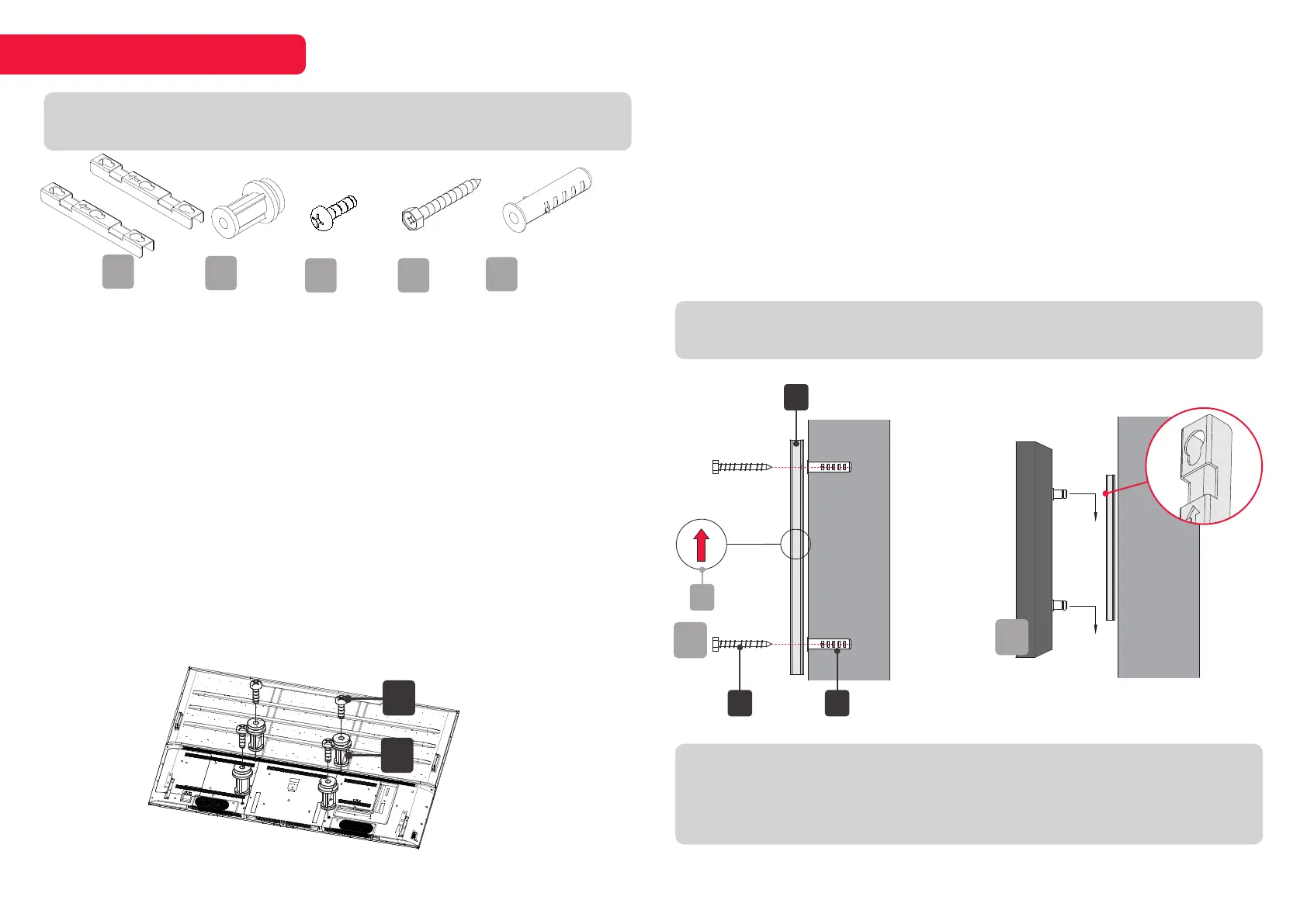

WALL MOUNTING
A
C
D
E
Wall mount kit not included. Steps below are provided as an optional
alternative to the supplied base-mounts.
NOTE:
Only use wall-mounts that match the same size screws and fittings as those
listed on this page. Other methods of wall-mounting have not been tested for
this model and can not be guaranteed to safely support the TV.
It is recommended that two people perform step 9h together to ensure the
sleeves are properly aligned before the TV is lowered onto the brackets.
9. Optional wall-mounting installation
a. Measure and double-check the distance of threaded holes on the back
panel of the TV before creating any holes in the wall.
b.
c.
d. Using a drill, create holes in the marked positions on the wall.
e. Insert the four wall anchors into the screw holes in the wall.
f. Place the mounting brackets against the wall, aligned with the wall
anchors, ensuring the directional arrow is facing upwards.
g. Fix the mounting brackets with the 60mm self-tapping screws.
h. Attach the TV to the mounting brackets by placing all four sha sleeves
into the larger openings of the brackets, then lowering the TV so that the
sha sleeves “lock” into place within the brackets.
4h
Wall
TV
B
Use screws (C) to attach sha sleeves (B) within the four threaded
holes on the back panel of the TV.
Use a mounting bracket (A) as a guide to mark the positions for the four
holes on the wall with a pencil.
(E)
9g
Wall
E
A
D
9f
A Mounting bracket (x2)
B Sha sleeve – M8 (x4)
C M8 x screw (x4)
D M6 x 60mm self-tapping
screw (x4)
E Wall anchor (x4)
C
B
