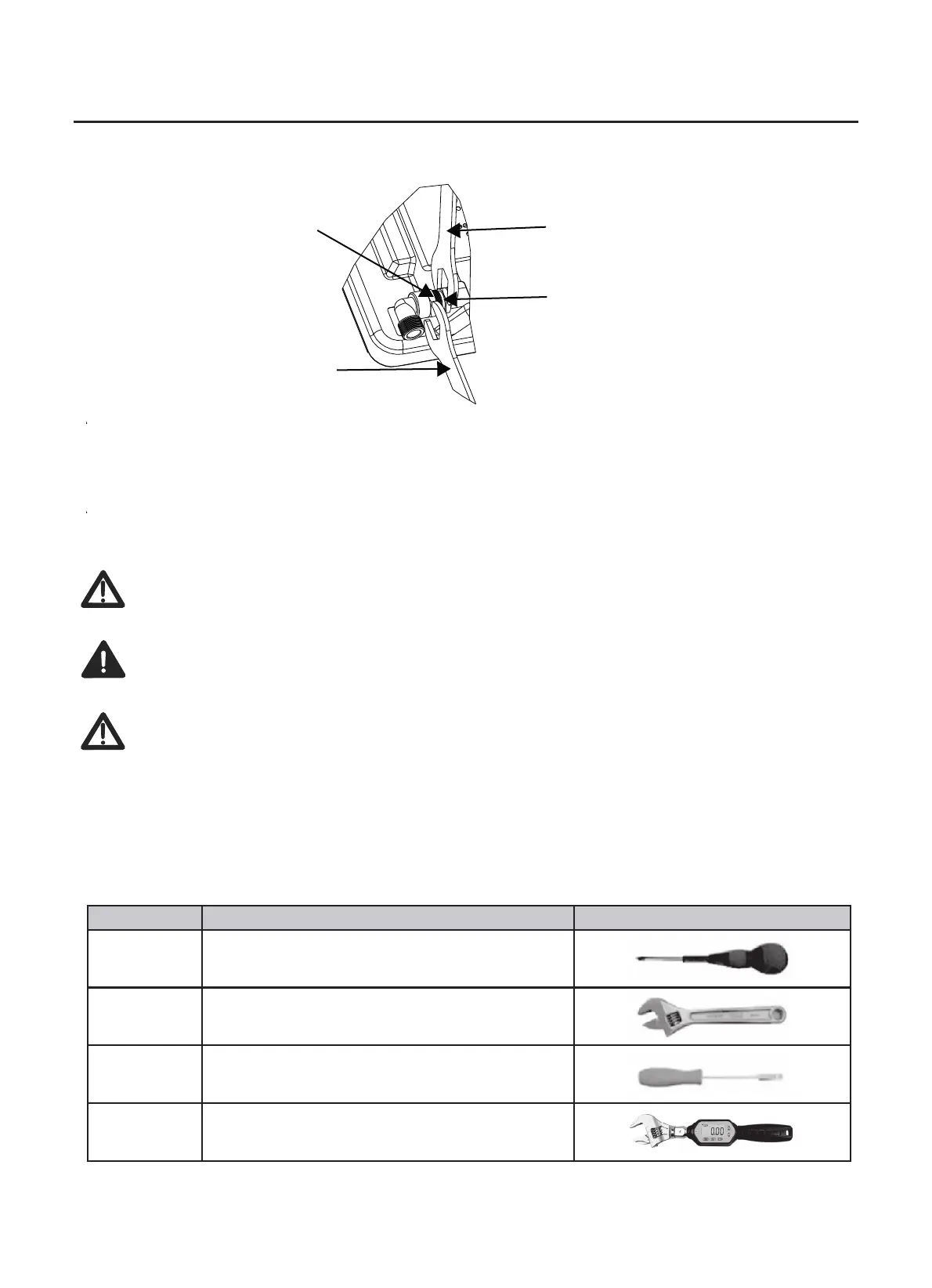

Gas Connection
Adjusting the direction of the elbow
Tighten with a
torque wrench
of 9±1N.m
The black swivel nut
connection of the gas
inlet pipe assembly
The hexagonal
head of the elbow
Use wrench to hold head of elbow immobile
After loosening the elbow, adjust the elbow interface to the required direction as necessary, and keep
the hexagonal head of the elbow immobile with a wrench. Use a 9±1N.m torque wrench to tighten the
black bolt of the gas inlet pipe assembly. Ensure that the torque of the wrench is within the required
range to prevent elbow breakage or damage caused by excessive force.
After the installation is tightened and complete, check whether the parts are in good condition and test
of the process.
Danger of leaks! Check the seal of any connection handled or adjusted..
The manufacturer is not liable for any connection leaking after being handled.
Turn off power before commencing work for personal safety and appliance protection. Close
the middle valve to prevent gas leakage.
Keep inflammable materials away from the appliance.
Put on gloves before commencing work.
CAUTION：
Allow the appliance to cool for a while after use. The high operating temperature of the
appliance may cause burns.
The following tools are recommended:
A
t
h
b
l
ra
A
o
f
Aft
he
la
an
Aft
the gas tightness to ensure the correctness of the installation. The installer is responsible for the results
f
Item
Screw driver
Tubing Wrench
7mm Vox Driver
Use for assembly and disassembly of all screws.
Use for assembly and disassembly of tubing to the
burner cup.
Use for assembly and disassembly of injector nozzles.
Torque wrench
Used for elbow installation and removal
How to use Pictures
18
