24
EN

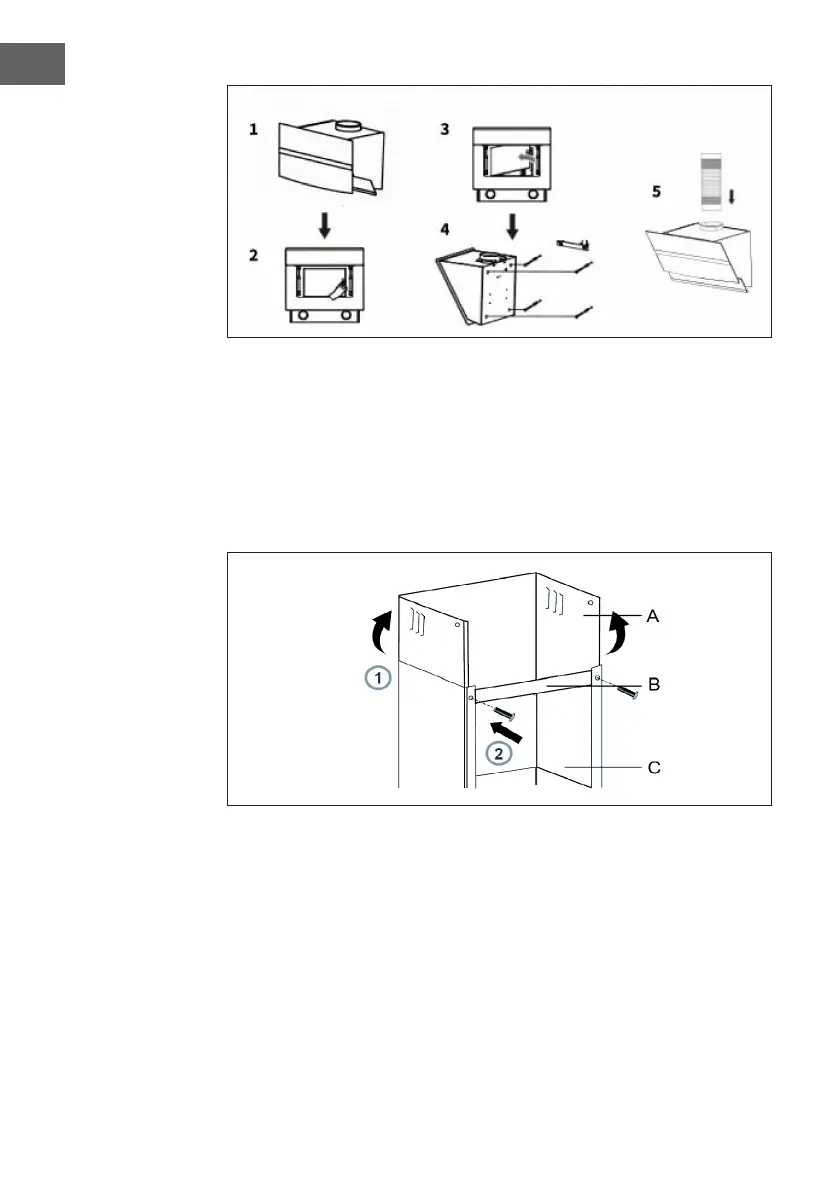

• Open the glass plate (1) and remove the metal grease lter (2-3).
• Mark the four mounting holes on the inside of the hood.
• Remove the extractor hood again. Drill four 8 mm diameter holes in the wall
at the marked locations and insert the dowels into the holes.
• Hang the extractor hood on the wall bracket and fasten it to the dowels with
the screws from the inside of the hood (4).
• Connect the exhaust hose to the outlet (5).
Chimney installation
• Use 2 pcs 4×8 mm screws to attach lower and upper chimney together, do
not fasten screws too much,make sure upper decorative chimney can be
telescopically adjusted after assembled (see illustration above).
• (A) Upper chimney, (B) Lower chimney attachment, (C) Lower chimney.
• Attach the lower wall bracket to the lower part of the chimney.
