Installation of the chimney cover
(3*10mm screw)

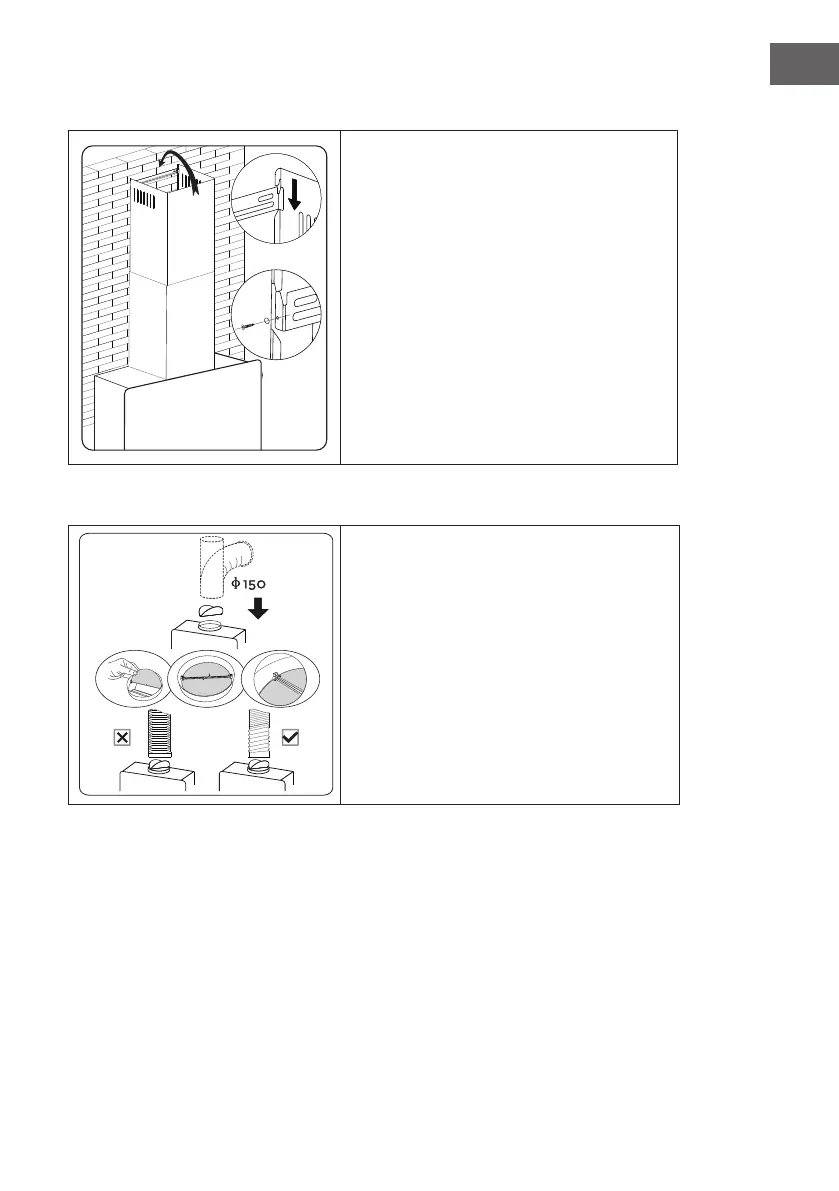

There are two methods for installing the
chimney cover. Please check the left picture
for reference.
1. After drilling the 2 holes and xing the
bracket, hang the chimney cover by
matchng both side locks (see 1).
2. After drilling the 2 holes and xing the
bracket, install the chimeny cover by locking
it with 2 screws in both side holes (see 2).
Air Outlet installation method
Installation method for 150mm diameter pipe:
• Insert the one-way-valve as shown in the
picture and x the pipe. Please note that
the bump of the onw-way-valve must be
upward.
• The pipe near the outlet needs to be fully
extended.
• To avoid the pipe sticking to the one-way-
valve please strech the pipe before installing
it.
3x5 mm screw
1
2
