18
Refer to the Quick Start Guide and online Control Guide for proper
operation of the oven controls.
Adjust Oven Bake Burner Flame (if needed)
1. Check the oven bake burner for proper flame.
This flame should have a 1/2" (1.3 cm) long inner cone of
bluish-green, with an outer mantle of dark blue, and should be
clean and soft in character. No yellow tips, blowing or lifting of
flame should occur.

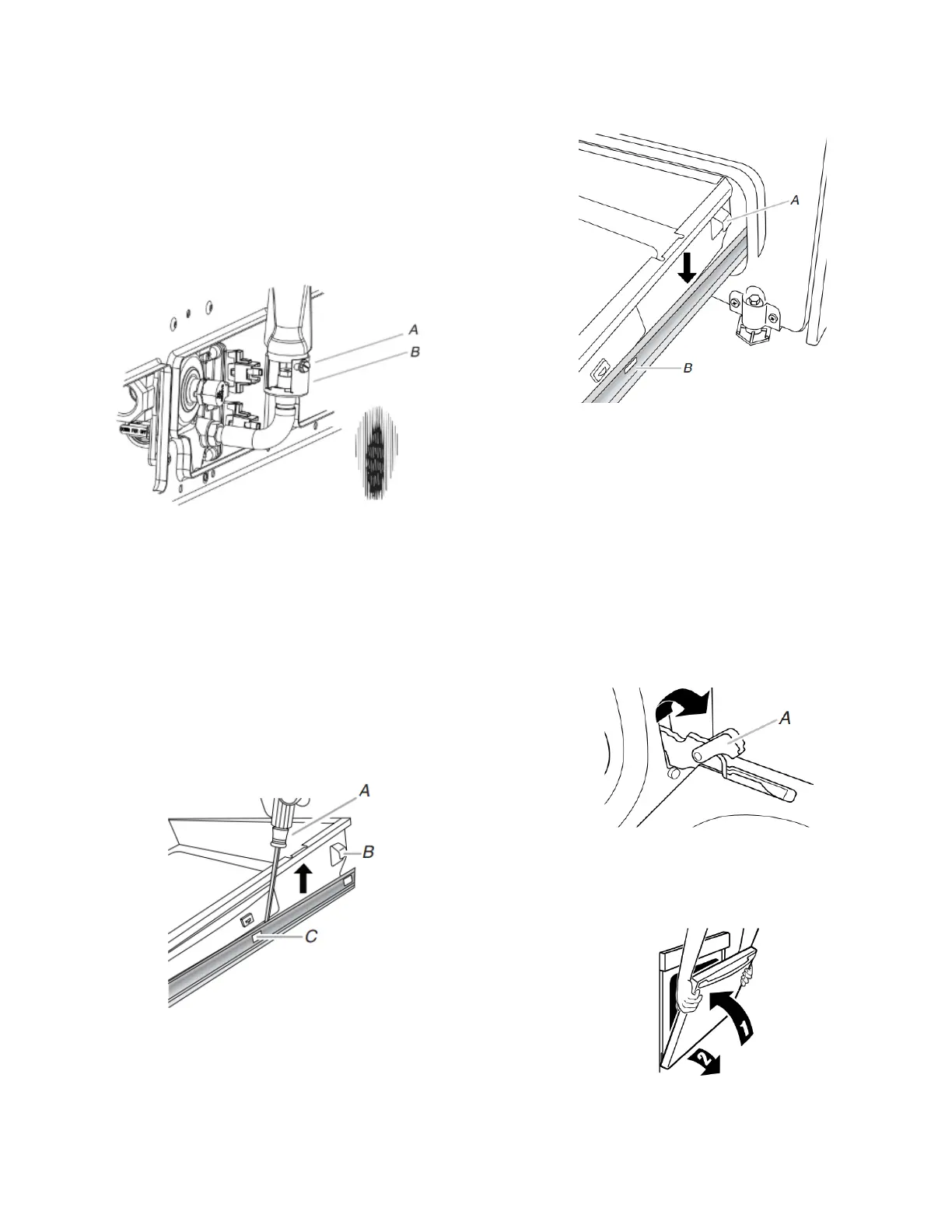

2. If the oven bake flame needs to be adjusted, locate the air
shutter near the center rear of the range. Loosen the locking
screw and rotate the air shutter until the proper flame appears.
Tighten locking screw.
A. Locking screw
B. Air shutter
3. Push CANCEL/OFF when finished.
4. Reinstall flame spreader and oven bake burner cover.
Remove/Replace Drawer
Remove all items from inside the premium storage drawer, and
then allow the range to cool completely before attempting to
remove the drawer.
To Remove:
1. Open the drawer to its fully open position.
2. Using a flat-blade screwdriver, gently loosen the drawer from
the glide alignment notch, and then lift up the drawer
alignment tab from the glide.
A. Flat-blade screwdriver
B. Drawer alignment tab
C. Drawer glide notch
3. Repeat Step 2 on the other side. The drawer is no longer
attached to the drawer glides. Using both hands, pick up the
drawer to complete the removal.
To Replace:
1. Align the forward drawer notches with the notches in the
drawer glides on both sides. Place the rear alignment tabs into
the drawer glides on both sides.
A. Drawer alignment tab
B. Drawer glide notch
2. Push the drawer in all the way.
3. Gently open and close the drawer to ensure it is seated
properly on the glides on both sides.
Oven Door
For normal range use, it is not suggested to remove the oven
door. However, if removal is necessary, make sure the oven is
OFF and cool. Then, follow these instructions. The oven door is
heavy.
To Remove:
1. Open oven door all the way.
2. Pinch the hinge latch between two fingers and pull forward.
Repeat on other side of oven door.
A. Hinge Latch
3. Close the oven door as far as it will shut.
4. Lift the oven door while holding both sides.
Continue to push the oven door closed and pull it away from
the oven door frame.
