17
Cutout Height is Between 51
3
/
16
" and 52
3
/
16
" (130.0 cm and
132.6 cm)
NOTE: For installation, the tall shield is also required to replace
the shield that came with the unit. Please refer to your Quick Start
Guide for the service number to call and request at no charge.

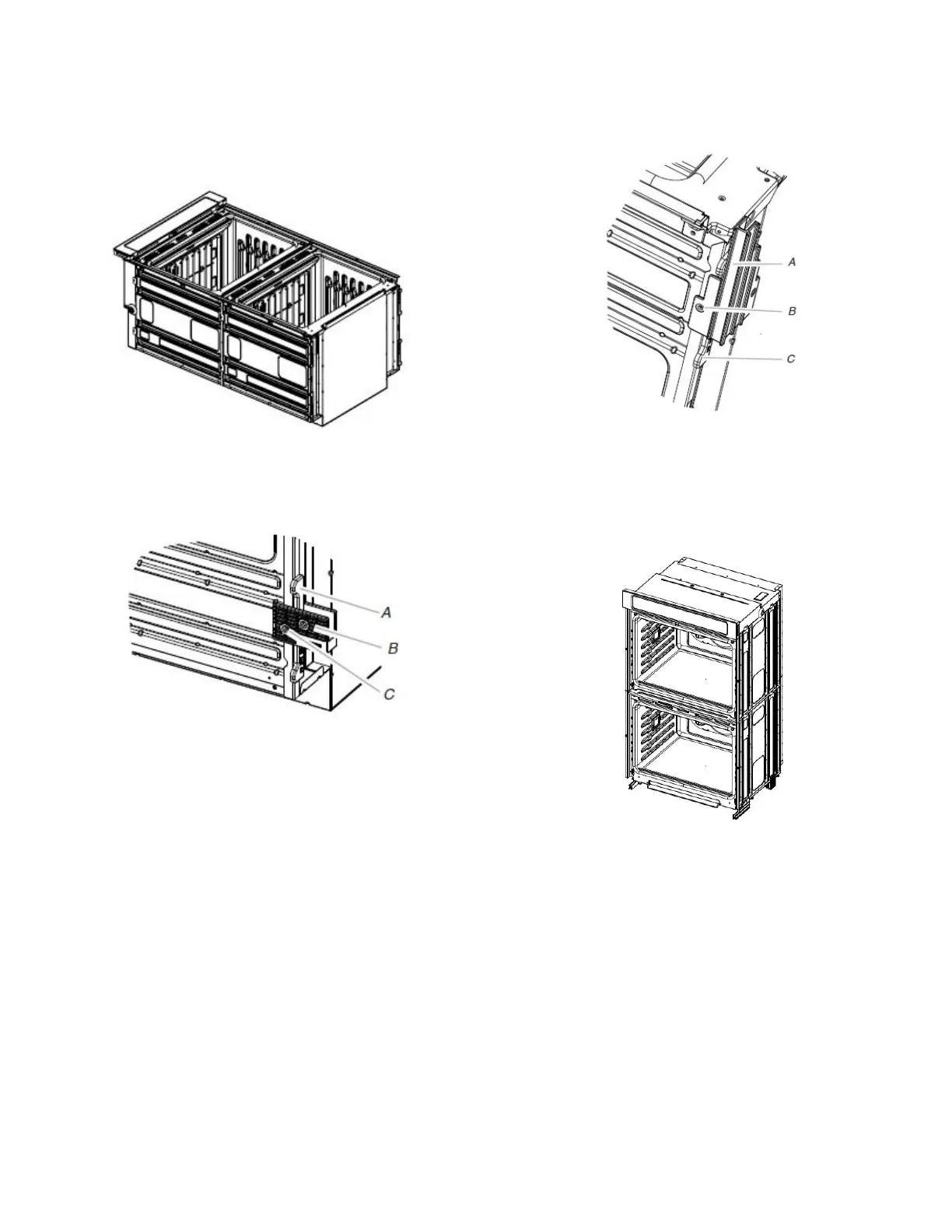

1. Using 2 or more people, place the oven on its back on a
covered surface.
2. Install a rear foot on the left rear spacer using a #8-18 x 3/8"
(9.5 mm) screw.
NOTE: Position the foot so the short side of the foot is facing
toward the top of the oven.
A. Spacer
B. Rear foot
C. #8-18 x 3/8" (9.5 mm) screw
3. In the same manner, install a foot on the right rear of the oven.
4. Install a front foot on the left front using a #8-18 x 3/8"
(9.5 mm) screw.
NOTE: Position the foot so the short side of the foot is facing
toward the top of the oven.
A. Front Foot
B. #8-18 x 3/8" (9.5 mm) screw
C. Spacer
5. In the same manner, install a front foot on the right front of the
oven.
6. Using 2 or more people, place the oven in its upright position.
7. Go to the “Make Electrical Connection” section.
