16
Cutout Height is Between 50
1
/
2
" and 51
1
/
8
" (128.2 cm and
129.9 cm) or for Flush Installation

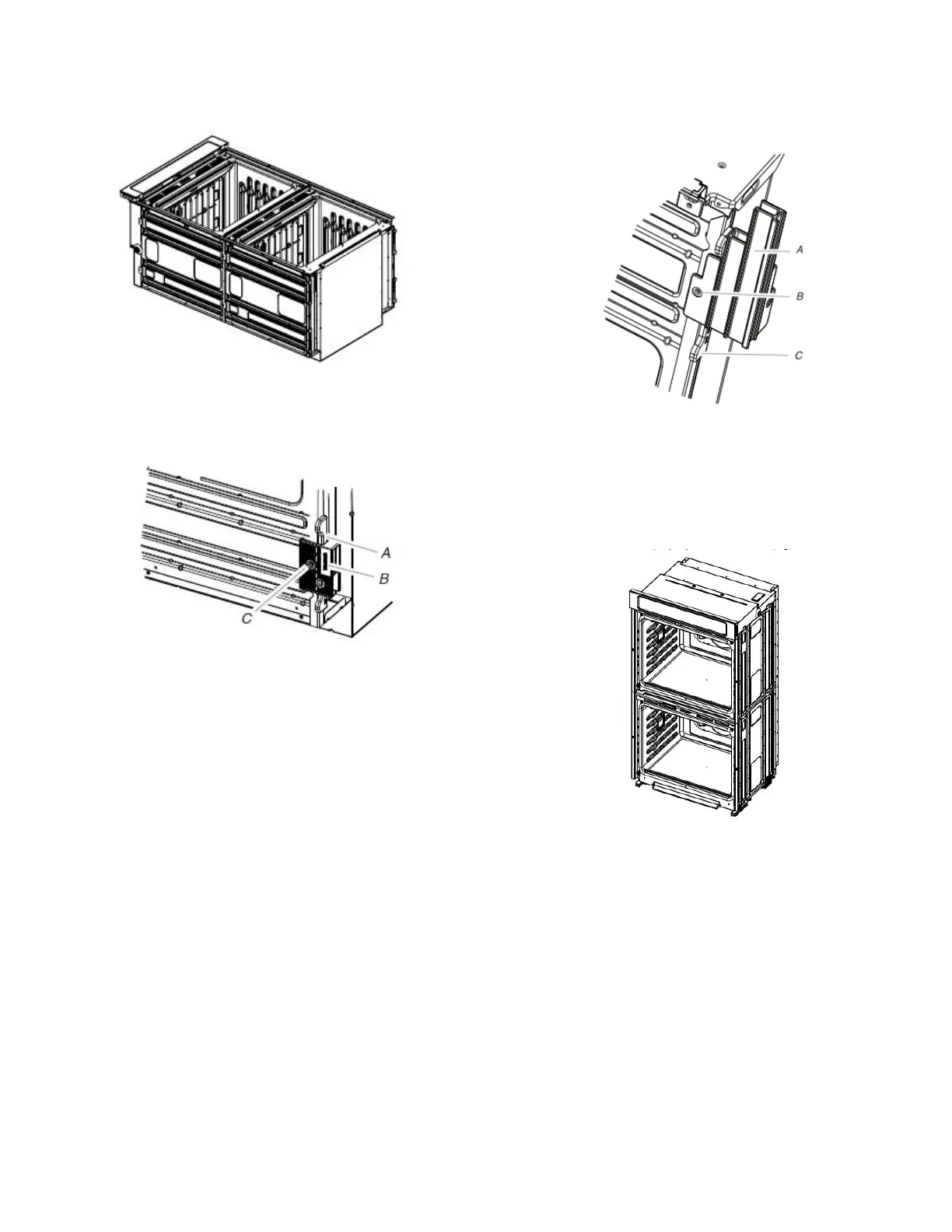

1. Using 2 or more people, place the oven on its back on a
covered surface.
2. Install a rear foot on the left rear spacer using a #8-18 x 3/8"
(9.5 mm) screw.
NOTE: Position the foot so the long side of the foot is facing
toward the top of the oven.
A. Spacer
B. Rear foot
C. #8-18 x 3/8" (9.5 mm) screw
3. In the same manner, install a rear foot on the right rear of the
oven.
4. Install a front foot on the left front spacer using a #8-18 x 3/8"
(9.5 mm) screw.
NOTE: Position the foot so the long side of the foot is facing
toward the inside of the oven.
A. Front Foot
B. #8-18 x 3/8" (9.5 mm) screw
C. Spacer
5. In the same manner, install a front foot on the right front of the
oven.
6. Using 2 or more people, place the oven in its upright position.
7. Go to the “Make Electrical Connection” section.
