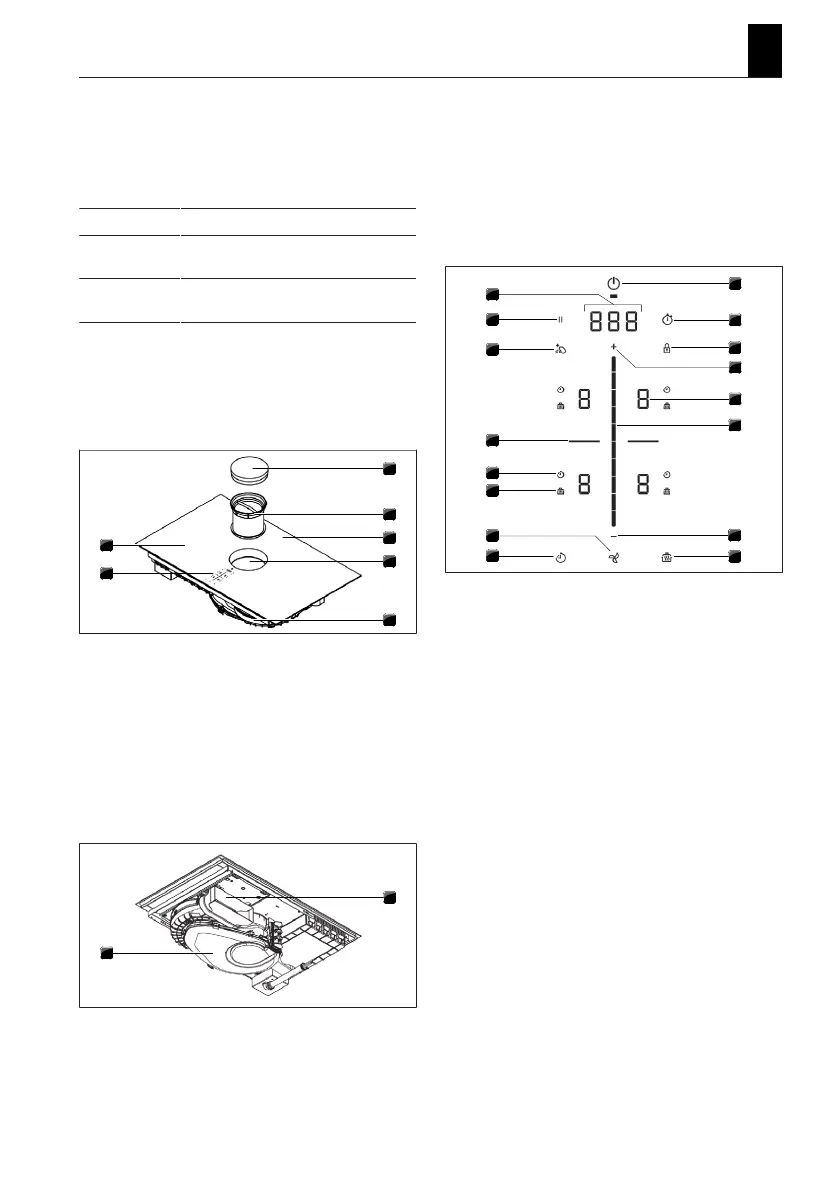

Appliance description
EN-
US
15
6 Appliance description
6.1
Model description
Model Long description
KCID930SBL KitchenAid 30" Induction Downdraft
Cooktop
KCID936SBL KitchenAid 36" Induction Downdraft
Cooktop
Tab.6.1
Model description
6.2
System description
6.2.1
Structure
1
2
3
4
5
6
7
Fig.6.1
Structure
[1] Air inlet nozzle
[2] Stainless steel grease filter
[3] Cooktop
[4] Inlet opening
[5] Fans
[6] Operating panel
[7] Cooking zone (x 4)
1
2
Fig.6.2
Exhaust air variant rear view
[1] Exhaust opening
[2] Air guiding housing with housing base
6.2.2
Operating panel
The appliance is operated via a central touch operating
panel.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Fig.6.3
Operating panel
[1] Power Button
[2] Timer Setting
[3] Control Lock
[4] Increase Setting Button
[5] Cooking Zone Indicator
[6] Control Slider
[7] Decrease Setting Button
[8] Heat Retention Button
[9] Active Zone Timer
[10] Fan
[11] Heat Retention Function Indicator
[12] Active Zone Timer Indicator
[13] Bridge XL Even- Heat Zone
[14] Control Lock Out For Cleaning
[15] Pause Button
[16] Control Display
