HANGING THE FAN (CONTINUED)
Standard Ceiling Installation

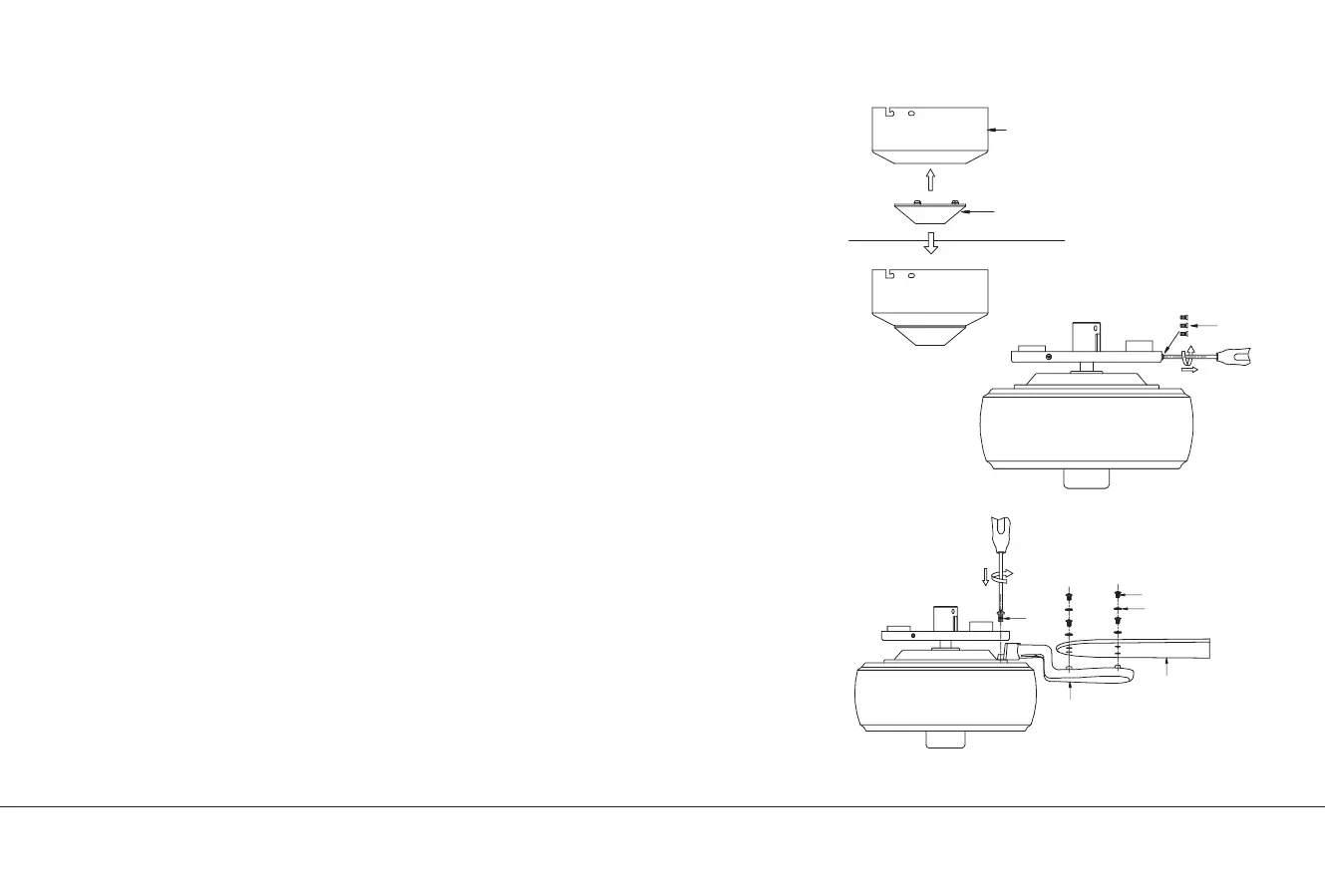

Step 3. Press canopy cover into the holes on the bottom of canopy in place (Fig 6).
Step 4. Loosen 3 screws from the wire plate (Fig. 7)
Step 5. Attach the fan blade (Fig. 8)
Caution: Remove the styrofoam blocks under the wire plate and clean up any
residue in motor housing before starting installation.
A. Fasten the blade bracket to motor using pre-installed mounting screws
through the hole on wire plate.
B. Attach the blade to the blade bracket using the screws and washers as
shown in Fig 8. Start screw into bracket. Repeat for the remaining screws.
C. Make sure the blade is straight and tighten each screw.
Step 6. Remove the hanger ball from the downrod assembly by loosening the set
screw, unscrewing and removing the cross pin and unscrewing the ball o the rod.
(Fig. 9)
Step 7. Loosen the two set screws and remove the hitch pin and retaining clip from
the coupling on the top of the motor assembly. (Fig. 10)
Fig. 6
Fig. 7
Fig. 8
Canopy
Canopy Cover
Screws
Screws
Screws
Fiber Washers
Blades
Blades
Bracket
60" Humble | 9
