8 | KICHLER.COM
Fig. 5
Screw (included
with outlet box)
Flat Washer(included
with outlet box)
Outlet Box
Mounting Bracket
Fig. 7
Set Screw
Motor Coupling
CAUTION: To avoid possible electrical shock, be sure you have turned
o the power at the main circuit panel.
REMEMBER to turn o the power before you begin installation. This is
necessary for your safety and also the proper programming of the
control system. To properly install your ceiling fan, follow the steps below.

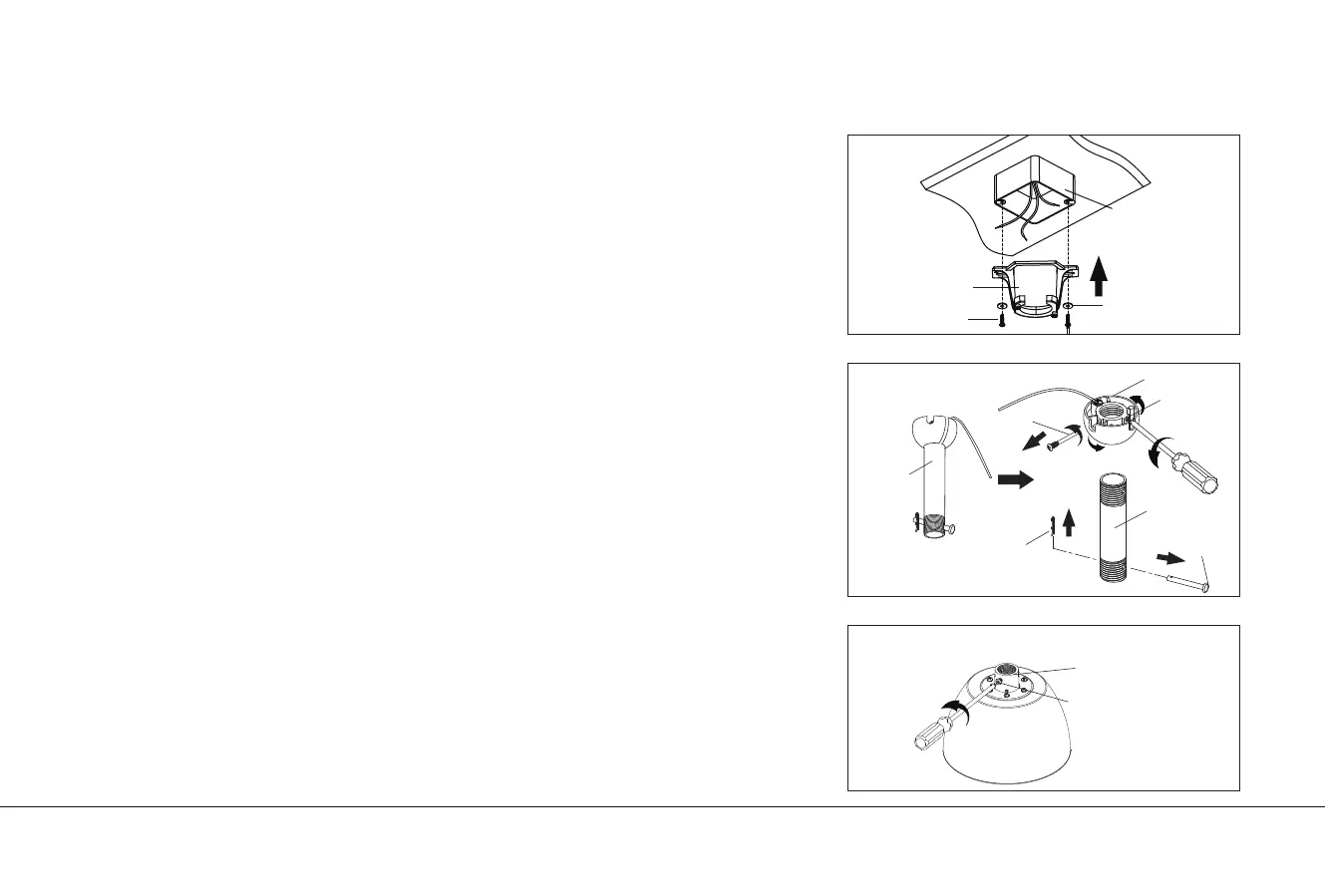

Step 1. Before attaching the fan to outlet box (not included), ensure the
outlet box is securely fastened to at least two points to a structural ceiling
member (a loose box will cause the fan to wobble). Pass the 120 volt
supply wires from the ceiling outlet box through the center of the ceiling
mounting bracket. Install mounting bracket to outlet box in ceiling using
the screws and washers included with the outlet box. (Fig. 5)
Step 2. Remove the retaining clip and hitch pin from the downrod assembly.
Remove the hanger ball from the downrod assembly by loosening the set
screw on the hanger ball (do not remove), unscrewing and removing the
cross pin, and unscrewing the hanger ball (counterclockwise) from the
downrod. (Fig. 6)
Step 3. Loosen the two set screws (do not remove) on the motor coupling.
(Fig. 7)
HANGING THE FAN
Retaining Clip
Cross Pin
Hitch Pin
Downrod
Assembly
Set Screw
Downrod
Hanger Ball
Fig. 6
