13
13. INSTALLING THE COOLTOUCH
™
CONTROL SYSTEM WALL PLATE
14. INSTALLING THE TRANSMITTER
1. Insert the transmitter into the wall plate by
inserting the bottom of the transmitter first and
then press the top of the transmitter into the
pocket. The transmitter will fully function from this
location or you can remove the transmitter and
use as a "Hand Held" device. (Fig. 28)
2. To remove the transmitter from the wall plate,
push the release button and the transmitter will fall
into your hand.
NOTE: All wiring must be in accordance with the
National Electrical Code and local electrical codes.
Electrical installation should be performed by a
qualified licensed electrician.
Select a location to install your CoolTouch™
Control System Transmitter. You can replace an
existing wall switch or, install the transmitter on
ANY flat surface.
Option 1: Install the control system using an
existing wall switch outlet box. Make sure the
electrical power is TURNED OFF at the main panel
before continuing.
NOTE: Switch installation must comply with all
local and national electric code.

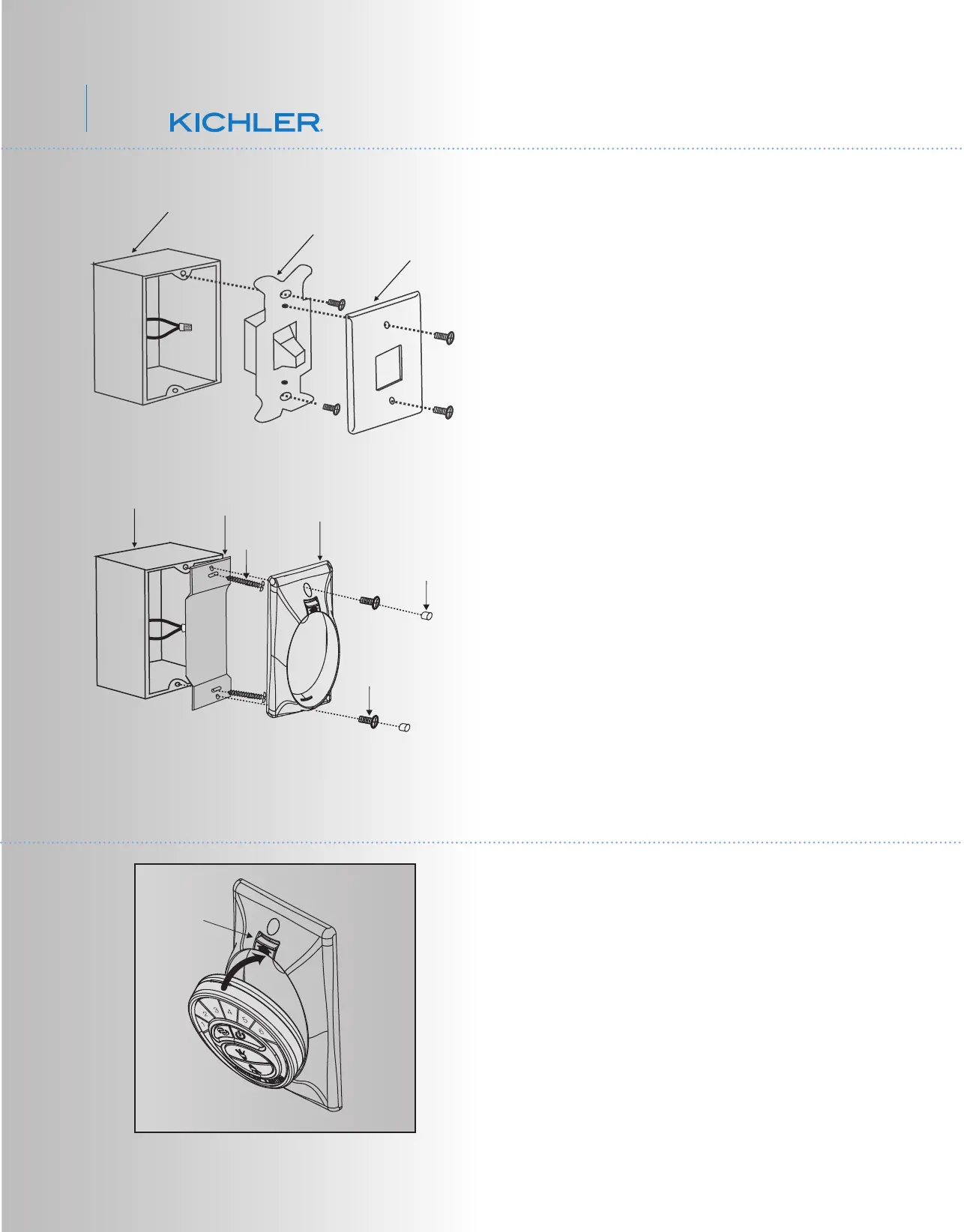

Step 1. Remove the existing wall plate and the old
switch from the wall outlet box. Wire nut the
BLACK leads (hot) together and push back inside
the outlet box. (Fig. 26)
Step 2. Install the metal plate and CoolTouch™
wall plate to the existing wall outlet box with 4
screws provided. Then place the two plastic
plugs into the wall plate. (Fig. 27)
Option 2: Install the control system on ANY flat
surface.
Select the desired location and use the CoolTouch
™ wall plate to mark the location for the mounting
holes. Use the dry wall anchors and/or screws
provided and finish the installation.
Fig. 26
Fig. 27
Wall plate
Switch
Outlet box
Screws
Screws
Plastic plugs
CoolTouch
™
wall plate
Outlet box
Metal plate
Release
button
Fig. 28
