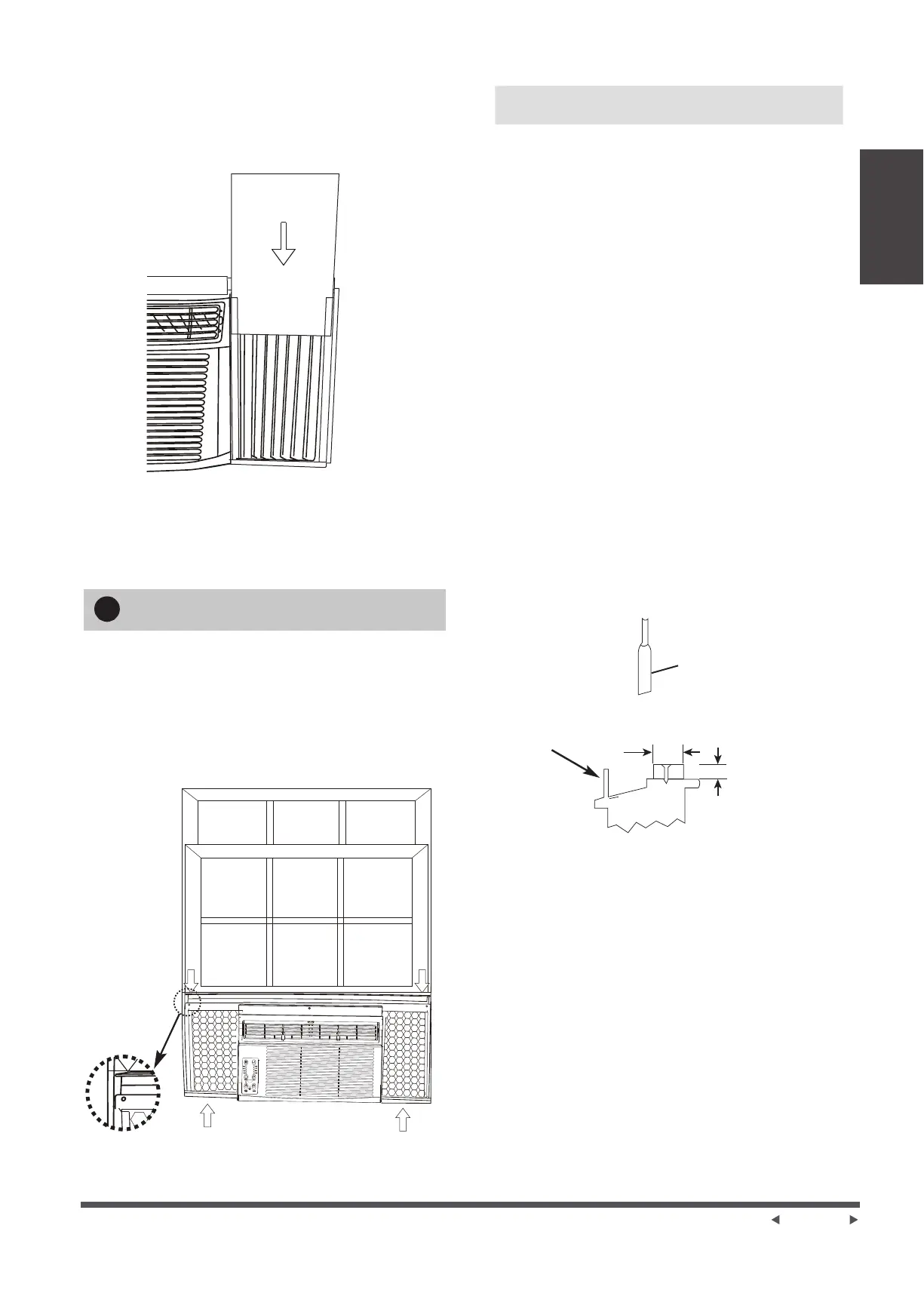

Installation
Instructions
8
INSTALL WEATHER STRIPPING
Fig.13
Fig.14
Step 3. Slide the R1 insulation panel into the side
curtain, the side with pattern should facing the
indoor side.(Fig.13)
Step 4. Repeat on the other side.
In order to minimize air leaks between the room
air conditoner and the window opening, trim the
weather stripping with a proper length, peel off
the protective backing and plug any gaps if
needed (Fig .14).
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
If AC is Blocked by Storm Window
Fig.15
Add wood as shown in Fig.15, or remove
storm window before air conditioner is
installed.
If Storm Window Frame must remain, be sure
the drain holes or slots are not caulked or
painted shut. Accumulated Rain Water or
Condensation must be allowed to drain out.
Removing AC From Window
Turn AC off, and disconnect power cord.
Remove sash seal from between windows, and
unscrew safety sash lock.
Remove screws installed through frame and
frame- lock.
Remove the R1 Panel and close (slide) side panels
into frame.
Keeping a firm grip on air conditioner, raise sash
and carefully remove.
Be carefully not to spill any remaining water while
lifting unit from window. Store parts WITH air
conditioner.
