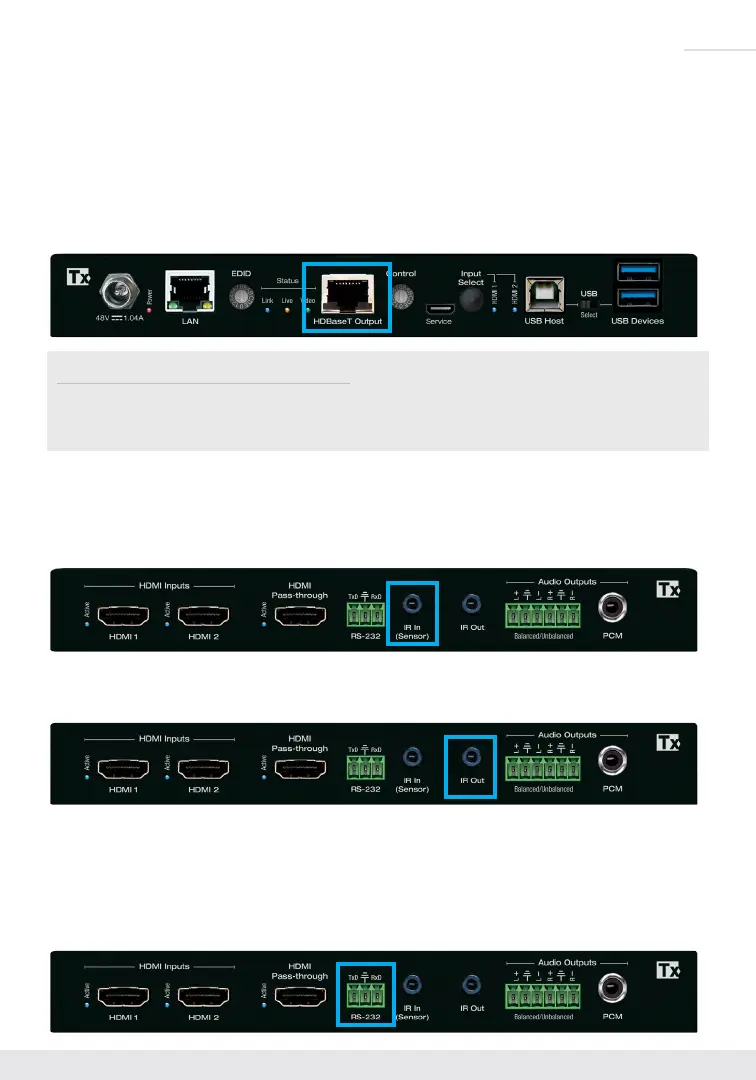

› HDBaseT Output: Connect a CAT5e/6 cable to the Rx unit / presentation switch at the port labeled

“HDBaseT In”

» 4K/UHD (18G): Up to 100m / 328ft

» 1080p: Up to 150m / 492ft in Long Range Mode

» Must connect with KD-UPS52U, KD-X100MRx, KD-PS42, or KD-X40MRx only

» Compatible with third-party HDBaseT Rx

» Power over HDBaseT from Rx

Use with third-party HDBaseT Tx or Rx

The KD-PS22UTx is compatible with third-party HDBaseT or other Key Digital HDBaseT products.

Power must be applied to KD-PS22UTx.

› IR In: The included IR sensor can be connected to the unit via this port.

» Corresponds with the IR Out port on the Rx device (KD-X100MRx or KD-UPS52U).

» Use the Control Rotary to choose IR Sensor mode or Serial IR mode (ie hard-wired IR from

professional control system or IR connection block)

› IR Out: The included IR emitter can be connected to the unit via this port.

» Corresponds with the IR In port on the Rx device (KD-X100MRx or KD-UPS52U)

› RS-232 Terminal: Connect with control system for pass-thru of bi-directional RS-232 signals to/

from controlled device.

» Supports baud rate up to 115,200bps

» KD-PS22UTx is not controllable via RS-232

» Corresponds with the RS-232 terminal on Presentation Switch or the Rx device if no Presentation

Switch is used
