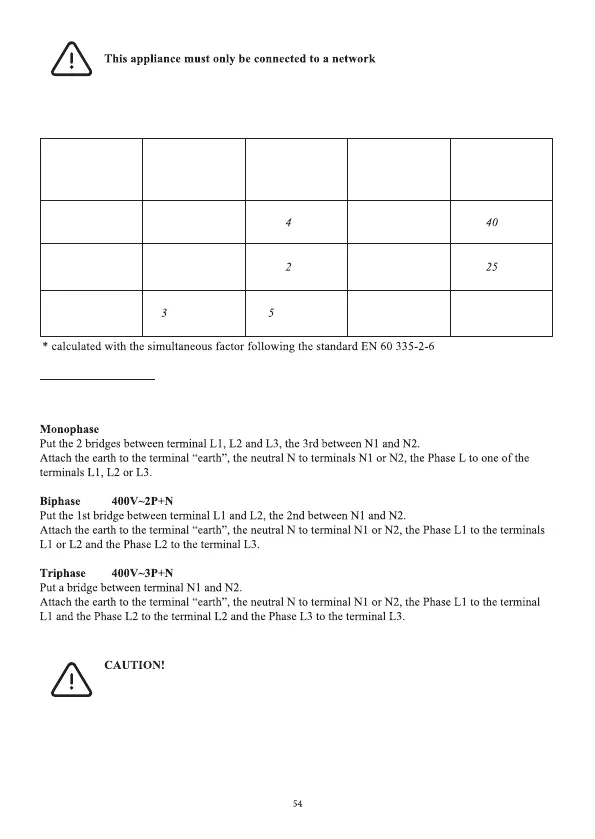

For the various kinds of connection, use the brass bridges which are in the box next the terminal
Frequent loosening and screwing of the screws on the connection box risks damaging
the efficiency of the tightness once screwed. It is therefore advisable to keep screwing
and unscrewing to a minimum. Ensure that the cables are correctly inserted and tightly
screwed down. 4 weeks after installation, be sure to tighten again the screws in the terminal block.
We cannot be held responsible for any incident resulting from incorrect connection or which could
arise from the use of an appliance which has not been earthed or has been equipped w
ith a faulty
earth connection.
Mains Connection Cable diameter Cable
Protection
calibre
230V~ 50/60Hz 1 Phase + N 3 x
mm² H 05 VV - F A *
400V~ 50/60Hz 2 Phases + N 4 x
,5 mm² H 05 RR - F A *
CAUTION!
Always connect the earth wire.
Respect the connection diagram.
The connection box is located underneath at the back of the hob casing. To open the cover use a
medium screwdriver. Place it in the slits and open the cover.
Connection of the hob
400V~ 50/60Hz
Phases + N x 1,5 mm² H 05 RR - F 16 A *
220-240V~
50/60Hz
220-240V~ 50/60Hz.
220-240V~ 1P+N
