INSTALLATION AND CONNECTIONS

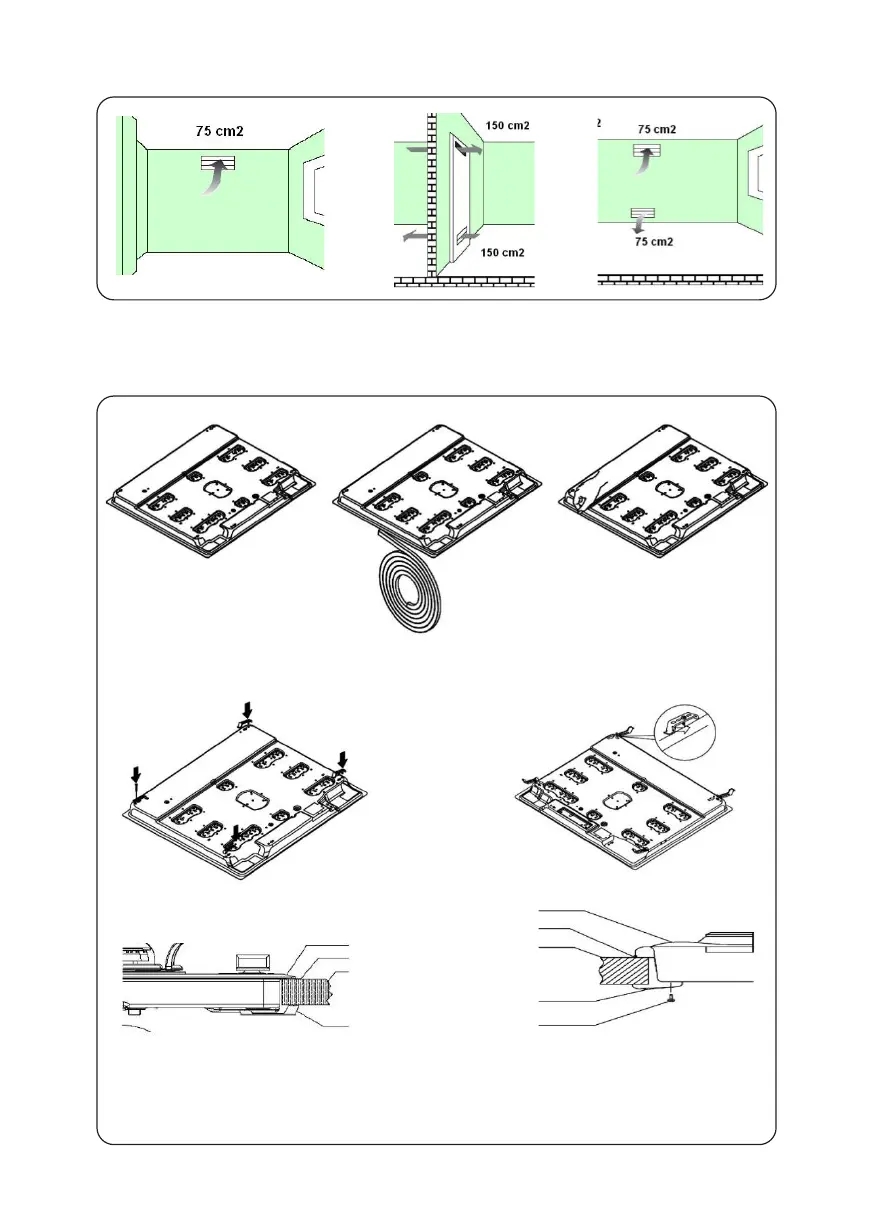

Preparation of the built-it range prior to installation
Figure 1
Figure 2
Figure 3
Turn upside down range in the
Styrofoam in the package and
apply the silicon.
In case of inox products, apply
the silicon on inox surface, and in
case of glass range products apply
to the glass surface
Apply the silicon supplied in
the package around the range
as shown in the figure.
Mounting legs
connection holes.
Place the mounting legs
as shown in the figure.
Figure 4 Figure 5
1. Glass
2. Silicon Seal
3. Tray
4. Connection Element
5. Upper Tray
6. Silicon Seal
7. Counter Surface
8. Connection Clips
9. Screw
Figure 6
1
2
3
4
5
6
7
8
9
