52

•

Tighten the plastic parts of the connections by hand. If in any doubt, consult a qualified plumber.

•

Water flow with pressure of 0. 1-1 Mpa will allow your machine to operate at optimum efficiency

(pressure of 0. 1 Mpa means that more than 8 litres of water per minute will flow through a

fully opened tap).

3. Once you have made all of the connections, carefully turn the water supply on and check for

leaks.

4. Ensure that the new water inlet hoses are not trapped, kinked, twisted, folded or crushed.

•

If your machine has a hot water inlet connection, the temperature of the hot water supply should

not be higher than 70°C.

NOTE

Your Washing Machine must only be connected to your water supply using the supplied new

fill hose. Old hoses must not be reused.

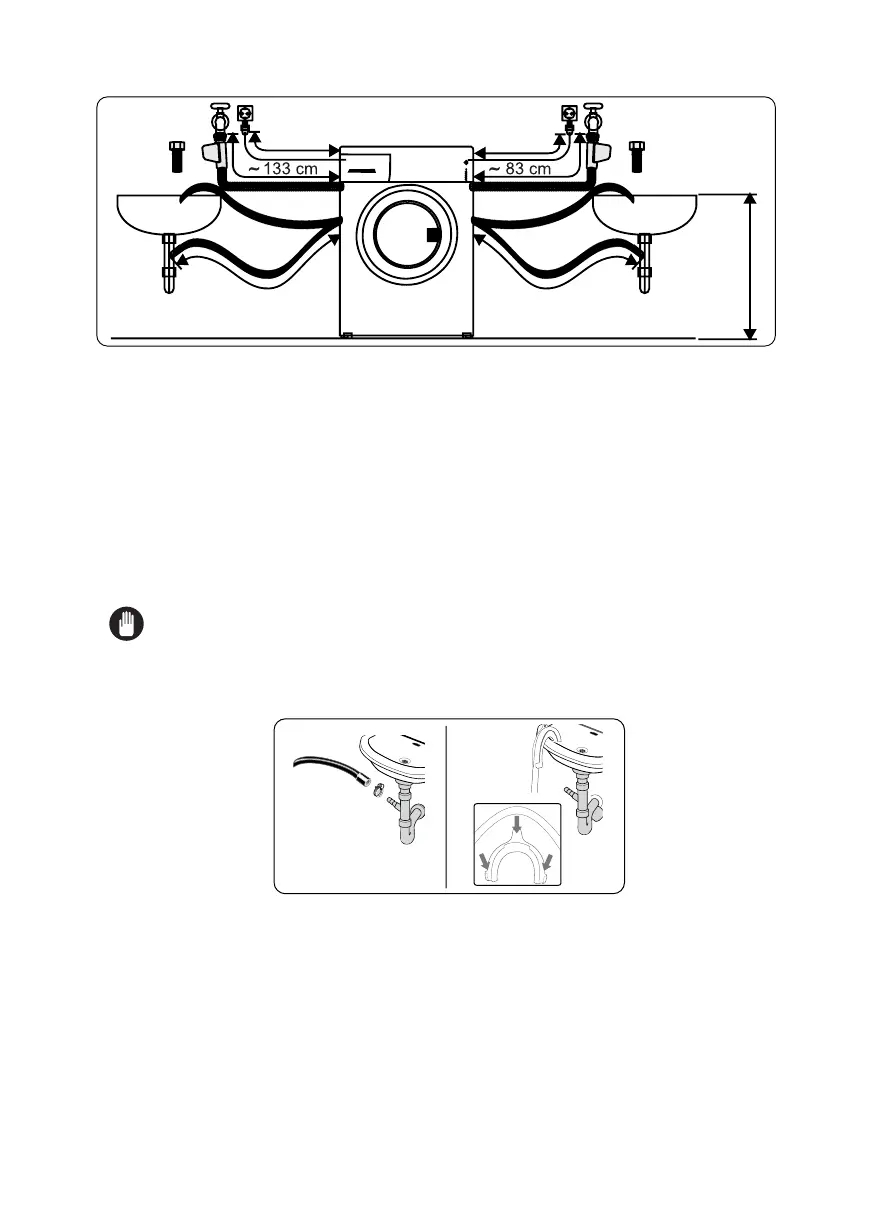

WATER DISCHARGE CONNECTION

• Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using

additional equipment.

• Never attempt to extend the water drain hose.

• Do not put the water drain hose from your machine into a container, bucket or bathtub.

• Make sure that the water drain hose is not bent, buckled, crushed or extended.

• The water drain hose must be installed at a maximum height of 100 cm from the ground.

~ 95 cm ~ 140 cm

0 – max. 100 cm

˜

95 cm

150 cm
