51

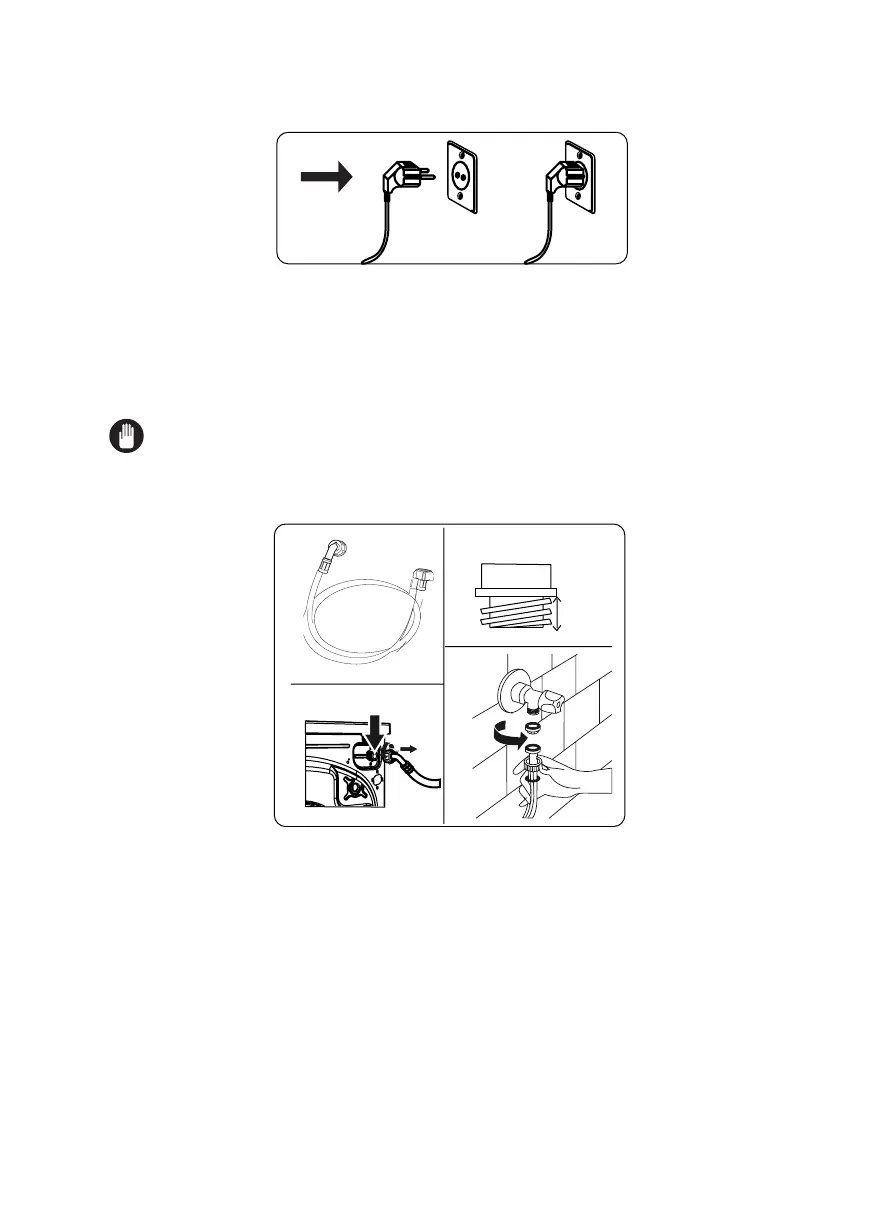

ELECTRICAL CONNECTION

• Your Washing Machine requires a 220-240V, 50 mains supply.

• The mains cord of your washing machine is equipped with an earthed plug. This plug should

always be inserted to an earthed socket of 10 amps.

• If you do not have a suitable socket and fuse conforming with this, please ensure the work is

carried out by a qualified electrician.

• We do not take responsibility for damage that occurs due to the use of ungrounded equipment.

NOTE

Operating your machine with low voltage will cause the life cycle of your machine to be

reduced and its performance to be restricted.

1.

Your machine may have either a single water inlet connection (cold) or double water inlet

connection (hot and cold) depending on the machine specifications. The white capped hose

should be connected to cold water inlet and red capped hose to the hot water inlet (if applicable).

•

To prevent water leaks at the joints, either 1 or 2 nuts (depending on your machine’s specifications)

are supplied in the packaging with the hose. Fit these nuts to the end(s) of the water inlet hose

that connect to the water supply.

2. Connect new water inlet hoses to a ¾ ˝, threaded tap.

• Connect the white capped end of the water inlet hose to the white water inlet valve on the rear

side of the machine and the red capped end of the hose to the red water inlet valve (if applicable).

1

3

2

4

10 mm

3/4”

WATER INLET HOSE CONNECTION
