5. Install the outside chimney bracket onto the outside chimney with 2pc ST4*8mm screws, here should be
sure the inside chimney can be flexed freely.See Pic 5.
6. Fix the cooker hood with 2pcs ST4*30mm safety screws.
NOTE:
The two safety vents are positioned on the back housing, with a diameter of 6mm. Put the two
chimneys onto the cooker hood, fix the outside chimney on the wall with 2pcs ST4*40mm
screws and lead the expansion pipe to the outside. See pic 6.
Pic. 5
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize pressure loss.
•
Failure to observe these basic instructions will reduce the performance and increase noise levels
of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent person.
•
Do not connect the ducting system of the hood to any existing ventilation system which is being
used for any other appliance ,such as warmer tube, gas tube , hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120º; you must direct the
pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be
led to an outer wall.
•
After the installation ,make sure that the cooker hood is level to avoid grease collection at on end.
•
Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.
inside chimney
outside chimney
outside chimney bracket

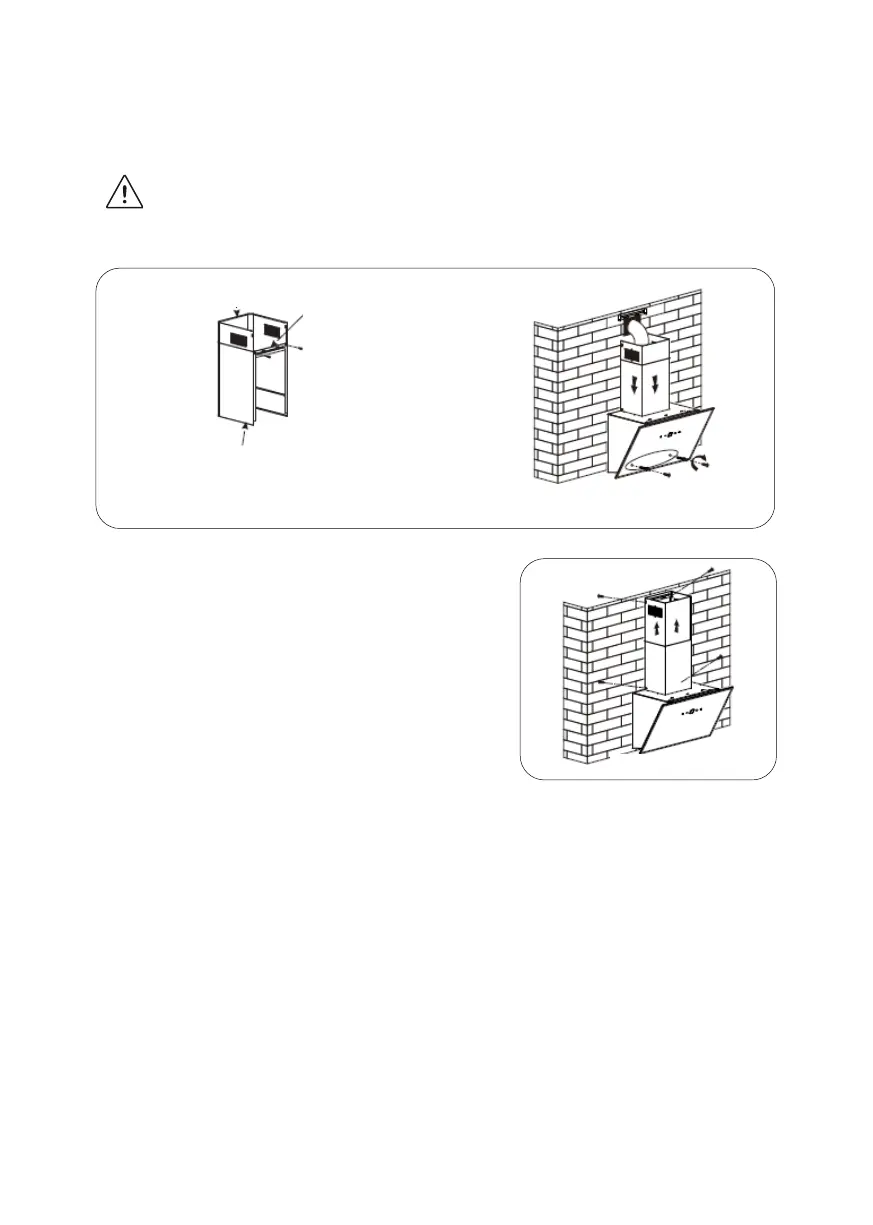

7. Adjust the height of the inside chimney to the position of
the inside chimney bracket and fix on it with 2pcs ST4*8mm
screws. Then fix the outside chimney onto the hood body
with 2pcs ST4*8mm screws.See Pic 7.
Pic. 7
Pic. 6
