2. The cooker hood should be placed at a distance of 65~75cm above
the cooking surface for best effect.
3. After decide the cooker hood height, measure the position of the holes for hanging hood , inside chimney
bracket ,outside chimney bracket and safety holes. Drill 8 φ8 holes and insert wall plugs into the holes.
Fix the inside chimney bracket on the wall with 2pcs ST4 x 40mm screws. Screw 2pcs ST4 x 8mm screws
in the hole for hanging the hood body and the screws installed should leave for 3-5mm out of the wall to
hang the hood.The fixed position of the inside chimney bracket is the highest place of chimney. See pic 2.
4. Install the v-flap and expansion pipe onto the cooker hood. Fix the expansion pipe on the outlet with a
cable tie. See Pic 3. Hang the cooker hood onto the hanging screw. See pic 4.

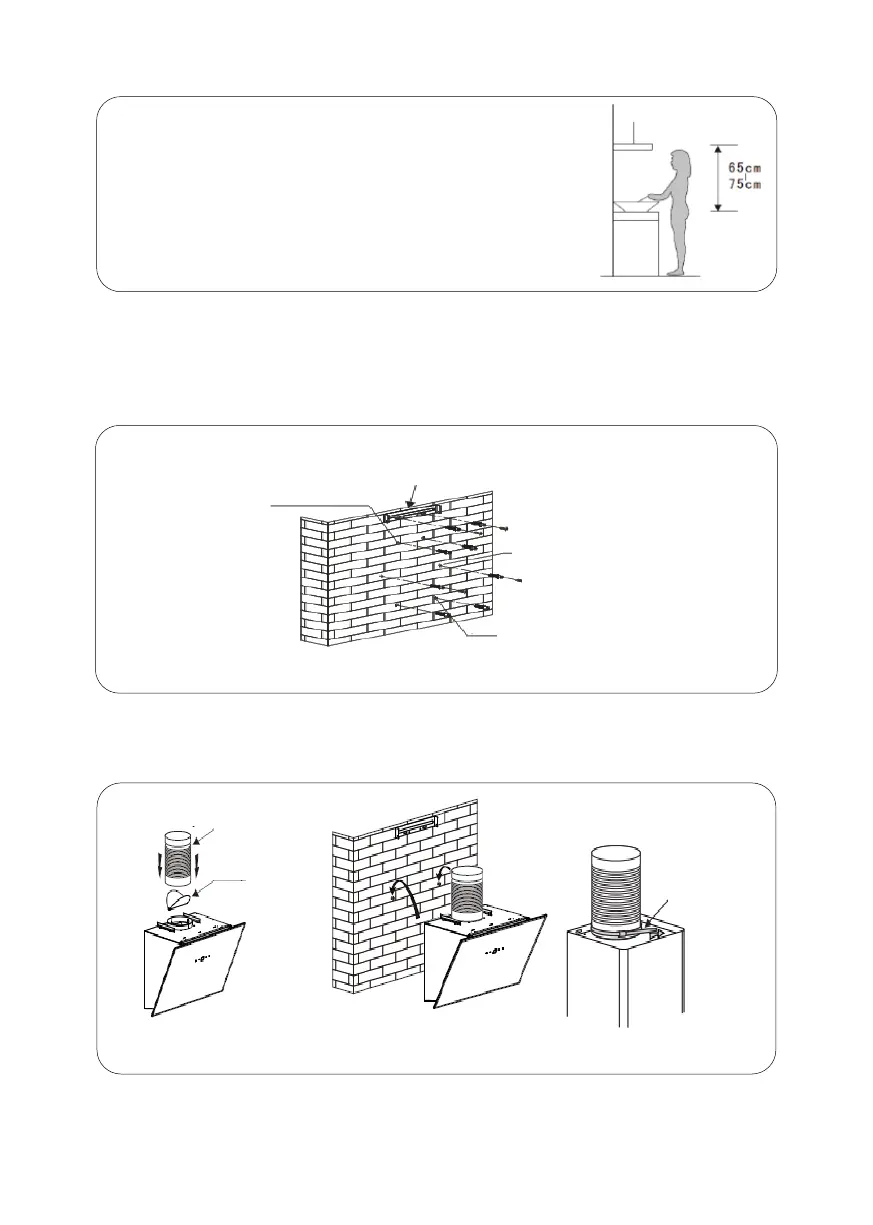

Pic. 2
Pic. 1
Pic. 3
expansion pipe
V-flap
safety
holes
hole forhanging
the hood body
hole for inside
chimney bracket
hole for outside
chimney bracket
cable
tie
Pic. 4
