23

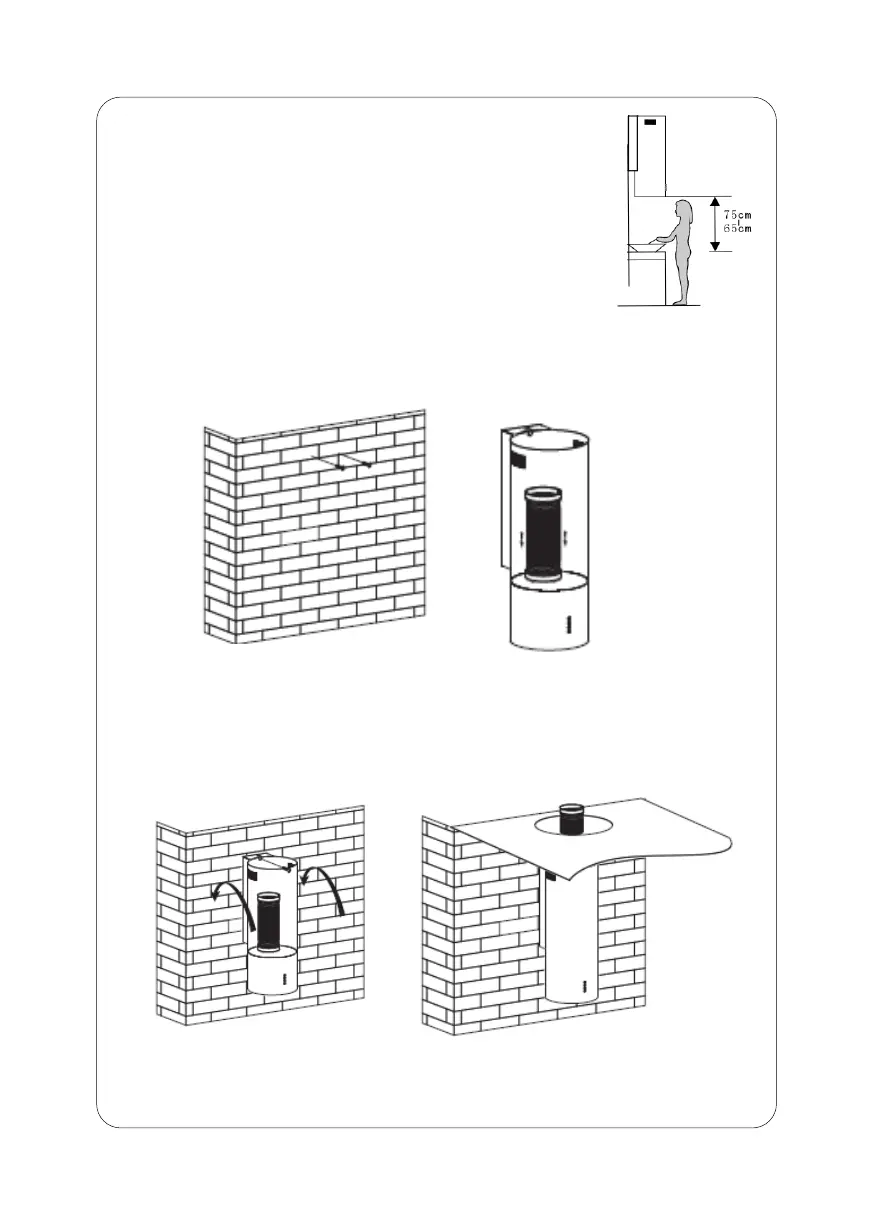

2. The cooker hood should be placed at a distance of 65~75cm above the
cooking surface for best effect.
Pic. 1
3. Drill 3pcs φ8 holes on a suitable place of the wall once the installation height is fixed.
4. Put the wall plugs into the holes,screw the 2pcs ST4*30mm screws halfway in the wall plugs to fix
the hood body.See Pic 2.
Pic. 2 Pic. 3
5. Install the v-flap and expansion pipe onto the cooker hood,and fix the expansion pipe with a cable
tie.See Pic 3.
6. Hang the hood onto the screws,then fix the body with 1pc ST4*30mm safety screw.
Note: The two safety vents are positioned on the back housing, with a diameter of 6mm.See Pic 4.
Pic. 4
Pic. 5
7. Lead the expansion pipe to outdoor.See Pic 5.
