22
CHAPTER 2. INSTALLATION (VENT OUTSIDE)

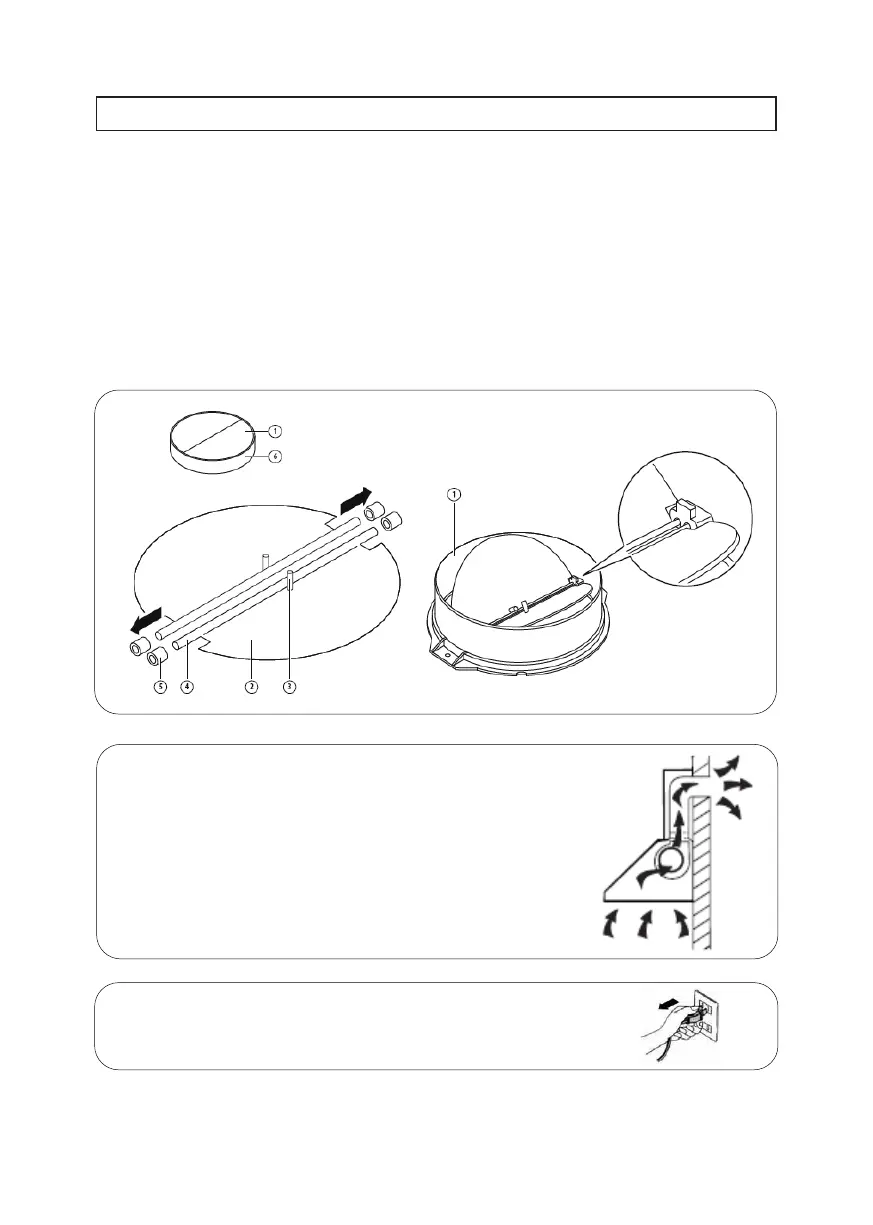

MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half parts to its body.The
images only show an example of how to mount the V-flap, because the outlet may vary according to different
models and configurations.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as
below picture by means of an extraction duct (enamel, aluminum, flexible
pipe or non flammable material with an interior diameter of 120/150mm)
1. Before installation, turn the unit off and unplug it from the outlet.
