14

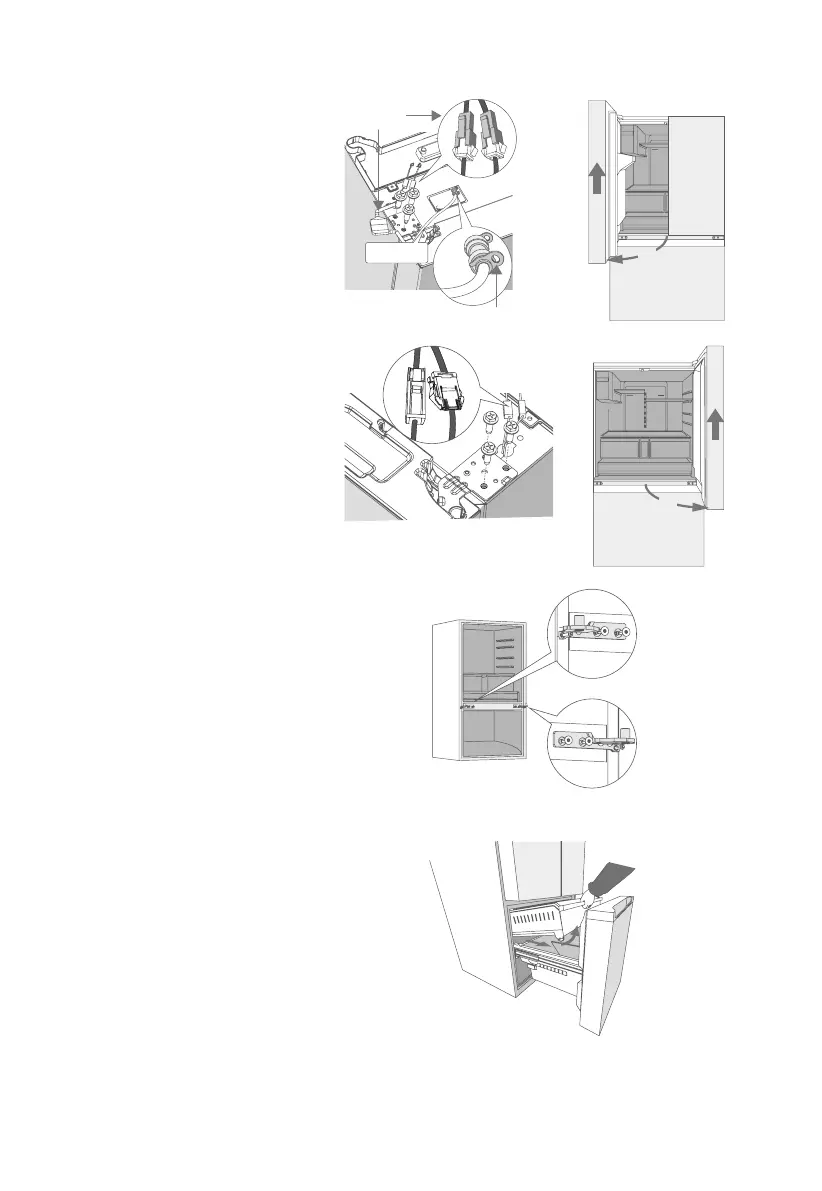

2. A. Remove the hinge cover and
disconnect the 3 harness quick
connectors.
B. Pull out the blue retaining clip
from the quick release one way
valve, remove the blue door water
line.
C. Remove the 3 screws and left
upper hinge from the product.
D. Open the left door 90°, lift it
up, then remove the door from the
product.
Harness quick
connector
Blue retaining clip
Water line
90°
3. A. Disconnect the 2 harness quick
connectors, and remove the 3 screws
and right upper hinge from the
product.
B. Open the right door 90°, lift it
up, then remove the door from the
product.
90°
4. Remove the middle hinge with allen
driver and phillips screwdriver from
the product. Note: When the width
of the door is less than 32 inches,
remove the middle hinge. When the
width of the door is more than 32
inches, don’t remove middle hinge.
• DISASSEMBLY OF FREEZER DRAWER:
1. Fully open the freezer door, take
out the upper drawer. Operating
instructions: Pull the drawer out for a
distance, and then rotate it upwards
to take it out.
