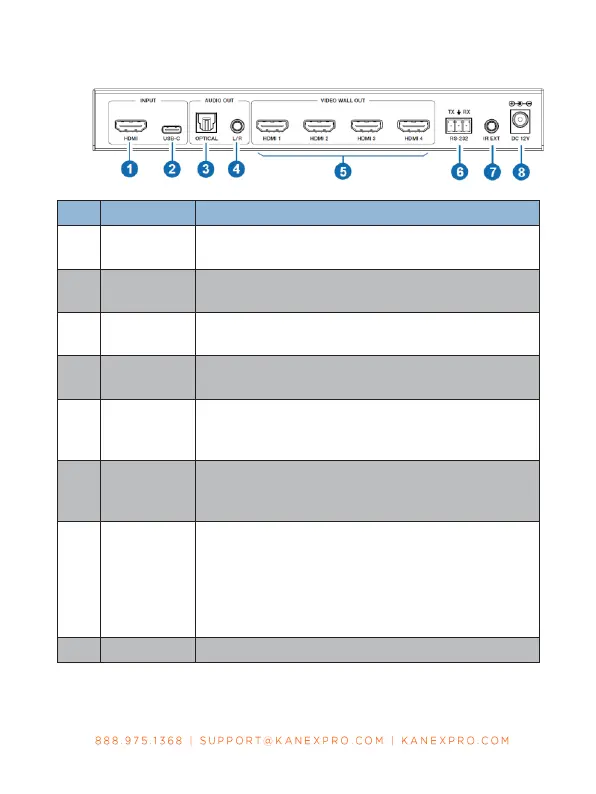

• Rear Panel
NO.
Name
Function Description
1
HDMI INPUT
HDMI signal input port, connected to an HDMI source
device.
2
USB-C INPUT
USB-C signal input port, connected to a USB-C source
device.
3
OPTICAL
AUDIO OUT
Optical audio output port, connected to an audio output
device such as an audio amplifier.
4
L/R
AUDIO OUT
Analog audio output port, connected to an audio output
device such as a speaker.
5
VIDEO
WALL OUT
(HDMI1~4)
HDMI signal output port, connected to TVs.
6
RS-232
3-pin phoenix connector, connected to a PC or control
system for serial port upgrade or RS-232 command
control.
7
IR EXT
IR signal receiving port, connected with 38KHz IR
Receiver cable.
If the IR signal receiving window of the unit is blocked
or the unit is installed in a closed area out of infrared
line of sight, the IR receiver cable can be inserted to
the “IR EXT” port to receive the IR remote signal.
8
DC 12V
Connect to 12V/1A power adapter.
