EN
1
2
3
6
5
7
8
10
6
13
4
9
7
8
910
11
12
15
18

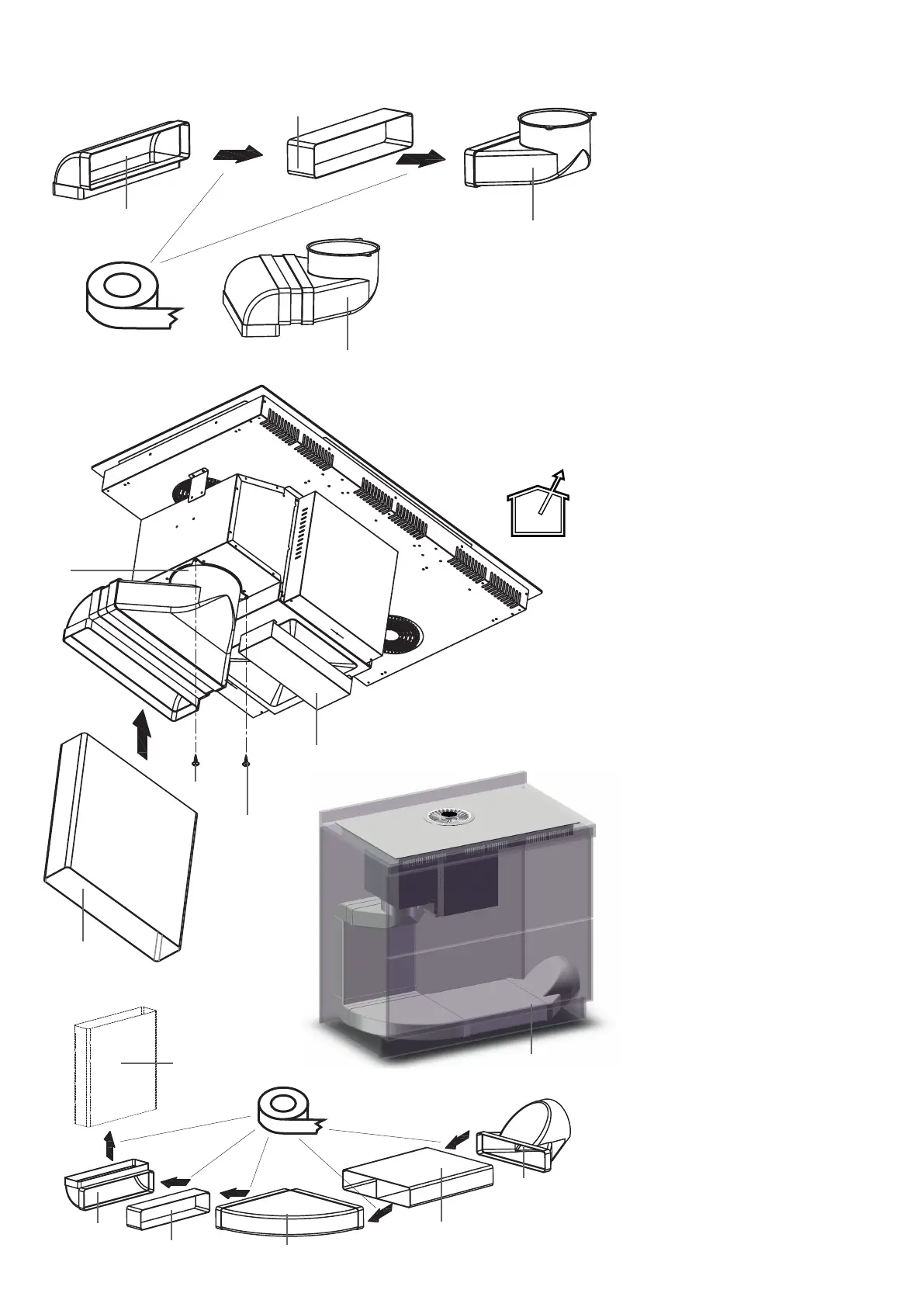

The first step is to connect parts 1,
2, 3
Then place the device in the
cabinet.
Cut the remaining straight pipe into
three sections of the corresponding
length (straight pipe 7, straight pipe
8, straight pipe 9.
Exhaust Air Installation Mode
Rectangular tube 2 (median
connection) must be sealed with
plastic adhesive tape to avoid air
leakage during use. You will have a
pipe as shown in Figure 4.
Connect straight pipe 7, vertical
elbow 90° 10, straight pipe 8,
square pipe 90°, horizontal elbow
11, straight pipe 9, to pipe 12.
Attach this structure to the hood
hole 13 according to the
instructions in the figures. At the
same time, plastic adhesive tape
should be used to seal the
connection points.
Then insert the assembled pipe into
the air outlet of the air cleaner 13
and secure with two screws 6.
After completing the installation of
the pipeline, according to Figure
15, connect the right panel of the
cabinet at the outlet of the pipeline
to the public chimney, providing a
gap of 205 mm in diameter.
Insert the grease tray 5 into the hole
at the bottom of the air cleaner.
