14
EN
Pic.A
Pic.B
Pic.C
Pic.D
INSTALLATION
Cooker hood Installation
Make sure there are no electrical
wires, gas, or water pipes in the drill-
ing area. Ensure that the wall is ver-
tically level and capable of bearing
the load. The maximum weight of
the device is 40 kg. Use the supplied
screws and wall plugs.The included
screws and wall plugs are suitable
for solid brick walls. Use appropriate
fasteners for other wall types, such
as drywall, aerated concrete, or
Poroton brick blocks.

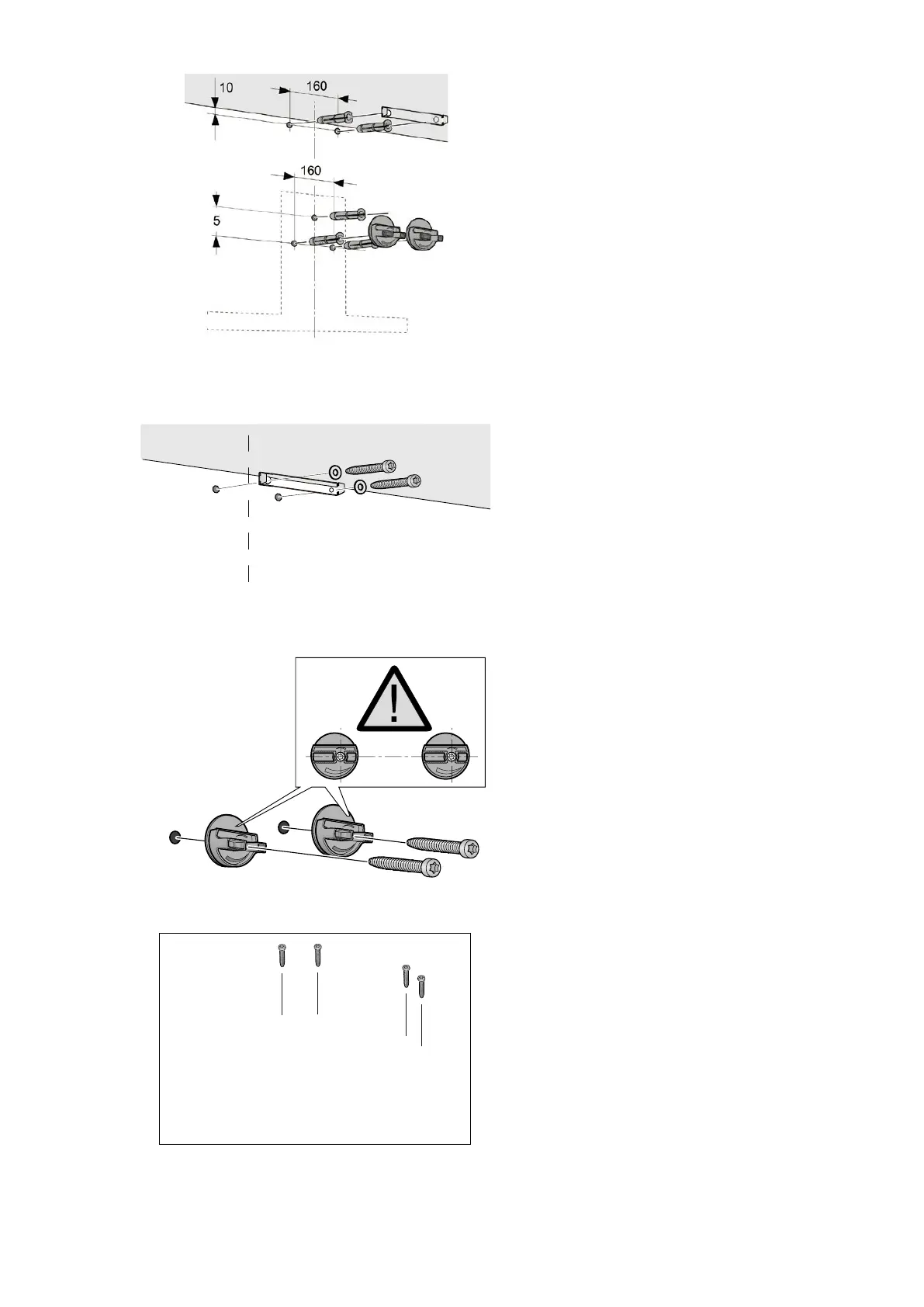

Wall Bracket Installation
• Draw a vertical line on the wall
from the ceiling to the lower edge
of the extractor hood (A).
•
Position the air purifier housing
symmetrically along the center-
line on the wall, ensuring a mini-
mum distance of 650 mm from the
heating plate. Align it horizontally
and mark the upper edge of the
back panel.
•
Hold the bracket horizontally
against the wall, symmetrically to
the vertical line.
• Mark the screw positions and the
outline of the mounting area as
shown in diagram A.
• Drill five holes at the marked loca-
tions using an 8 mm drill bit to a
depth of 50 mm.
Insert the wall
plugs.
•
Determine the desired height of
the telescopic pipe.
Attach the
chimney duct mounting bracket
(B) to the wall.
The bracket
positions are indicated in diagram
A.
• Secure the extractor hood mount-
ing clamps without fully tightening
the screws (C).
•
Attach the mounting bracket to
the extractor hood (D).
