NOTE:
1.Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
2.When activated carbon filter attached, the suction power will be lower.
ISLAND MODEL INSTALLATION

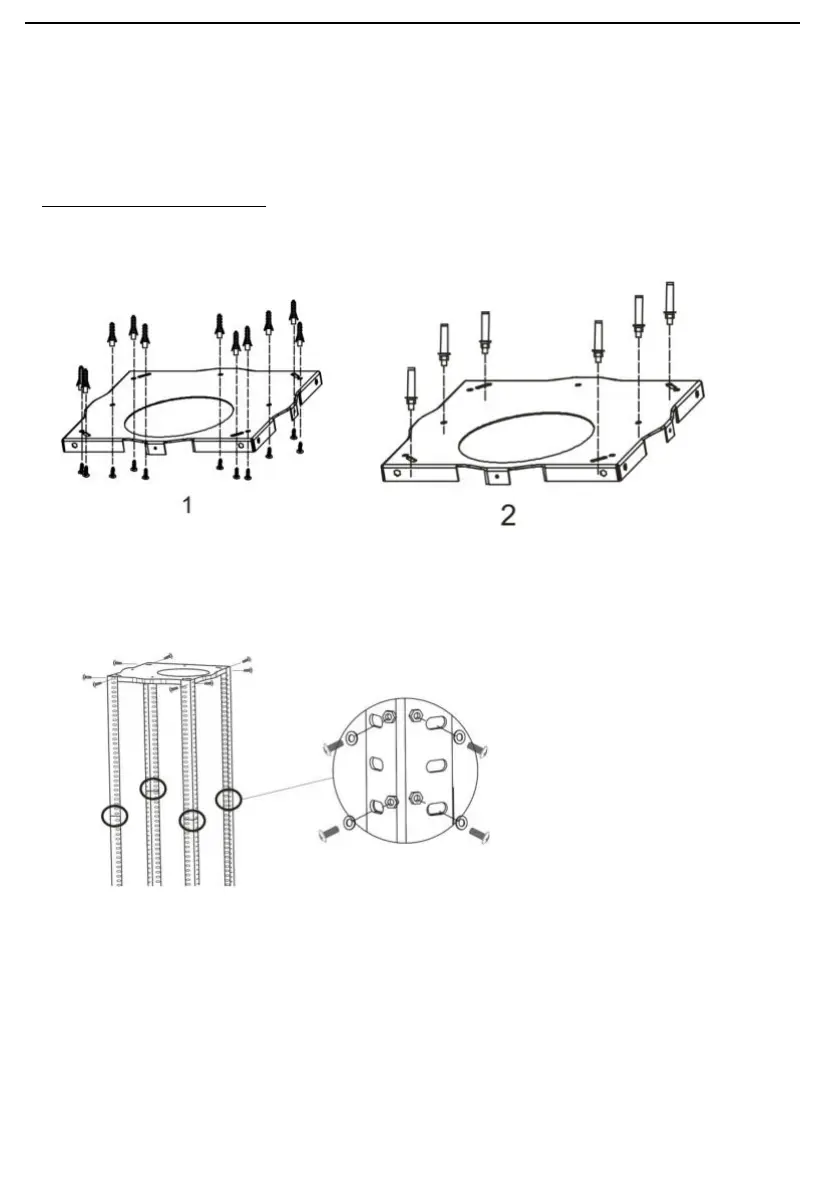

Position the hanging plate on the ceiling and then mark the position of the screw holes. The hanging plate should be
securely fixed to the ceiling.
3) 11×ST4 (30 mm)screws for wooden ceiling
4) 6×expansion bolts for cement ceiling
Fix the angle bars to the hanging plate, using the 8 x M5 screws.
Extend the angle bars to the required height and then fix them in position using 16×M5 screws and nuts with metal
washers.
IMPORTANT: The angle bars must have an overlap of AT LEAST 100 mm.
