It contains a list of CG OBJECTS with all control elements to operate the CG functionality.
The CHARACTER GENERATOR - CG enables you to insert editable real time graphics into your live PGM.
There are 3 types of CG objects that can be created within the Streamstar CG system:
1. Text CG - 5 layers of editable texts positioned over a graphic background file with transparency.
Each layer can be individually positioned and formatted to create a complex CG composite.
2. Crawl CG - animated text layer positioned over a graphic background file with transparency.
It can be formatted and looped to crawl across the screen in various directions and speeds.
3. Dynamic Timer/Score CG - a combination of editable and dynamic text layers, controlled by
a live controller. Score, timer and game period layers and a graphic background layer,
all individually formatted and positioned to create sophisticated live sports graphics CG Objects.
CMA (Content Management Area) - CG Menu Tab
CG LIST CONTENT - The CG LIST is accessed via the CG TAB in the left side menu of the CMA.
The TAB BAR on the top of the CG pane contains 6 TABs that provide access to the following:
A - CG DIRECTORY - select a directory containing the CG objects data to load into the CG List
B - OPEN CG DIRECTORY - open selected CG directory in Windows OS to manage its content
C - NEW TEXT - creates a new TEXT CG object in the CG List
D - NEW CRAWL - creates a new CRAWL CG object in the CG List
E - NEW TIMER SCORE - creates a new TIMER/SCORE CG object in the CG List
F - TIMING OPTIONS - access to Timing Options settings for the Timer/Score CG objects
Each CG object in the CG List contains the following control elements for that particular CG object:
1. THUMBNAIL - a small preview of the CG that also functions as a SWITCH to select the CG item
2. PREVIEW - play button to preview the CG animation inside the THUMBNAIL
3. EDIT CG NAME - button opens the CG NAME FIELD (3a) to allow typing/editing of its name
4. CG TYPE ICON - indicates the Type of CG Object in the CG LIST
Timer/Score CG Objects are visually dierentiated by a lighter background color
5. SETTINGS - access to the Settings Editor to setup the CG Object’s parameters
6. DUPLICATE - creates a duplicate of this CG Object in the list so variations can be made easily
7. SORTING - arrow buttons to move CG Objects in the CG List up/down to organize the CG List
8. DELETE - delete a CG Object from the CG List

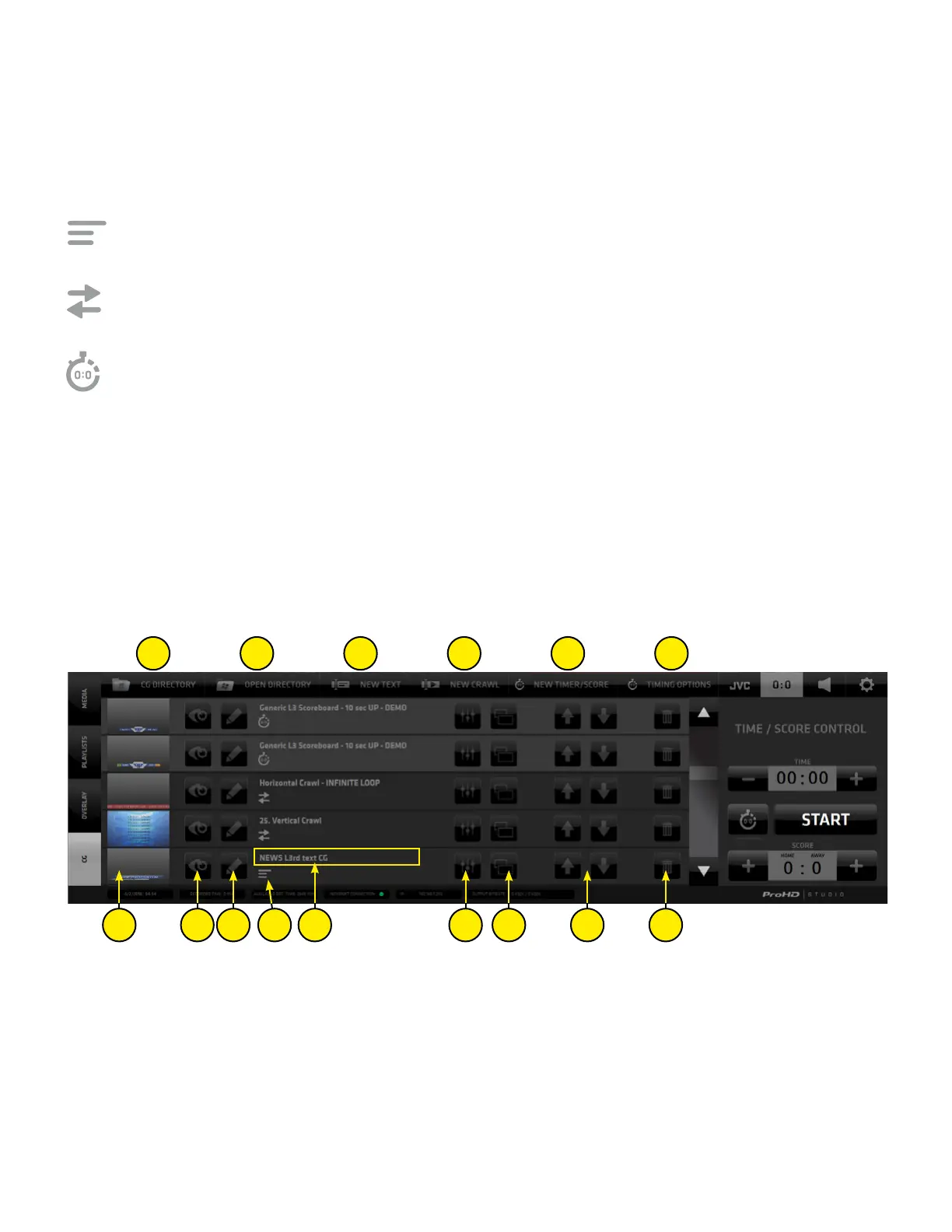

A
1 2 3 4 3a 5 6 7 8
B C D E F
