6 Installation
General information
Installation
In each bus indoor device with
colour display, there is a terminating
circuit board connected in the as-de-
livered status in the centre of the
connecting terminals TaM and TbM.
This circuit board is an RC element
which comprises a resistor with
100Ohm and a capacitor 1nF.
When looping through from one
bus indoor device to the next bus
indoor device in the installation, this
terminating circuit board must be
removed. If, however, bus distribu-
tors are used in the installation, or
if there is only 1 bus indoor device
with colour display in the line, the
terminating element remains in the
bus indoor device.

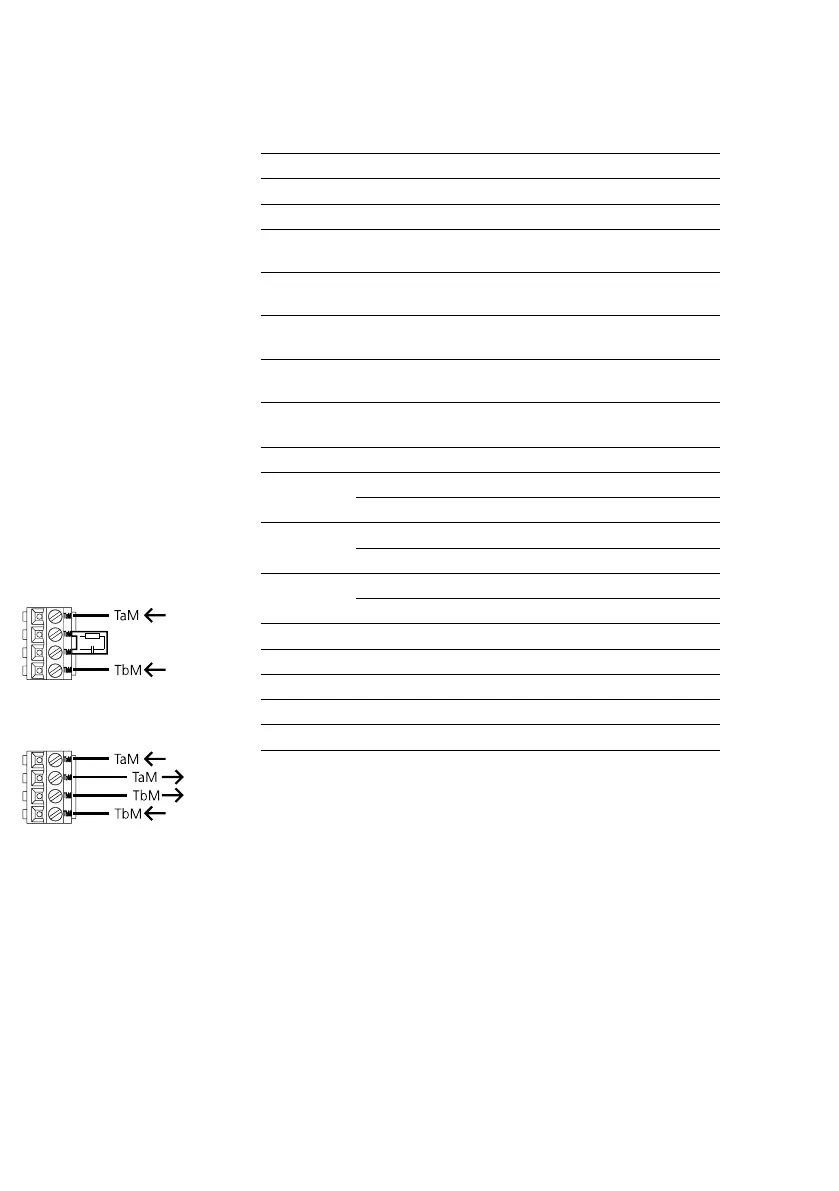

Terminal VIB150-…, BTSV/BTCV/
BFCV/BVPS/BVPC850-…
Connection for one bus indoor
device or the last bus indoor device
in the line.
RC element
Connection when looping through
from one bus indoor device to
another bus indoor device.
Cable laying
Only signals from the In-Home bus
may be transmitted via the laid
conductor material. No additional
transmission is possible, for instance
to PBX extensions of a telephone
system or an S0 bus (ISDN). The
camera branch and monitor branch
must be laid in a separate cable
and must not be installed inside the
same conduit. This can result in dis-
turbance to the picture composition.
Consumers Voltage Current
Door release 12 VAC appr. 600 mA
Camera heating 12 VAC 130 mA
Vario bus call button module
(BTM650-01 to -04)
12 VAC max. 20 mA
Steel button illumination 12 VAC
10–30 VDC
max. 3 mA
Classic button illumination CL …-01 12 VAC
10–30 VDC
max. 25 mA
max. 30 mA
Classic button illumination CL …-02 12 VAC
10–30 VDC
max. 5 mA
Models Terminal assignment Voltage Current
BVNG650-… TaK, TbK 29 VDC 1200 mA
TaM, TbM 29 VDC 1200 mA
BNG650-… Ta, Tb 27.5VDC 500 mA
b, c 12 VAC 1000 mA
NG602-… +, - 23.3VDC 300 mA
b, c 12 VAC 1600 mA
TR603-… b, c 12 VAC 1300 mA
TR602-… b, c 12 VAC 2500 mA
VNG602-… +M, -M 30 VDC 1100 mA
LNG600-… +, - 30 VDC 1100 mA
ANG600-… +, - 48 VDC 800 mA
Note
As in the as-delivered/de-energized
status, the contact position of the
bistable relay (contact S1/S1) cannot
be dened, the bus supply to the
device must be connected before-
hand to ensure that the bistable
relay functions correctly.
