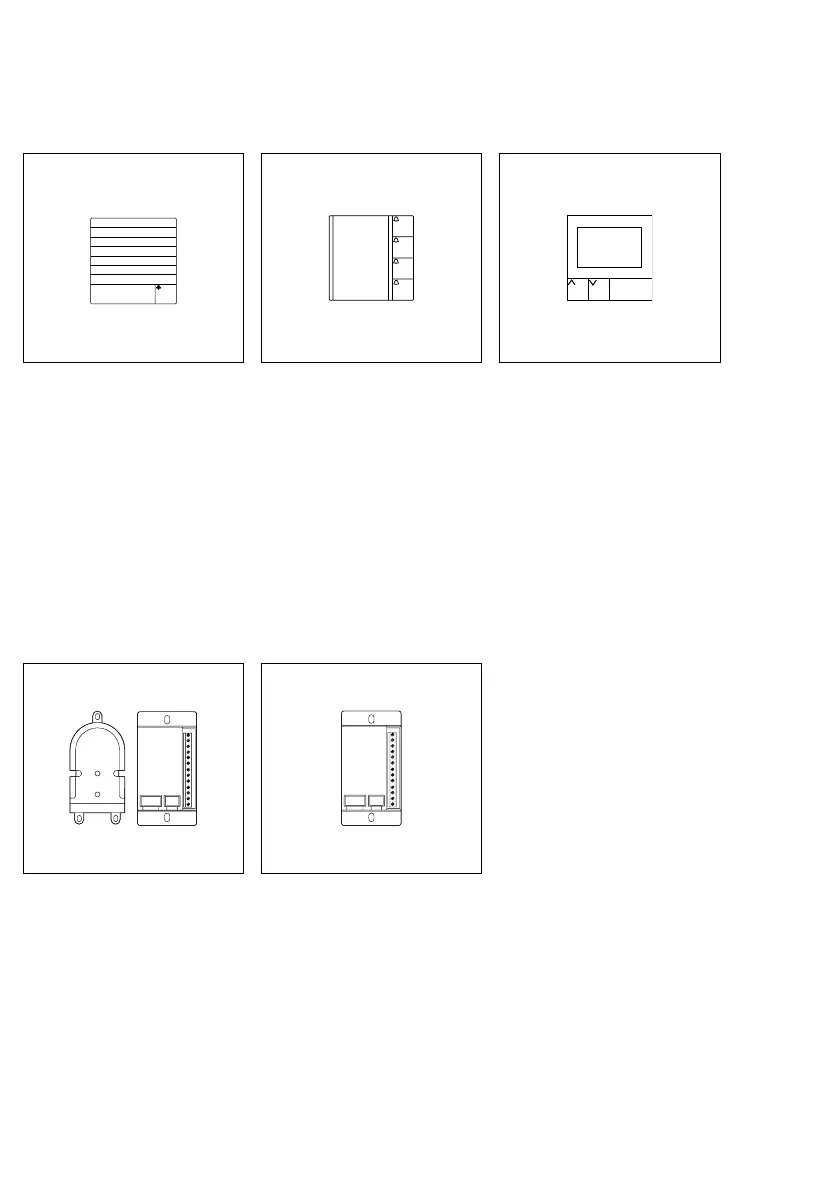

5 In-Home: Audio users
Door loudspeakers, call buttons
BTLM 650-04
Bus door loudspeaker module for
In-Home bus. Loudspeaker and
microphone integrated, illuminated
light button, integrated door release
contact (DR) Acoustic acknowl-
edgement on pressing a button,
can be activated if required with
the BPS650-… contact load max.
15VAC, 30VDC, 2A, switching
time DR xed at 3seconds. Acoustic
feedback when actuating the call
buttons.
BTM650-01 to 04
Bus call button modules for In-Home
bus 1–4 call buttons, integrated LED
lighting. Connection by means of
ribbon cable to the bus door loud-
speaker. Supply to the LED lighting
via terminal b and c with 12VAC,
current consumption 20mA per bus
call button module BTM650-…
BTLE 051-03
Bus custom-t door loudspeaker incl.
bus call button matrix for In-Home
bus. Integrated door release contact
(DR). Max. load 15VAC, 30VDC,
2A. Connection of existing call
buttons (self-cleaning) via bus
call button matrix BRMA050-…,
switching time DR xed at 3sec-
onds. For optimum mounting in
an existing on-site communication
compartment, universal mounting
adapter ZTL051-0 can be used.
BRMA 050-01
Bus call button matrix for the con-
nection of existing call buttons to
the custom-t door loudspeaker
BTLE050-…/ATLE670-…
Max. 160 call buttons can be con-
nected. However, a bus call button
matrix BRMA050-… is required
for each started group of 12call
buttons.
DRM 612-0
Display call module as an input
device with 4-line display for placing
door calls.
Indication of names in the display in
alphabetical order.
The DRM612-… can also be used in
combination with the COM611-…
in order to display the input via the
COM611-…
