Switch-on delay
Switch-off delay
Staircase lighting
time switch
On
Off
Button actuation
Switching state
1. SWITCHING AND
PRESSING
Switching actuators contain a re-
lay for switching loads such as
lamps on and off. Switching actu-
ators are equally suited to switch-
ing or pressing functions and can
therefore be used as push-button
actuators too. The operating mode
is set during the commissioning
process, e. g. using the operating
mode switch.
An extremely wide range of loads
can be connected to switching ac-
tuators and push-button actuators,
Switching, pressing and
dimming are the basic functions
in every electrical installation.
SWITCHING, PRESSING
AND DIMMING
as long as the technical data of both
the actuator and the load is com-
patible, e. g. light bulbs, HV or LV
halogen lamps, fluorescent lamps,
compact fluorescent lamps, ener-
gy-saving lamps, LED lamps and
fan motors.
The Switching or Pressing oper-
ating mode is set directly on the
device. In the PC position, the op-
erating mode is predefined with the
eNet server.
Switching function
During switching operations, the
actuator is operated in a bi-stable
manner: A switch-on signal moves
the relay permanently into the ac-
tive state, while a switch-off signal
moves the relay permanently into
the passive state.
Push-button function
The Pressing operating mode is
suitable for switching impulse
switches or signal generators.
During this process, the switch-
ing relay only remains in the ac-
tive state for as long as the sensor
element is being pressed. Once
the pressing has stopped – after
60 seconds at the latest – the relay
reverts to the passive state.
In both operating modes, the actu-
ator can operate as an N/O contact
or as an N/C contact.
Additional functions
The eNet server can also be used
to set time functions such as
switch-on or switch-off delays,
which postpone the switching
reaction, or timers, which auto-
matically switch back to the pas-
sive state once the set time has
elapsed.
2. DIMMING
Dimming devices are used to ad-
just the brightness of electric
lights. Depending on the light type,
the eNet system includes univer-
sal dimmers or, for lamps with an

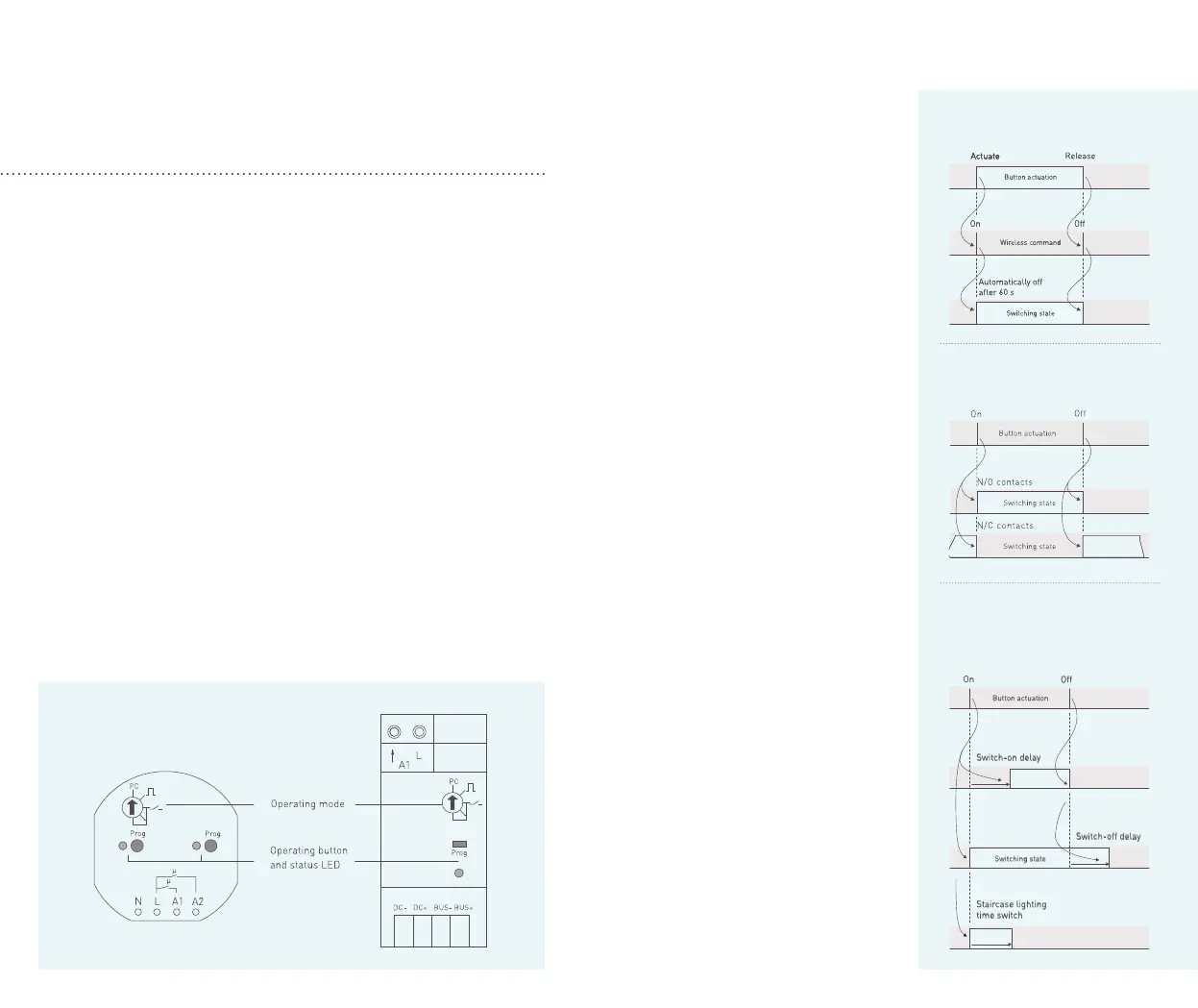

Switching actuators – examples
Switching actuator with push-
button function
Switching with switch-on delay,
switch-off delay or staircase light-
ing time switching function
N/O contacts, N/C contacts
6766 eNet _ Switching, pressing and dimming
