ā 23 ā

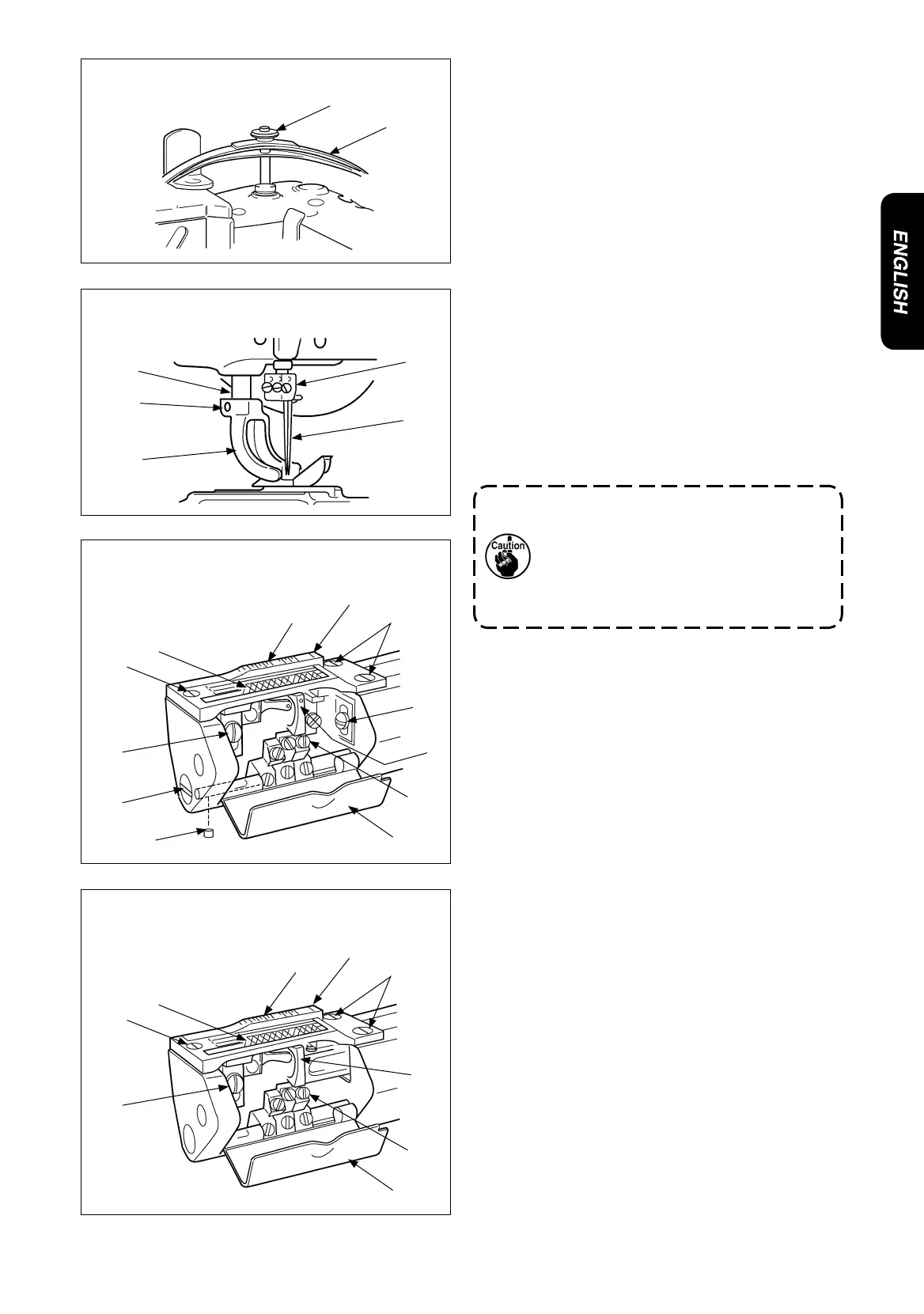

The disassembly procedure mentioned
above mainly describes about the mecha-
nism with differential feed.
For the mechanism without differential
feed, differential feed
@6
and setscrew
@5
are not provided.
6) Loosen the pressure regulating nut
!3
and remove
the pressure regulating plate spring assembly
!4
.
7) Loosen each setscrew
!5
that securing corresponding
needles and remove three of each needle
!6
.
8) Loosen the setscrew
!7
securing the presser yoke
and remove the presser yoke
!9
after lifting the
presser shaft
!8
.
9) Loosen the setscrew
@0
and remove the setscrew
@1
securing the cover.
Removal of the setscrew allows you to remove the
looper cover
@2
and spring stud.
10) Loosen three setscrews
@3
securing the throat plate
and remove the throat plate
@4
.
11) Loosen the setscrew
@5
and remove the differential
feed dog
@6
.
12) Loosen the setscrew
@7
and remove the main feed
dog
@8
.
13) Loosen the setscrews
3
securing the loopers
@9
and
remove the loopers
@9
.
Pressure regulating plate
spring and its related parts
Left side of the machine head
Gauge components
(Mechanism with differential feed)
Gauge components
(Mechanism without differential feed)
!3
!4
!5
!6
!8
!7
!9
@6
@8
@4
@7
@1
3
@9
@3
@4
@6
@8
@3
@7
@2
@0
@1
3
@9
@3
@4
@5
